I have never posted on here. So hopefully I am in the correct spot. I have an AC 8050 with FWD that we are putting a westendorf WL77 loader on. The loader has come with a valve for joystick control. We would like to tap into the hydraulics after the pump if possible for hydraulic supply to the loader valve to leave the remotes freed up. Is this possible with this tractor, and which lines on the tractor should be tee'd into?


Above are some pictures of the valve. Hopefully they work... It has three ports on the supply side of the valve that will need to connect to the 8050 (in, out, and signal)

Thanks,

Daniel
Back to Top
Sponsored Links


Back to Top
8070nc View Drop Down
Orange Level Access
Orange Level Access


Joined: 21 Mar 2019
Location: North Carolina
Points: 505 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 8070nc Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:37pm
I was hoping someone who had done it would chime in. Im gonna look tomorrow to figure out how id start to do it because i have one i want to do. Where to put the return oil is the biggest question. Ill tell you what I think and
maybe some one will have more ideas. It can be done but I dont think it will be especially easy course thats a good reason to do it
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20485 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:55pm
It would need to be a "Power Beyond" closed center valve capable of 23 GPM going thru it. Main hyd pump flow to the inlet and the outlet to the valves on the tractor. Tee the signal line to the main pump compensator valve.
Back to Top
df124a View Drop Down
Bronze Level
Bronze Level


Joined: 29 Jan 2024
Location: Princeville, IL
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote df124a Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2024 at 3:00pm
Thanks for the response.

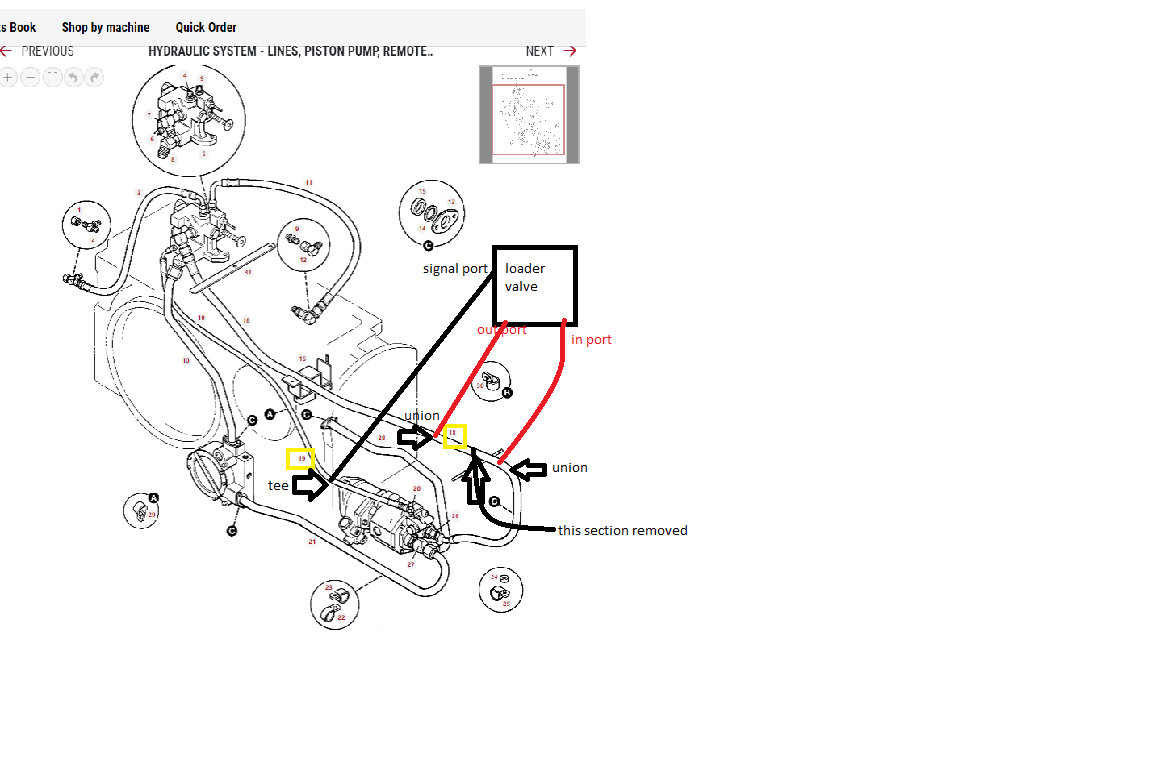

If I am understanding correctly you are saying to run the loader valve in circuit between the pump and valve stack on line 18 (on the diagram below). Using the "IN & OUT" ports on the loader valve.
