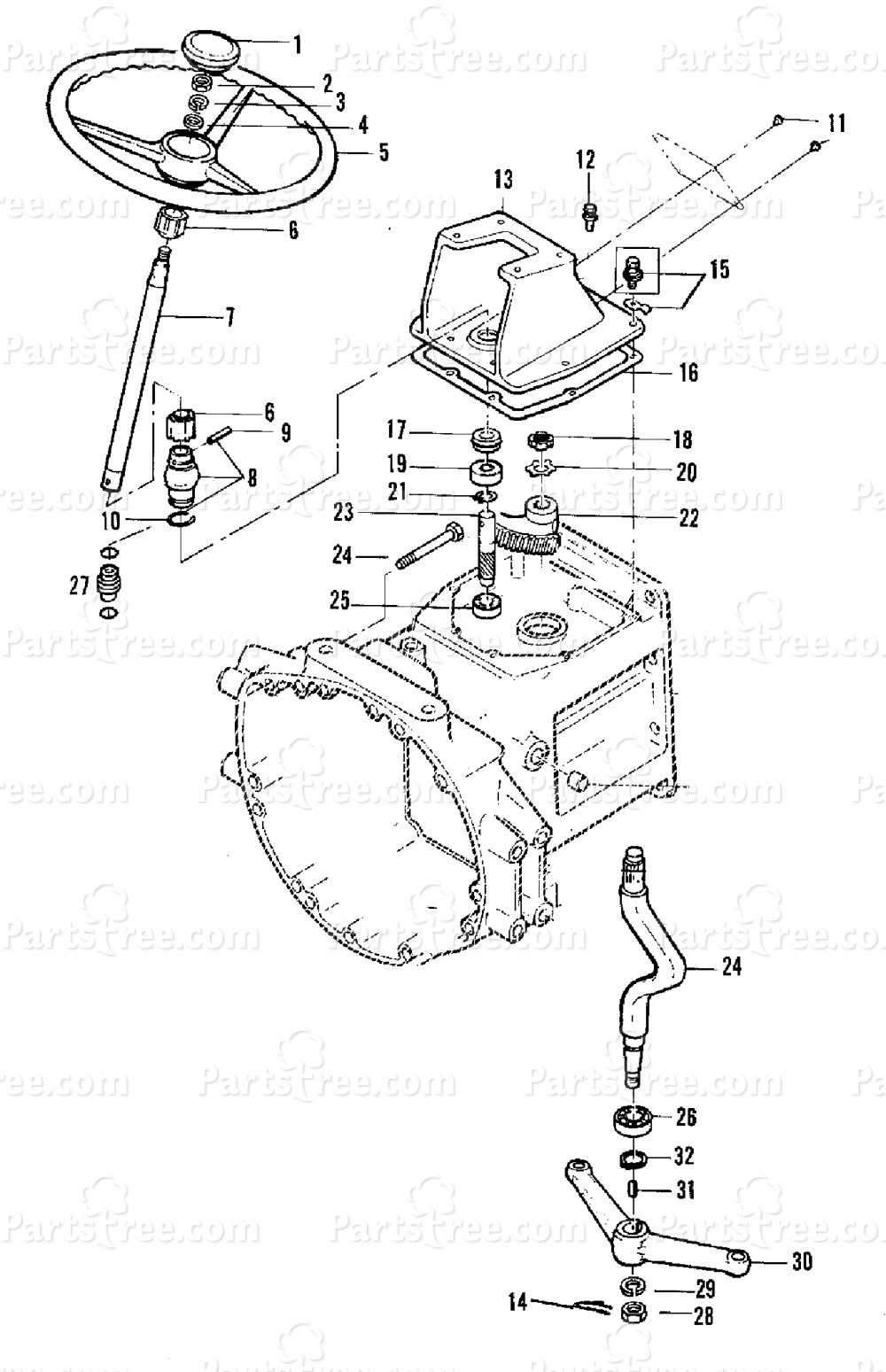

I don't suppose anybody has a steering pinion for an allis chalmers 5020.  Agco part# 72098090.  number 23 on the diagram.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Sponsored Links


Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Feb 2017 at 3:13pm
Forgot to mention it's a 4x4
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
lowell66dart View Drop Down
Orange Level
Orange Level


Joined: 10 Jul 2013
Location: Paulina La.
Points: 964 		Post Options Post Options   Thanks (0) Thanks(0)   Quote lowell66dart Quote  Post ReplyReply Direct Link To This Post Posted: 27 Feb 2017 at 7:01pm
Wenger's shows out of stock now but may be worth calling.
AC 6080 (8030,7060,200,175,D-17HC, 6040,160,6140 all gone) Farmall 1066 & 656 Hi-Clear (for sale), White 2-62 High Clearance, JD 4255 Hi Clear.
Back to Top
GARY(OH/IN) View Drop Down
Orange Level
Orange Level


Joined: 19 May 2010
Location: Findlay,Ohio
Points: 917 		Post Options Post Options   Thanks (0) Thanks(0)   Quote GARY(OH/IN) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Feb 2017 at 9:20pm
That looks very similar to the 5015 steering assembly if that helps any.
Back to Top
allis1221G View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Apr 2013
Location: Hudsonville
Points: 638 		Post Options Post Options   Thanks (0) Thanks(0)   Quote allis1221G Quote  Post ReplyReply Direct Link To This Post Posted: 27 Feb 2017 at 9:31pm
I have one if you have no other luck.someone called about buying it but not heard back.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Mar 2017 at 9:29am
it was a few months ago I noticed my steering wheel was raising up when I turned right.  It would raise up so high it the pinion would pop out of the steering gear.  when I took it apart. (which is a pain in the ....)  I noticed the snap ring broke allowing the bearing to slide down the pinion.  the pinion is a bit chewed up and the groove were the snap ring went wasn't much of a groove any more.  I had a fella who was gonna braze a ring on it, but I didn't want to take a chance of taking the temper out of the pinion and it brake.

I took a small file and teadesly filed the groove for the snap ring until it would hold a smaller snap ring, put a washer above it, new bearing greased every thing and put it back together. so far it has held up.  Thank you for the replies.  I have wengers looking for one just in case.  Allis 1221g, I would be interested in buying it if your still looking to sell it.  I don't know how long mine will last and I can't be with out the tractor, especially with planting season coming up.  She's the only machine I have.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
GARY(OH/IN) View Drop Down
Orange Level
Orange Level


Joined: 19 May 2010
Location: Findlay,Ohio
Points: 917 		Post Options Post Options   Thanks (0) Thanks(0)   Quote GARY(OH/IN) Quote  Post ReplyReply Direct Link To This Post Posted: 01 Mar 2017 at 11:33pm
Yes, that may be the hardest thing to repair on that tractor.
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 2960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2017 at 2:50am
I have a couple AC 5020 parts tractors.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2017 at 6:25am
If anybody has one for sale I'd be interested.  I don't know how long my repair will last and I'm not planning on getting rid of the allis any time soon.lol
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 2960 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2017 at 7:40am
Originally posted by dt1050 dt1050 wrote:

If anybody has one for sale I'd be interested.  I don't know how long my repair will last and I'm not planning on getting rid of the allis any time soon.lol


I'll sell parts off the 5020 and I also have a 4WD front end I took off a MF 220 should be the same as the front on your tractor,it had problems with the left front spindle.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2017 at 7:53am
pm sent.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Mar 2017 at 4:04pm
After getting the RIGHT parts! the 5020 is back up and running.  apparently the previous owner had issues with the steering pinion and must not of found the part so he engineered it!

the pinion in my tractor was 1/4 inch less in diameter and had a bushing manufactured to fit between the pinion and the bearing.  the steering shaft was also milled down to accept a smaller u joint!

I was able to get the original parts from Gary and now the steering is tight with no play.  Sure hope there ain't a lot of them Frankenstein parts in/on this machine.  Thanks for all the help dt...
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Sdwight View Drop Down
Bronze Level
Bronze Level


Joined: 09 May 2017
Location: Michigan
Points: 6 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sdwight Quote  Post ReplyReply Direct Link To This Post Posted: 18 May 2017 at 4:10pm
I'm also interested in one for my 5030. Posted a few days ago. I don't know how this works but I let me know what I need to do to contact you directly
