AC Weights and part numbers
 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 5.00  Topic Search Topic Search  Topic Options Topic Options
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Topic: AC Weights and part numbers
    Posted: 24 Dec 2014 at 6:07pm

http://brianahart.net/weights.htm


Edited by CTuckerNWIL - 24 Dec 2014 at 6:08pm
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Sponsored Links


Back to Top
B26240 View Drop Down
Orange Level
Orange Level


Joined: 21 Nov 2009
Location: mn
Points: 3860 		Post Options Post Options   Thanks (0) Thanks(0)   Quote B26240 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2014 at 12:44pm
Wow didn't know there was so many look-alike weights for WD & then to fit B's I'll have to go check my pile of weights to see if they are all the same numbers or if I might have some for B's Thanks for posting this Charlie !!
Back to Top
orange View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Apr 2011
Location: watertown s d
Points: 140 		Post Options Post Options   Thanks (0) Thanks(0)   Quote orange Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2015 at 7:33pm
Have a weight with a # 406282 on it fits on a wd Oxnard ?

                         thanks Terry
Back to Top
alliskid13 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 18 Mar 2015
Location: Missouri
Points: 15 		Post Options Post Options   Thanks (0) Thanks(0)   Quote alliskid13 Quote  Post ReplyReply Direct Link To This Post Posted: 20 Mar 2015 at 7:31am
Had no idea there were so many kinds of weights. I have a pair on my WD45 off of the A and B Deere's
Back to Top
Holmes View Drop Down
Silver Level
Silver Level


Joined: 13 Dec 2009
Points: 56 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Holmes Quote  Post ReplyReply Direct Link To This Post Posted: 13 Apr 2015 at 2:20pm
Is there some place that has the # for weights? Will I find it in the parts books. Trying to get things all written down in one place.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 2015 at 7:53am
Click on the live link in the original post!
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Holmes View Drop Down
Silver Level
Silver Level


Joined: 13 Dec 2009
Points: 56 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Holmes Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 2015 at 3:42pm
Thank you for all the help on numbers on AC weights. You guys are great.
Back to Top
mcm View Drop Down
Bronze Level
Bronze Level


Joined: 28 Jun 2014
Location: Iowa
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mcm Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2015 at 3:37pm
Engine weight question?
I have a 1948 B. Today I purchased a pair of engine weights at a farm auction that I believe to fit a B or C.
Do I need a sleeve around the bolt in 2 of the holes?
and
Does a bevel indicate an older weight??? and does the bevel go up or down?

Thanks, MCM
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2015 at 4:49pm
I believe the bevel was clearance for the B steering arm, so it would go on the bottom on the left side.
 I don't think you can turn the weight upside down and still bolt it on????


Edited by CTuckerNWIL - 03 May 2015 at 4:50pm
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
mcm View Drop Down
Bronze Level
Bronze Level


Joined: 28 Jun 2014
Location: Iowa
Points: 12 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mcm Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2015 at 5:40pm
Thanks, that makes sense. None of the AC experts at the auction could help, never having seen a set before.  I've not had a chance to jockey them into position yet. Had my workout for the day just carrying them to the truck.  MCM
Back to Top
JM View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: United States
Points: 379 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JM Quote  Post ReplyReply Direct Link To This Post Posted: 16 May 2015 at 8:42pm
Will WD wts fit the styled WC centers? I did not see any listed for the WC.
Back to Top
Roger Nolin View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2009
Location: Monroe Iowa
Points: 189 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Nolin Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jul 2015 at 8:53pm
yes, they should. I have a pair of F&H weights on my WD and another set on my 42 WC cast center
Back to Top
Jason(OH) View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Sep 2009
Location: Jeromesville, O
Points: 188 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jason(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Aug 2015 at 6:16pm
Will the WD/WD45 front donut weight fit on the inside of the rim? Is the center hole large enough to go over the wheel hub?
Back to Top
Dana(Iowa) View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Aug 2010
Location: Central Iowa
Points: 52 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dana(Iowa) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2015 at 12:38pm
I have a set of engine weights on my C.  A bolt is used on the front (If I recall correctly, it threads into the front plate and the weight slides over it) and a bolt goes into the side of the bell-housing which effectively locks the weight onto the engine.

Originally posted by mcm mcm wrote:

Thanks, that makes sense. None of the AC experts at the auction could help, never having seen a set before.  I've not had a chance to jockey them into position yet. Had my workout for the day just carrying them to the truck.  MCM
1957 D-14 with loader

1947 Model C (restored)

1947 Model C (unrestored) SOLD!

1972 220
Back to Top
Ken in Texas View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Henderson, TX
Points: 5919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ken in Texas Quote  Post ReplyReply Direct Link To This Post Posted: 21 Aug 2016 at 11:32am
The correct front B/C side weight front mount is a bolt with a bushing that fits the hole in the weight. A stack of about 10 Metric flat washers with a 3/8 hole makes a good bushing. OD is near perfect

Edited by Ken in Texas - 11 Aug 2018 at 10:08pm
Back to Top
housemover View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 01 May 2012
Location: Belleville, Ks
Points: 103 		Post Options Post Options   Thanks (0) Thanks(0)   Quote housemover Quote  Post ReplyReply Direct Link To This Post Posted: 20 Oct 2017 at 1:09am

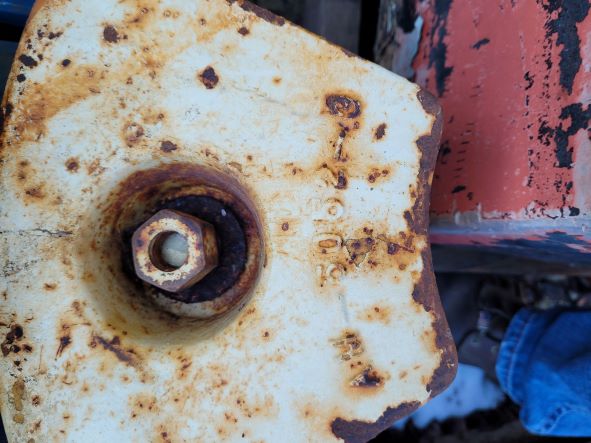

Does anyone know why the change in pie weights from D-17 I &II to D-17 III & IV etc.   I'm starting to wonder if it was function or cosmetic!!    And has anyone ever Tried to stack the pie weights like the older WD weights'   Also many, many early D-17's used the flat WD weights in the Midwest in my childhood.   Thanks " Housemover"Confused
Back to Top
dozerdan View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 Aug 2018
Location: portland or
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dozerdan Quote  Post ReplyReply Direct Link To This Post Posted: 11 Aug 2018 at 8:39pm
Does any one know the aprox weight of a AC Mod M crawler motor ? Getting one shipped from NY to Oregon need shipping weight ...
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2019 at 8:57am
Great job on this slowely becoming lost information, thanks fellas
Back to Top
Sunburn View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Feb 2019
Location: Georgia
Points: 13 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sunburn Quote  Post ReplyReply Direct Link To This Post Posted: 12 Feb 2019 at 2:24pm
Greetings! I'm new to this forum. My dad bought a WD in 1954 and I pretty much grew up riding that tractor. Never got over the fond memories associated with that tractor. I have a set of rear weights off a WD in my barn. Does anyone know the best way to sell them and approximately what they are worth?
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 51680 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2019 at 4:48am
Put them on the classifieds here, or on CL, and provide a link.  as to value, here in md, about $150 a set...Wink
Back to Top
Sunburn View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Feb 2019
Location: Georgia
Points: 13 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sunburn Quote  Post ReplyReply Direct Link To This Post Posted: 19 Feb 2019 at 9:33am
THANK YOU!
Back to Top
Sunburn View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Feb 2019
Location: Georgia
Points: 13 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sunburn Quote  Post ReplyReply Direct Link To This Post Posted: 19 Feb 2019 at 4:27pm
Wow! Thanks! The ones I have look like the ones for a WD45. Part #AM2795-10
Thanks again



1
Back to Top
RPCV93 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 Jun 2022
Location: Belleville, Ill
Points: 1 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RPCV93 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jun 2022 at 12:00pm
good pictures and info, thanks
1963 D15 series II - restored
1966 D15 series II - original
1974 185 Crop Hustler
2008 B7800 Kubota
2008 T1670 Kubota
2019 G2120 Kubota
Back to Top
ChrisS View Drop Down
Bronze Level
Bronze Level


Joined: 10 Mar 2016
Location: St Marks, KS
Points: 63 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ChrisS Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 3:51pm
I see in the link there are sectional weights shown for a D19/190 with the casting #  AM 5052-2. I found some (12ea) sectional weights that look identical but have the casting # AM 5052-3. I have a few questions.
1. What the difference between a -2 and -3?
2. What do they weigh?
3. How many does it take to go around the rim?
4. What are they worth?

Thanx, Chris
Back to Top
Kip-Utah View Drop Down
Orange Level
Orange Level
Avatar

Joined: 14 Sep 2009
Location: Southern Utah
Points: 872 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kip-Utah Quote  Post ReplyReply Direct Link To This Post Posted: 02 Aug 2023 at 7:05am
It’s been a LONG time since I put the engine weights on my C and another set on Dad’s B. But I remember using a carriage bolt & a short piece of 1/2” pipe for the bushing on the front mounts. Kip
HANSEN'S OLD ORANGE IRON. Showing, Pulling, & Going!!
Back to Top
Simon2 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Nov 2022
Location: Wisconsin
Points: 20 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Simon2 Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2024 at 10:40pm

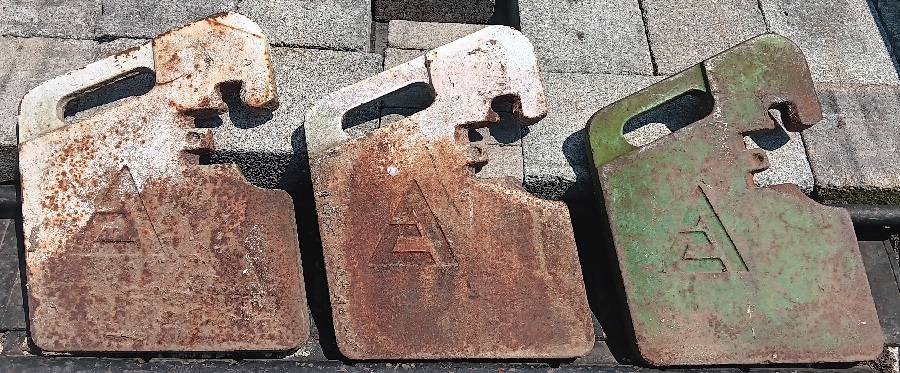

Anyone making repo D series front mounting bracket for the flat type stack weights?
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 2916 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2024 at 6:39am
DJ's tractor parts has the D series mounting brackets and J hooks. I bouhgt a set last year. They were good quality.
