 Topic: Ac spring tooth or coil tine harrow
Posted: 20 May 2023 at 9:44pm |
|
Anyone have one and where did you find teeth for it? Mine has a couple wraps of wire around the bar then extends down to the ground. How long were the teeth when new? Mine is well worn and want to do some work on it.
Edited by im4racin - 20 May 2023 at 9:54pm
|
 |
|
Sponsored Links
|
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2154
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 May 2023 at 8:07am |
I have this spring tooth that is mounted on an Allis snap coupler tool bar. Asking $100 for it. Located outside Eagle Nebraska. PM or call Dave cell 402-540-5987 with questions. Was used with a WD for garden plots. Also have some extra teeth I would sell separately. Dave
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1022
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 May 2023 at 10:05am |
|
Thats entirely different than what i have. I think mine was made by kovar mfg in Minnesota
|
|
Dave (NE)
Orange Level
Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2154
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 May 2023 at 11:15am |
|
Yeah, this is a farmer put together one. Don't know the make of the spring tooth section, but the tool bar came from an Allis cultivator. It was the rear mount section of a front mount cultivator.
|
|
Do not argue with an idiot. He will drag you down to his level and beat you with experience. Mark Twain.
|
|
guru4hire
Bronze Level
Joined: 01 Jun 2025
Location: Michigan
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2025 at 6:31pm |
|

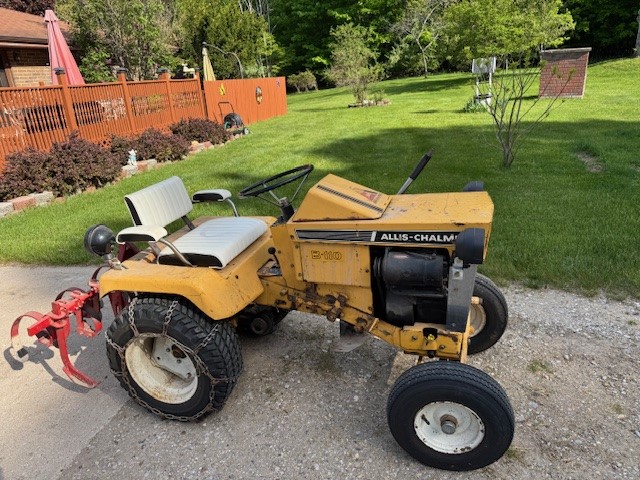

I have a factory made complete 7 spring tine harrow with guide feet. Seems to be a very rare item. I can provide pics as examples for making parts. Is attached to AC B110 1968 model.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8649
|
Post Options
Thanks(0)
Quote Reply
Posted: Yesterday at 8:34am |
Welcome to te forum. From what you’re describing, you have a garden tractor cultivator. The ones above are on farm tractor. Are you trying to sell yours.
|
|
Ray54
Orange Level Access
Joined: 22 Nov 2009
Location: Paso Robles, Ca
Points: 4693
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 hours 8 minutes ago at 12:00pm |
 im4racin wrote:
Anyone have one and where did you find teeth for it? Mine has a couple wraps of wire around the bar then extends down to the ground. How long were the teeth when new? Mine is well worn and want to do some work on it. |
Late to the party again, just like I was making my cultivator and harrow work better. Mine is a early Glencoe, so trash clearance is not great. The trash would flow thru cultivator only to plug the harrow. Harrow teeth are about 12 inches. Mine was warn to 6 to 8 inches when I bought it. So put new teeth on without much help. The secret turned out to be taking the push down springs off the harrow. There is enough weight to make the harrow a good job. But having more up and down movement trash flows thru much better.
|
|
ac160
Silver Level
Joined: 02 Dec 2010
Points: 400
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 hours 55 minutes ago at 3:13pm |

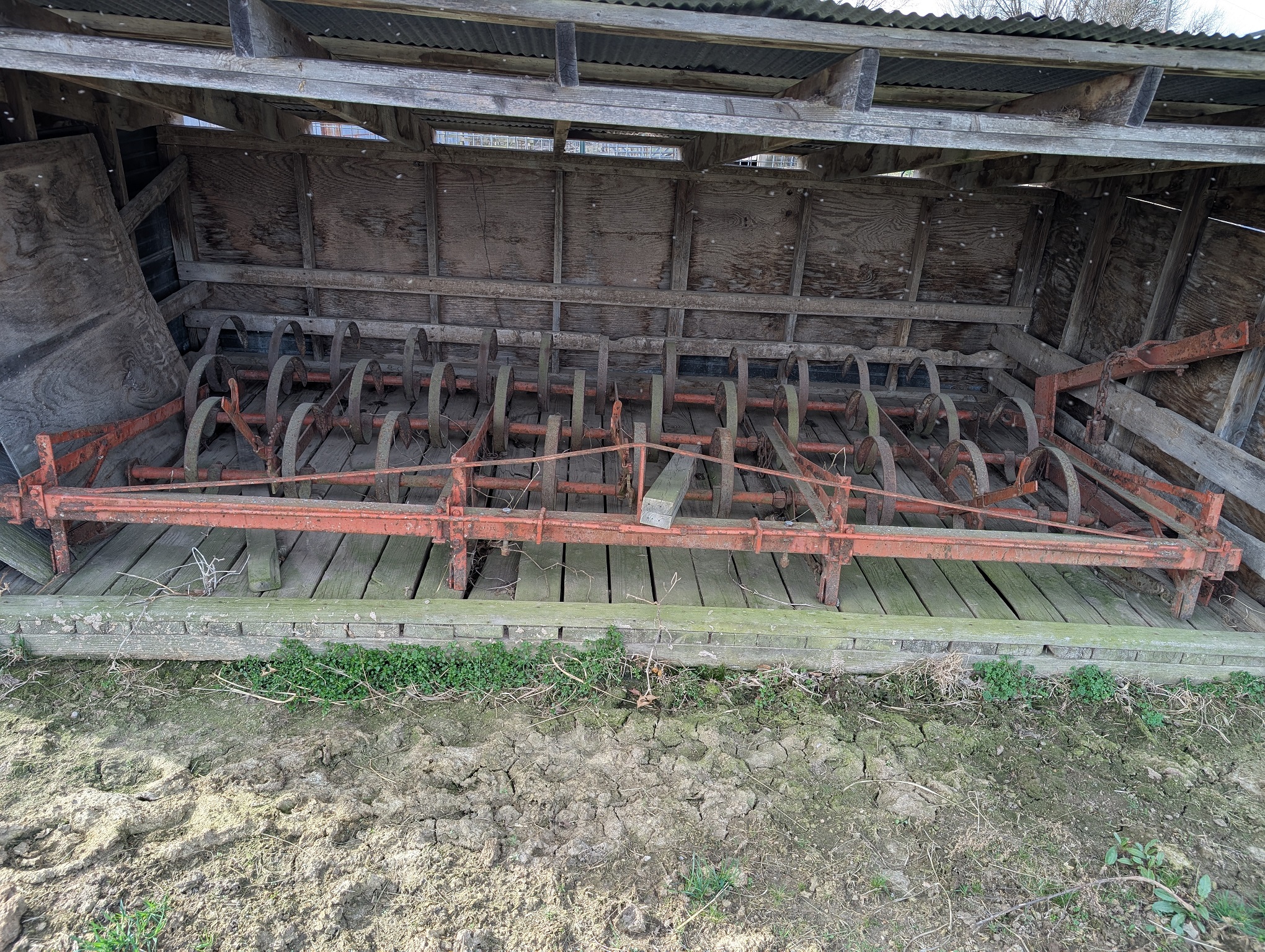

Is this the kind of harrow you are talking about?
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1022
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 hours 57 minutes ago at 6:11pm |
|

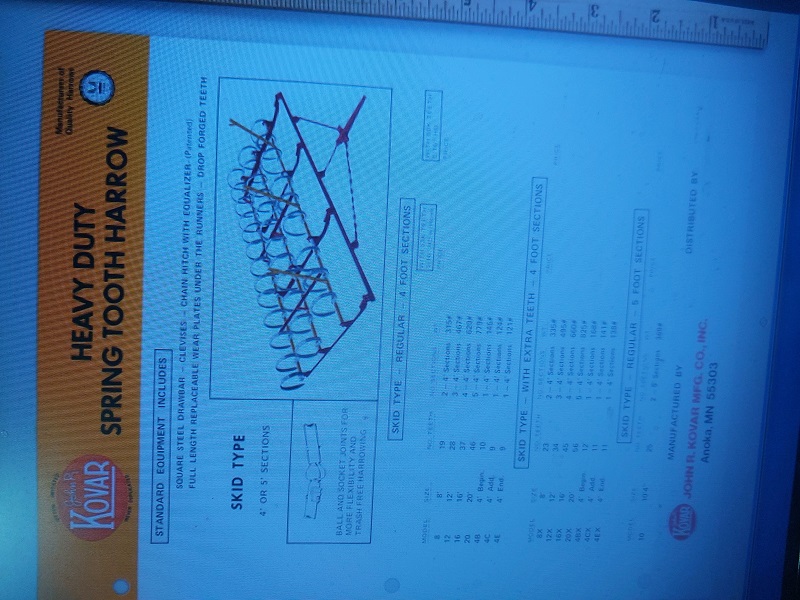

No. That’s a cultivator. I have a spring tooth harrow. Look up kover harrow. That will get you close but this I’d way older
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4987
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 hours 28 minutes ago at 6:40pm |
im4racin wrote:
No. That’s a cultivator. I have a spring tooth harrow. Look up kover harrow. That will get you close but this I’d way older |
Why don't you show us a picture of what you are needing parts for? What AC160 posted a picture of IS A SPRING TOOTH HARROW. whatever you have, you may call it whatever you like, but to get the correct parts it help to use the correct name given by the manufacturer.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3828
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 hours 18 minutes ago at 7:50pm |
|
AC160,
What brand and model is that? I have one similar set up for 3pt
|
|
guru4hire
Bronze Level
Joined: 01 Jun 2025
Location: Michigan
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 hours 53 minutes ago at 8:15pm |
|
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1022
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 hours 28 minutes ago at 9:40pm |
|
If it wasn’t so difficult to post pictures I would. Apparently I have odd ac equipment.
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1336
|
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 3 minutes ago at 4:05am |
Edited by Kenny L. - 7 hours 3 minutes ago at 4:05am
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1336
|
Post Options
Thanks(0)
Quote Reply
Posted: 7 hours 1 minutes ago at 4:07am |
|

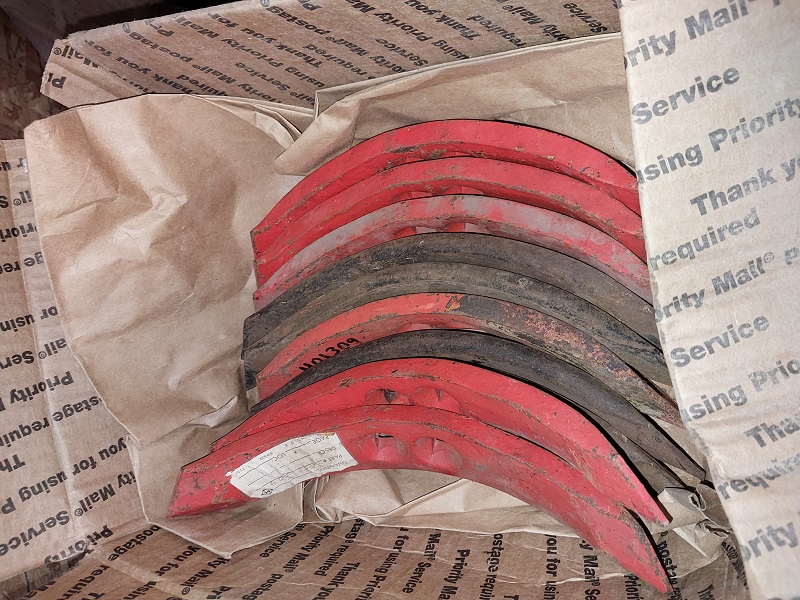

Like what I posted, they're not for sell.
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1022
|
Post Options
Thanks(0)
Quote Reply
Posted: 4 hours 43 minutes ago at 6:25am |
|
I'm over this. Go back to the original post and ask yourself how would that even sound like what I'm looking for
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6422
|
Post Options
Thanks(0)
Quote Reply
Posted: 4 hours 7 minutes ago at 7:01am |
|
Kenny, I have one that uses the feet like you pictured, think it was called a coil shank plow or cultivator. It has front and rear coils mounted on a pin hitch tool bar used on an early model WD. That thing will pull every rock to the top of the ground. Dad bought it in 1948 along with the WD. Never have seen another one like it but Graham-Holme (I think that was the name) made a pull behind version.
|
|
Just an old country boy saved by the grace of God.
|
|
ac160
Silver Level
Joined: 02 Dec 2010
Points: 400
|
Post Options
Thanks(0)
Quote Reply
Posted: 3 hours 52 minutes ago at 7:16am |
|
Kenny, those shovels were also on solid shank cultivators as well.
Edited by ac160 - 3 hours 49 minutes ago at 7:19am
|
|
ac160
Silver Level
Joined: 02 Dec 2010
Points: 400
|
Post Options
Thanks(0)
Quote Reply
Posted: 3 hours 51 minutes ago at 7:17am |
plummerscarin wrote:
AC160,
What brand and model is that? I have one similar set up for 3pt |
It's an Allis Chalmers snap coupler spring tooth harrow. It's 12ft wide. I have another one as well that's been cut down to 10ft and in a lot worse shape. I can get more pictures of it if you would like some. As a side note the two I have were used in the Missouri River bottom ground pulled behind D17s. The prior owner said it would work the 17 and needed a good bit of weight up front.
|
|
