AC B1 mower deck belt issue
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
lrebeau View Drop Down
Silver Level
Silver Level


Joined: 16 Oct 2014
Location: United States
Points: 93 		Post Options Post Options   Thanks (0) Thanks(0)   Quote lrebeau Quote  Post ReplyReply Direct Link To This Post Topic: AC B1 mower deck belt issue
    Posted: 09 Jun 2015 at 7:48pm
So we got the B1 home and we tested out the mower deck. The belt doesn't seem to stay on. I will be the first to admit, I don't know a thing about this tractor so I al trying to educate myself as I go. It seems like everything is original so I don't have any added/modified parts. The blade pulley seems to be lined up higher that the drive pulley so then it pops off. Are their guards that are suppose to be on there? Is there a belt diagram of the mower deck/tractor? Thanks for any help.
Back to Top
Sponsored Links


Back to Top
LionelinKY View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Radcliff,KY
Points: 695 		Post Options Post Options   Thanks (0) Thanks(0)   Quote LionelinKY Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2015 at 2:06am
Does your deck have the covers on it that cover the deck belt? The 2 belt guides for the main drive pulley actually bolt to the covers-1 on each cover so that when the covers are installed the belt guides are in place to hold the belt from coming off the drive pulley. Dad was also adamant that the deck should never be engaged in the raised position as well though I don't know if that is your problem either.
"My name is Lionel and I'm an Allisoholic"
Back to Top
talntedmrgreen View Drop Down
Silver Level
Silver Level
Avatar

Joined: 25 Jun 2013
Location: Caledonia, MI
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote talntedmrgreen Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2015 at 8:35am
Pictures would help tremendously, so we can see your setup, and what might be 'off'.
Patterson B1*B1/B1Forklift*B10*BigTen/B1Loader*B110*B208*B206*616*Homelite T16H/T8/T7/RM7E*Landlord/Loader/Trencher*Broadmoor717*Serf525*2110*7790*Legacy XL*Twin 20*Squire9*Squire6*JCPenny 494
Back to Top
lrebeau View Drop Down
Silver Level
Silver Level


Joined: 16 Oct 2014
Location: United States
Points: 93 		Post Options Post Options   Thanks (0) Thanks(0)   Quote lrebeau Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2015 at 3:07pm
Thanks for your responses. I will post some pictures when I get home. My dad discovered a bearing missing so that might be the entire problem there.
Back to Top
lrebeau View Drop Down
Silver Level
Silver Level


Joined: 16 Oct 2014
Location: United States
Points: 93 		Post Options Post Options   Thanks (0) Thanks(0)   Quote lrebeau Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jun 2015 at 10:48am

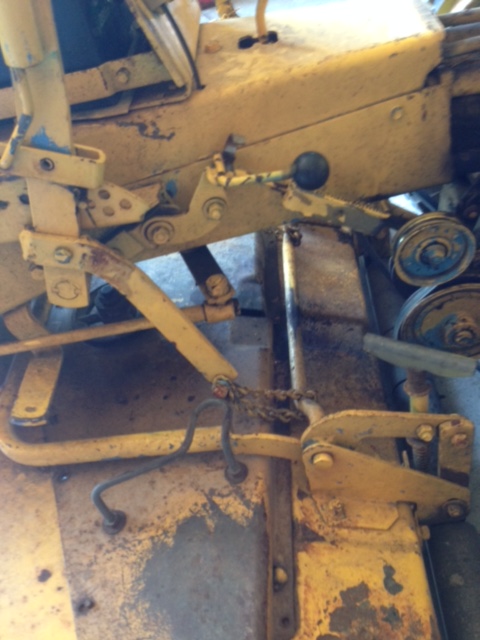

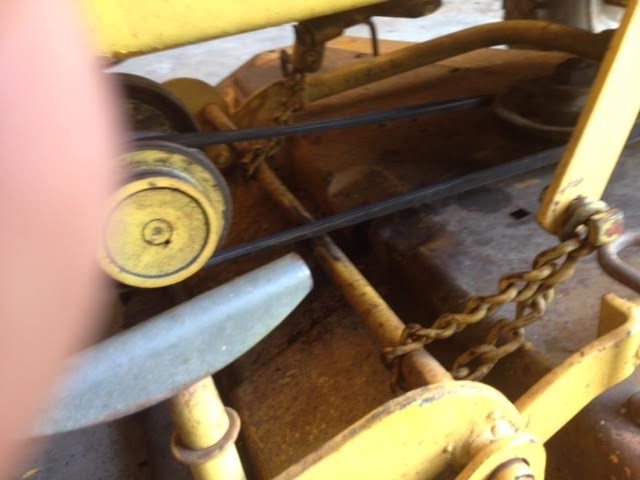

Here are a couple of pictures:
Back to Top
