80's Fork Lift Continental F163

 Post Reply Post Reply
Author
Message
bigcrunch View Drop Down
Bronze Level
Bronze Level


Joined: 07 Nov 2024
Location: Georgia
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote bigcrunch Quote  Post ReplyReply Direct Link To This Post Topic: 80's Fork Lift Continental F163
    Posted: 07 Nov 2024 at 11:01am
Hello,  my early 80's ACC25B with a Continental F163 the solid state ignition box keeps going non functional (zapped).  There is Petronix distributor available to replace it all, but I'd like to keep it stock original is there an  ignition box  brand that is quality?
I check all wiring all good nothing shorted.
Also what other options are there?

thanks,,,
Back to Top
Sponsored Links


Back to Top
Les Kerf View Drop Down
Orange Level
Orange Level


Joined: 08 May 2020
Location: Idaho
Points: 842
Post Options Post Options   Thanks (0) Thanks(0)   Quote Les Kerf Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 11:55am
I am not familiar with that particular ignition system, it may be helpful if you could post a photo of the distributor with the cap removed so we could see what type of reluctor and sensor/pickup it uses.
Back to Top
bigcrunch View Drop Down
Bronze Level
Bronze Level


Joined: 07 Nov 2024
Location: Georgia
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote bigcrunch Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 12:40pm
Back to Top
bigcrunch View Drop Down
Bronze Level
Bronze Level


Joined: 07 Nov 2024
Location: Georgia
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote bigcrunch Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 12:41pm
Back to Top
bigcrunch View Drop Down
Bronze Level
Bronze Level


Joined: 07 Nov 2024
Location: Georgia
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote bigcrunch Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 12:42pm

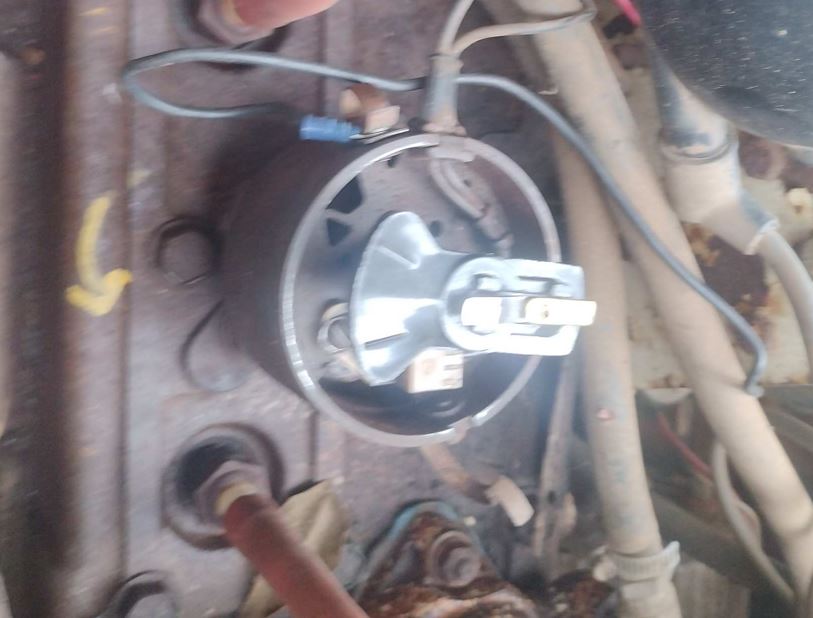

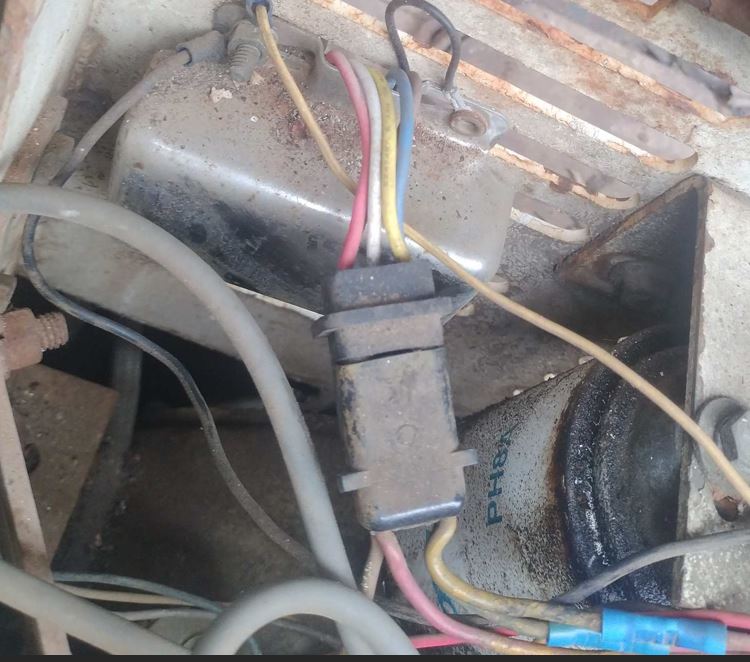

I posted 2 replies one with distributor other with the ignition module I tried to combine them but got an upload error.

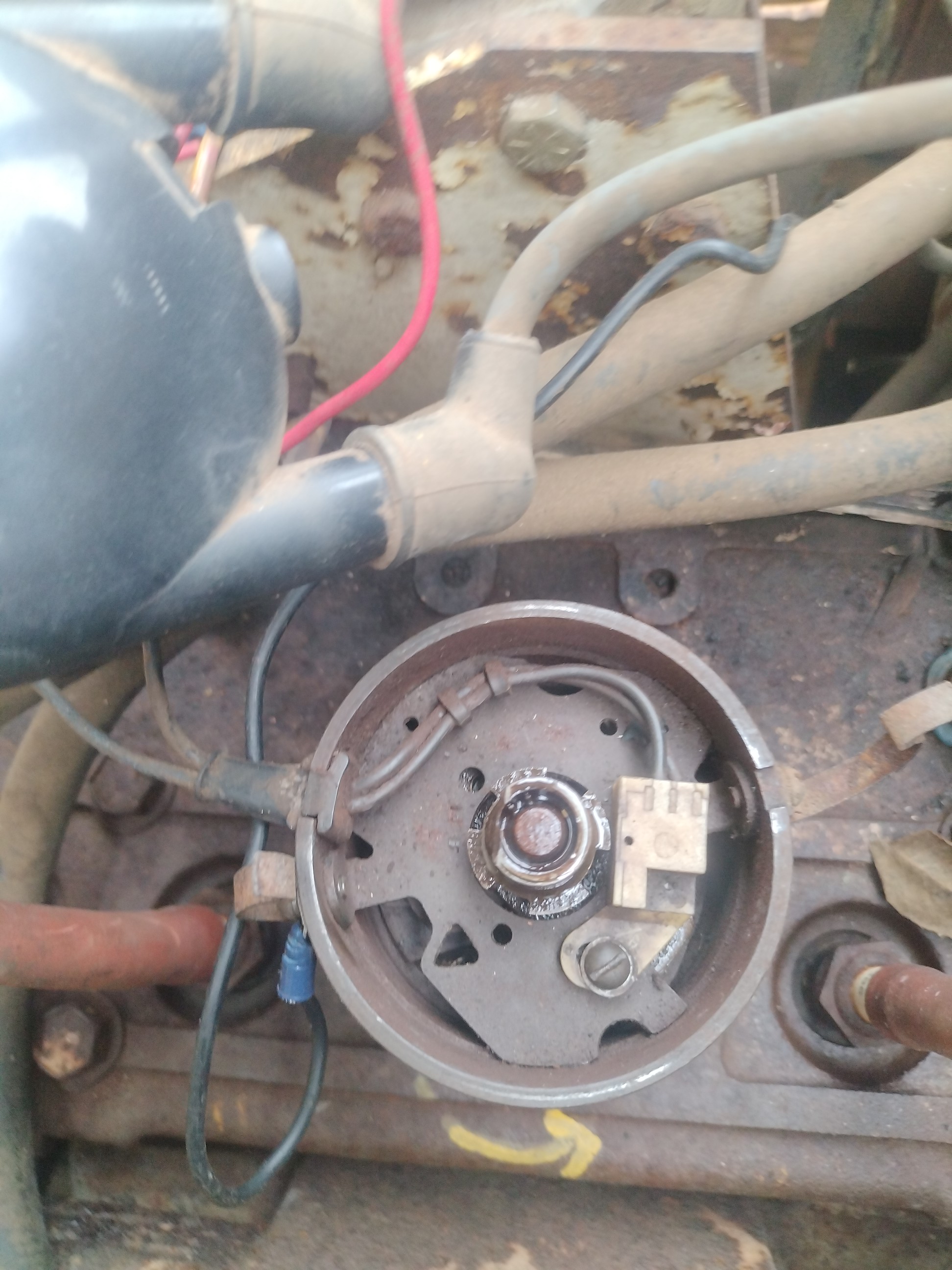

Better view of pickup module,  looks like stock Prestolite???



Edited by bigcrunch - 07 Nov 2024 at 12:53pm
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81819
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 8:06pm
the Petronix should be an UPGRADE... and "visually" you will not know the difference from stock... Why not Eliminate the old "ignition box" ?
Like them all, but love the "B"s.
Back to Top
bigcrunch View Drop Down
Bronze Level
Bronze Level


Joined: 07 Nov 2024
Location: Georgia
Points: 9
Post Options Post Options   Thanks (0) Thanks(0)   Quote bigcrunch Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2024 at 4:39pm
I installed a replacement ignition box, it is lighter and the backside has less "rubber" filling tells me it has less - different electronics in it, may be better longer lasting !!??
I rewired my ignition per hot-spark.com  diagram where the power to the ignition box goes thru a ballast. It started right up ran smooth, there are more items to address on this lift before I use it.

I looked into the Petronix D41-05A  I found a post on ebay review that stated it is for a clockwise Continental F163 (4cyl) distributor, mine is counter clockwise his also, this purchaser stated he had to make an oil drive shaft and when accelerating it lost power found it the ignition was being turned back instead of advancing. So he installed the Petronix plate into the original distributor and has it working. I called Petronix help I could not get a definitive answer on rotation of their distributor.

Back to Top
