 Topic: 80R3 Twin wheel sickle mower oil
Posted: 15 Aug 2023 at 10:29am |
I've been working on an 80 R3 (or an 82, 83 not real sure on which model) but it is the twin wheel drive. Does anyone know what oil is supposed to go into the gearbox and how much of it? I would any 80X90 or 75W140 would be fine, I also do not see a plug on the gearbox that oil will flow out once filled to the proper amount.
|
 |
|
Sponsored Links
|
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2241
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2023 at 1:22pm |
There is only the plug which is on top of the housing. This is taken directly from my manual for the 80T trail mower.....same gear box.
_____________________________________
"Drive housing, capacity one Qt. SAE 20 or 30. Do not let oil level get below or do not fill above the drive shaft."
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 7194
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2023 at 1:28pm |
|
Not familiar with this model, is there a cover on the gearbox, or just a fill plug?
If a cover, I would remove the cover, and fill the gearbox until the gear oil is about 1/4 of the way up the side of whichever bearing is highest. But make sure the gears can draw oil when in motion. 80w-90, or 75w90, should be fine.
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 7194
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2023 at 1:30pm |
|
I see Brian was posting at the same time, lol. Go with his advise.
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
RP Farms
Bronze Level
Joined: 29 Jul 2023
Location: Southern Illino
Points: 41
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Aug 2023 at 1:55pm |
 Brian G. NY wrote:
There is only the plug which is on top of the housing.This is taken directly from my manual for the 80T trail mower.....same gear box.
_____________________________________
"Drive housing, capacity one Qt. SAE 20 or 30. Do not let oil level get below or do not fill above the drive shaft." |
This one actually has a drain plug on the drive housing towards the front down low and it has the fill plug on top.
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2143
|
Post Options
Thanks(0)
Quote Reply

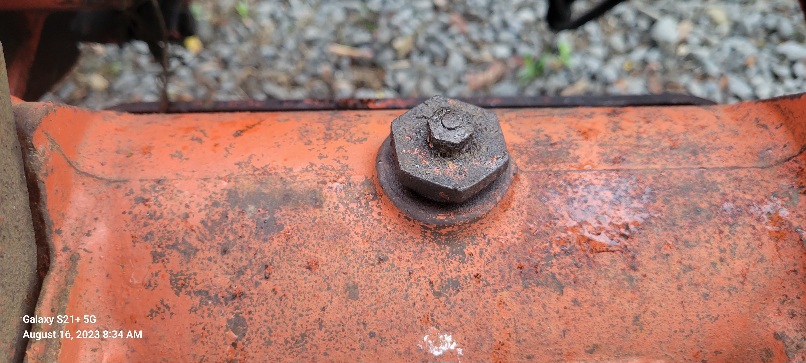

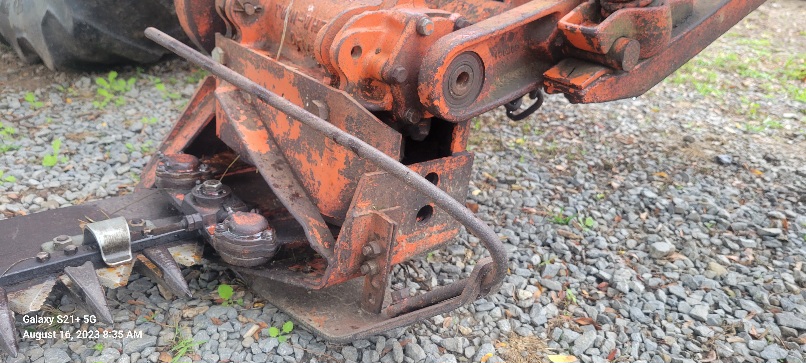

Posted: 16 Aug 2023 at 7:47am |

Edited by Macon Rounds - 16 Aug 2023 at 7:48am
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
KenBWisc
Orange Level
Joined: 15 Sep 2009
Location: Fall Creek, WI
Points: 1174
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Aug 2023 at 8:49am |
|
Are seals a available for the gear box?
|
|
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2143
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Aug 2023 at 9:34am |
if it's leaking out the horizontal shaft you probably have to much oil in it. I never had one leak out the bottom shafts. Make sure you grease BOTH grease fittings on front and BOTH fittings on the back of the gear box output shafts. My old pappy use to say. "As long as it's leaking you know it's got oil in it."
|
|
