720 wire schematic
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3542 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Topic: 720 wire schematic
    Posted: 21 Nov 2013 at 12:22pm
any one out there know were to find 720 wire harnass schematic
Back to Top
Sponsored Links


Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11816 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 21 Nov 2013 at 2:01pm
Most service manuals have one in them. Also, you could try simpletractors.com for some info.
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
Back to Top
rrhead(SD) View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Sep 2009
Location: Canton, SD
Points: 432 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rrhead(SD) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Nov 2013 at 2:38pm


2 WDs,WD45,D-14,D-17,D-19D,180,7020,6080FWA,6080 2wd, 6080 2wd(cab),8050FWA,8550,4W-305,Massey 8250. Gleaner L3, R62 &R65 Agco-Allis 1616H & 1920H, AC 720, Terra-Tiger
Back to Top
AcFordHawk View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Sep 2009
Location: Boone, IA
Points: 225 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AcFordHawk Quote  Post ReplyReply Direct Link To This Post Posted: 21 Nov 2013 at 7:51pm

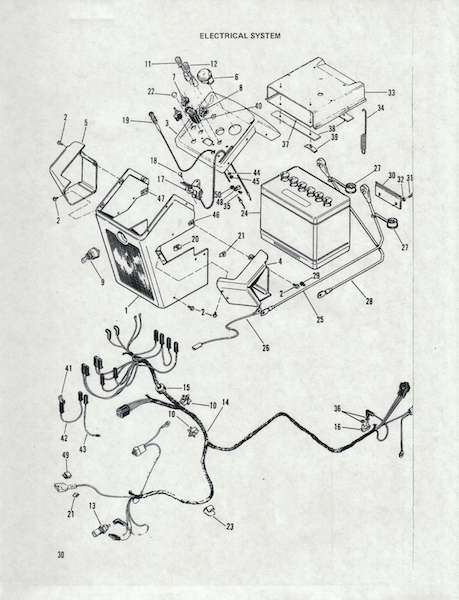

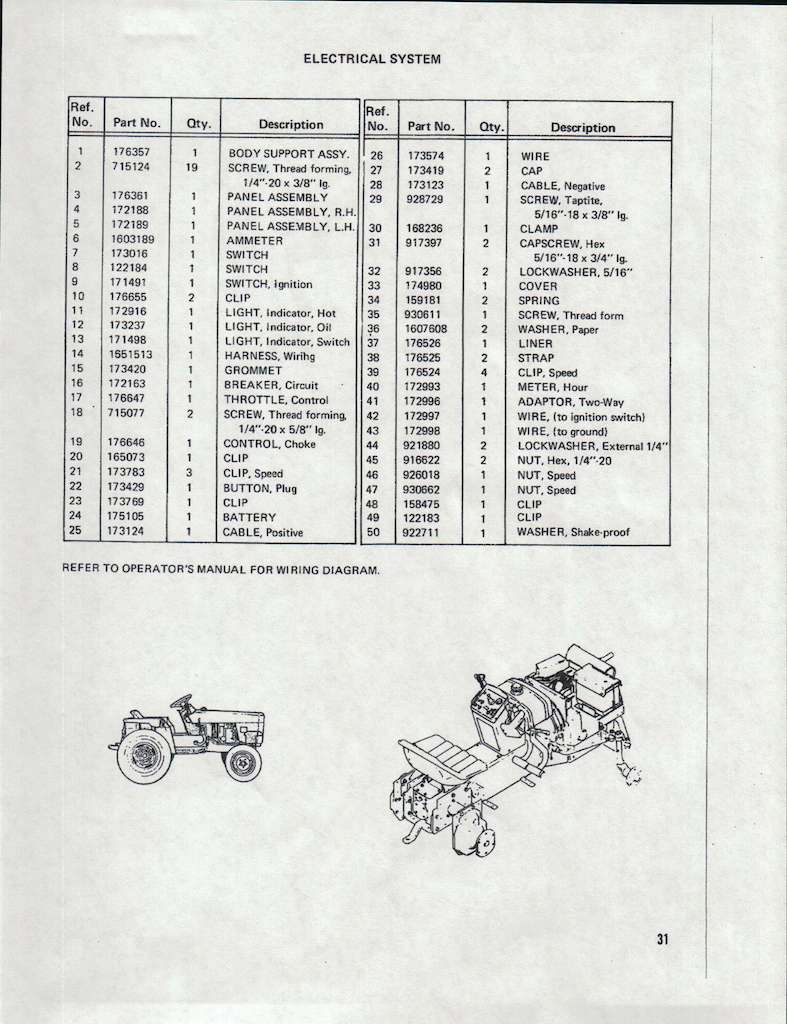

Schematic for the Simplicity versions of the Allis 720, sorry about the size kept trying to reduce and having difficulties copying from the Adobe file.



Edited by AcFordHawk - 21 Nov 2013 at 7:52pm
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3542 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 22 Nov 2013 at 11:42am
thanks you guys it will save alot of time
