7045 steering column bearings
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
SilverShoes View Drop Down
Bronze Level
Bronze Level


Joined: 20 Feb 2014
Location: Seneca, Kansas
Points: 116 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SilverShoes Quote  Post ReplyReply Direct Link To This Post Topic: 7045 steering column bearings
    Posted: 14 Feb 2024 at 4:21pm

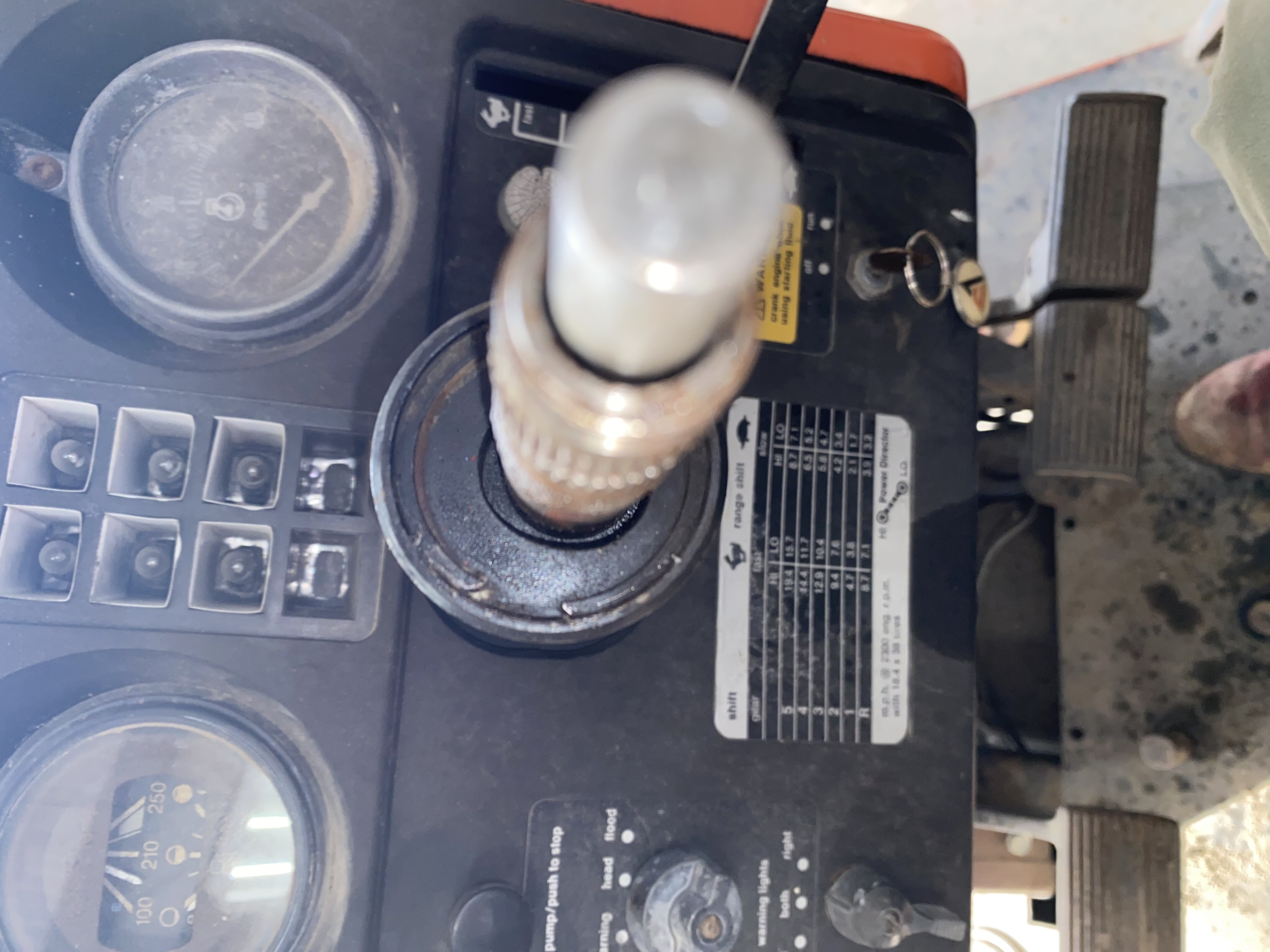

Hello, I have a 7045 with the top bearing in the steering column that has failed. I have the steering wheel off and was trying to get the first snap ring removed to try and get to the top bearing. Either I’m not going at this correctly or the snap ring is just being a hard head. Any advice on this would be appreciated. Thanks!
Back to Top
Sponsored Links


Back to Top
SilverShoes View Drop Down
Bronze Level
Bronze Level


Joined: 20 Feb 2014
Location: Seneca, Kansas
Points: 116 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SilverShoes Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 4:45pm
Back to Top
8070nc View Drop Down
Orange Level Access
Orange Level Access


Joined: 21 Mar 2019
Location: North Carolina
Points: 506 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 8070nc Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:03pm
Looks like a regular snap ring to me. Just one of those dastardly kind with no holes for snap ring pliers. I spray them with penitrant and have several sharp screw drivers. I get it started at one end and as it comes out of the groove i insert morevscrew drivers in the gap until it works out all the way around and pops out
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
Back to Top
8070nc View Drop Down
Orange Level Access
Orange Level Access


Joined: 21 Mar 2019
Location: North Carolina
Points: 506 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 8070nc Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:04pm
If theres a better way id like to hear it
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20583 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:18pm
I swear A-C owned a snap ring factory. It was called "The Impossible to remove snap ring" Company.
Back to Top
8070nc View Drop Down
Orange Level Access
Orange Level Access


Joined: 21 Mar 2019
Location: North Carolina
Points: 506 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 8070nc Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 6:20pm
Thats a good name for it
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
Back to Top
SilverShoes View Drop Down
Bronze Level
Bronze Level


Joined: 20 Feb 2014
Location: Seneca, Kansas
Points: 116 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SilverShoes Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2024 at 8:25pm
Thank you because this thing does seem impossible to get to come out of that groove
Back to Top
Gary(WI) View Drop Down
Orange Level
Orange Level


Joined: 27 Nov 2009
Location: WI
Points: 1000 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2024 at 7:13am
If you heat it red hot opposite the opening it will lose its temper and you can usually bend it and get it out. But you will have to get a new one
Back to Top
