7000 question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Ksdigger View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 Jan 2019
Location: Kansas
Points: 59 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ksdigger Quote  Post ReplyReply Direct Link To This Post Topic: 7000 question
    Posted: 07 Mar 2019 at 8:20pm

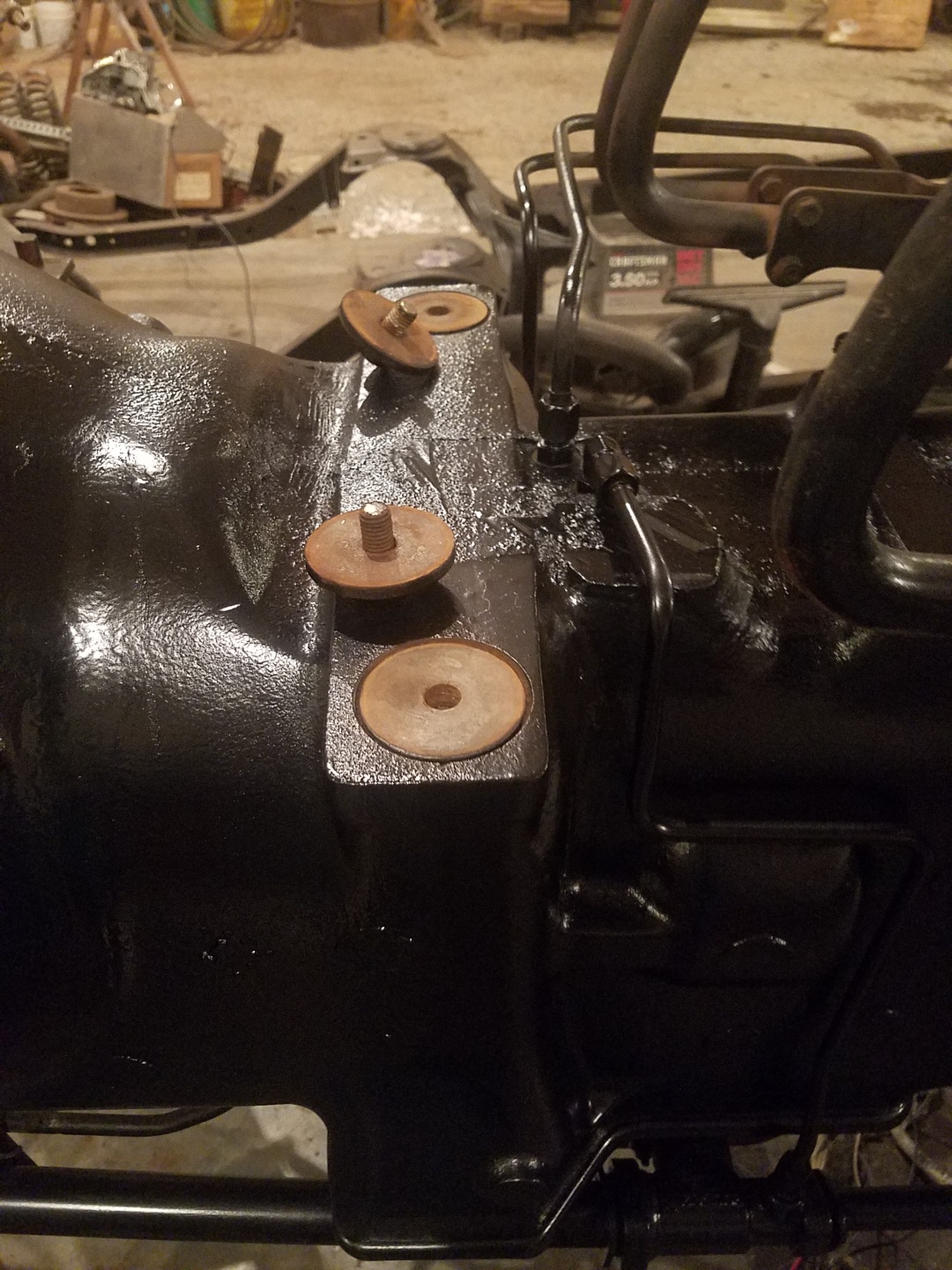

On this bracket on a 7000 there are 2 large washers between it and the housing. I would think these washers should have rubber between them as a vibration dampener. Mine just has the 2 large diameter washers together.
This is between the engine and the steering column.
Any help is appreciated.
Back to Top
Sponsored Links


Back to Top
Ron(AB) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2009
Location: Alberta
Points: 959 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron(AB) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Mar 2019 at 11:38pm
Is this the bottom of the cab?

Are you thinking it is the cab isolators?

I need a better pic to know where you are?
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29792 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 6:54am
On a 7000, all I can find for an isolator in the parts book are the isolators for the steps. The 7050 parts book shows isolators where the front of the cab mounts on the channel irons.
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
Hurst View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Midway, Ky
Points: 1215 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hurst Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 8:10am

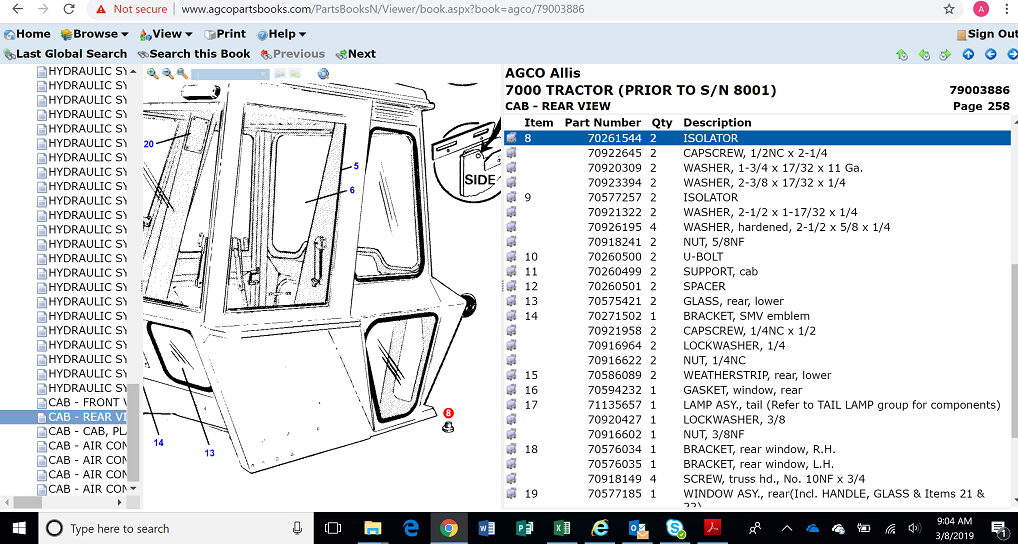

It looks to be part 70261544.  It is quite well hidden in the Cab-rear view page of the parts book.  Almost need a magnifying glass to find it!



Hurst
1979 Allis Chalmers 7000
5800 Hours
Back to Top
Hurst View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Midway, Ky
Points: 1215 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hurst Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 8:12am
If it is a black belly, it looks like the same part number.  It is located in the Cab-platform page of the parts manual.

Hurst
1979 Allis Chalmers 7000
5800 Hours
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29792 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 8:37am
Yep there the little sucker is
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
Ksdigger View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 28 Jan 2019
Location: Kansas
Points: 59 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ksdigger Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 8:37am

This is on the bracket that the floor pans bolt to. No cab. Just behind the engine. 76 model. Originally maroon.
Back to Top
Ron(AB) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 27 Dec 2009
Location: Alberta
Points: 959 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron(AB) Quote  Post ReplyReply Direct Link To This Post Posted: 08 Mar 2019 at 12:59pm
I have the same tractor. I'll have a look this afternoon. Maybe I can take a pic...
Back to Top
