1973 Homelite bevel gearbox

 Post Reply Post Reply
Author
Message
Bdschmidt2790 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Aug 2019
Location: Minnesota
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bdschmidt2790 Quote  Post ReplyReply Direct Link To This Post Topic: 1973 Homelite bevel gearbox
    Posted: 20 Jun 2021 at 10:17pm
Hey everyone.
     I have a 1973 homelite T-16 that the bevel gearbox went out. Where is the best place to get a rebuild kit on those? How much do they cost as well? Any help would be great, thanks
Back to Top
Sponsored Links


Back to Top
Reindeer View Drop Down
Orange Level
Orange Level
Avatar

Joined: 14 Sep 2009
Location: Calgary, AB
Points: 650
Post Options Post Options   Thanks (0) Thanks(0)   Quote Reindeer Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jun 2021 at 6:09pm
I just went through the bevel gearbox on a 3416 Simplicity, and everything was availble from the local bearing shop except the ball bearings.  New seals and  needle bearings were easy to get and not too expensive.  The ball bearings I got through Sandy Lake, but pricey.

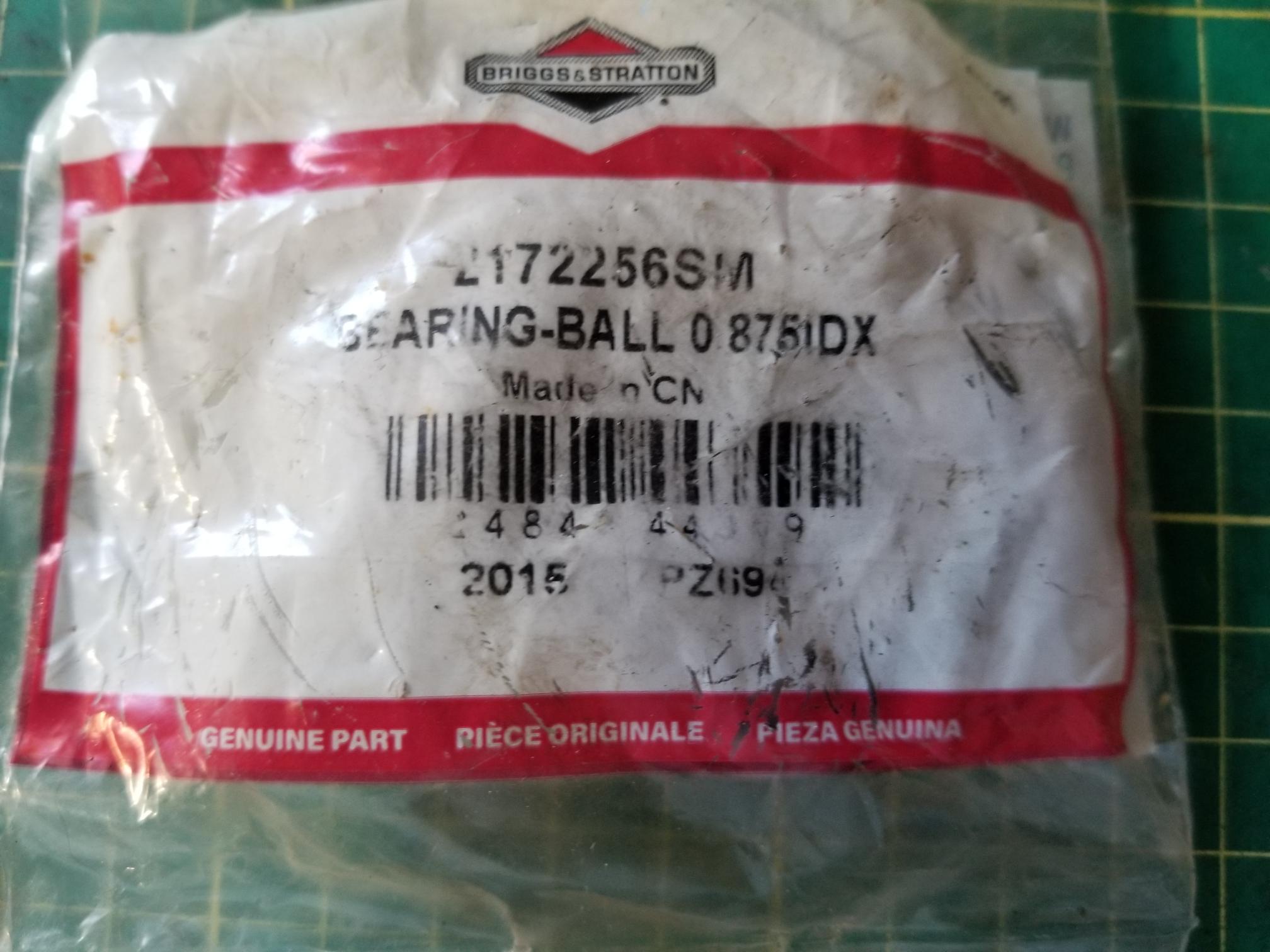

The ball bearings were Briggs and Stratton part number 2172256SM.  Could not find them elsewhere as they are 7/8" ID and 52mm OD.  Weird.


Back to Top
