What Am I Missing?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
tamuron View Drop Down
Bronze Level
Bronze Level


Joined: 25 Aug 2024
Location: Texas
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tamuron Quote  Post ReplyReply Direct Link To This Post Topic: What Am I Missing?
    Posted: 25 Aug 2024 at 4:28pm
I have a Allis CA that I trying to fire up. Head Professionally re-worked, all new everything. Great Compression on all 4, Hot Fire and clean gas..6 volt system.
Back to Top
Sponsored Links


Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5388 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 25 Aug 2024 at 6:28pm

Distributer or Magneto ?



Edited by Gary - 25 Aug 2024 at 8:50pm
Back to Top
tamuron View Drop Down
Bronze Level
Bronze Level


Joined: 25 Aug 2024
Location: Texas
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tamuron Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 1:25pm
Distributor
Back to Top
tamuron View Drop Down
Bronze Level
Bronze Level


Joined: 25 Aug 2024
Location: Texas
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tamuron Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 1:28pm

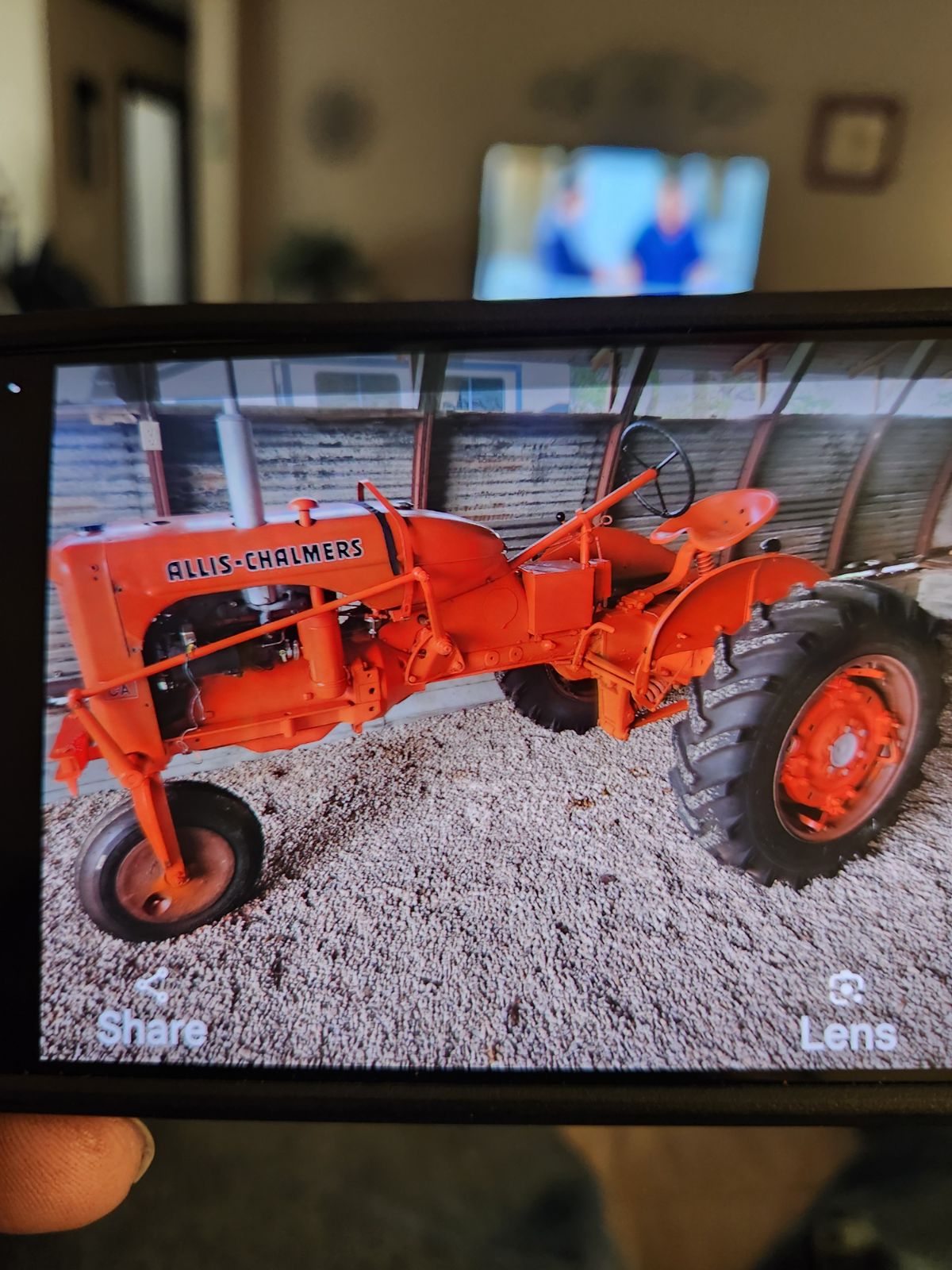

uploads/25070/image00000010.jpg
Back to Top
im4racin View Drop Down
Orange Level
Orange Level


Joined: 12 Jun 2017
Location: Garrison ND
Points: 936 		Post Options Post Options   Thanks (0) Thanks(0)   Quote im4racin Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 9:22pm
Timing?  Use a timing light to check
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81193 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 9:43pm
if you have gas and you have spark, then the timing is off... Rotate the motor to TDC on the front cylinder... Look at the distributo rotor and see that it is pointing at #1 lug....

Also the wires on the cap are 1-2-4-3  ... in a clockwise direction.

The FIRE mark on the crank is the ADVANCE position you will get when the motor is RUNNING... To START it should fire near Top Dead Center.


Edited by steve(ill) - 26 Aug 2024 at 9:46pm
Like them all, but love the "B"s.
Back to Top
im4racin View Drop Down
Orange Level
Orange Level


Joined: 12 Jun 2017
Location: Garrison ND
Points: 936 		Post Options Post Options   Thanks (0) Thanks(0)   Quote im4racin Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 9:54pm
Set timing to the fire mark at wide open throttle. Not at idle
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3539 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 26 Aug 2024 at 10:11pm
if the head was off is the over head (valve lash)done on the right stroke
Back to Top
