Could you guys post some pics of WD45's with loaders? thanks
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Sponsored Links


Back to Top
Gordy View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: SWMI
Points: 2533

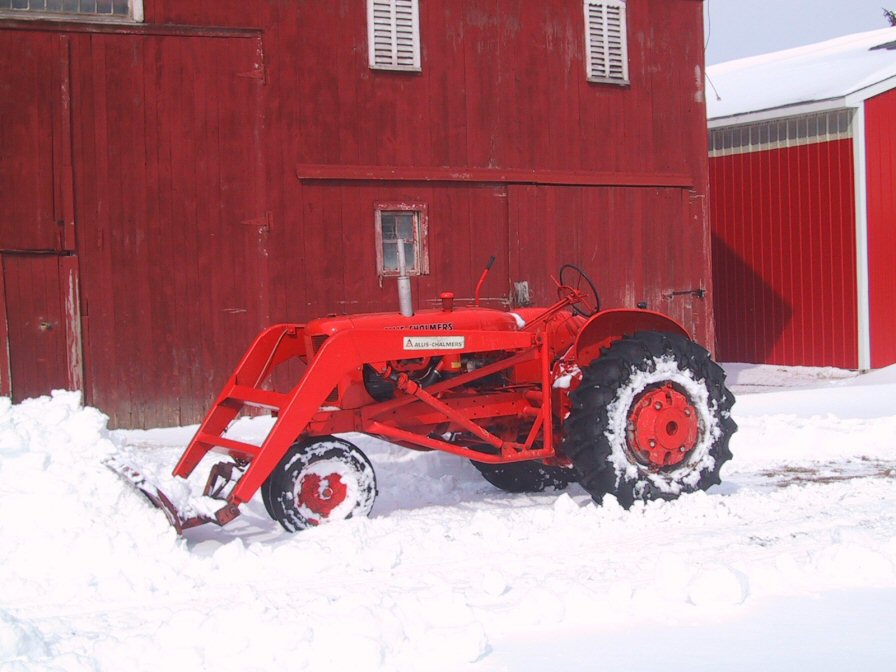

Post Options Post Options   Thanks (0) Thanks(0)   Quote Gordy Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 3:15pm
Back to Top
R.W View Drop Down
Orange Level
Orange Level


Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
Post Options Post Options   Thanks (0) Thanks(0)   Quote R.W Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 3:20pm
Thats a NICE 45 you got there Gordy!
Back to Top
omahagreg View Drop Down
Orange Level Access
Orange Level Access


Joined: 11 Sep 2009
Location: Omaha, Nebraska
Points: 2800
Post Options Post Options   Thanks (0) Thanks(0)   Quote omahagreg Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 5:15pm
Ours is a WD, not a 45.




Greg Kroeker
1950 WD with wide front and Freeman trip loader
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 5:54pm
I will have my 1953WD45 mounted shortly with a fully hydraulic AC 445 loader shortly and will post a pic. The front pump and the drive pulley is all mounted all I need to do is get some new hoses and mount the frame and boom/bucket and valves.
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
fixer1958 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Feb 2010
Location: kansas
Points: 2434
Post Options Post Options   Thanks (0) Thanks(0)   Quote fixer1958 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 6:10pm
Got any pics of how you mounted your pump Michael? I would be interested in what pump you used also.
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 8:50pm
The pump mounts from underneath in front of the crank pulley. The crank pulley has to be taken off and a special drive disc is welded inside the center, in my case the tractor has factory power steering but the disc will fit in there, and so you have live hydraulics on the pump. The pump setup and loader is a factory setup, the loader is a model 445 and it us shown in the 400 series loader book. The 445 frame will only fit a WD or WD45. I saw a nos pump and bracket sell on eBay several years ago and you can still get the drive disc and pilot from agco so if can find a pump and bracket you can rig a fully hydraulic loader for a WD or WD45. The 445 has a special valve assembly that places the levers just to the left of the steering wheel.
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2011 at 8:52pm
Hear are some pictures from the AC 400 series loader manual.  I will take some pictures  of the tractor once I have the loader mounted.  I can tell you it the pump barely fits and the book even says the early steering bolsters can't be used with the pump setup.






This is a picture of the tractor and front grill I got from a guy on this site, can't recall his name, that the loader is going on.
Here is a picture of a 519 AC loader on my D19 and the 445 loader is basically the same except it has a reservoir in the left hand mount and used the special front pump and valve assembly for a 45.


Edited by Michael Crowe - 06 Nov 2011 at 9:22am
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2011 at 3:00pm
I edited my post with the pictures from the manuals in the previous post and this is just to bump it up so people can see the pictures.
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Josh Day View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Nov 2010
Location: Indiana
Points: 3427
Post Options Post Options   Thanks (0) Thanks(0)   Quote Josh Day Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2011 at 3:30pm
CARon from Kokomo IN, sells the grill guards.

Edited by Josh Day - 16 Oct 2011 at 3:30pm
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2011 at 3:51pm
John, yes Ron is the guy, can't recall his last name though.  And if anyone is thinking of buying one, they are very well made and very heavy duty.  Every piece is welded the entire length of the metal intersection, not just a tack. They look great and are a perfect fit.
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
fixer1958 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Feb 2010
Location: kansas
Points: 2434
Post Options Post Options   Thanks (0) Thanks(0)   Quote fixer1958 Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2011 at 4:22pm
I was looking at the Agco site and found the pump and drive for the 400-500 series loaders. What I saw was a sprocket drive with a double row chain connector, which is fine too, but I couldn't find the disc anywhere.
Probably just me.
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2011 at 10:03pm
The chain and sprocket is used on the d series
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Michael Crowe View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kansas City
Points: 1722
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael Crowe Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 9:19am
Here are the pictures of my WD45 with the pump, loader frame and valve controls mounted. All I have left to do is put new hoses on and mount the loader arm and bucket.
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3938
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 10:48am
I have a WD 9  trip bucket loader on mine.
Back to Top
Dusty MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dusty MI Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 10:59am
We had a Stanhoist loader on our '53 WD. I seldom hear of a Stanhoist.

Dusty
917 H, '48 G, '65 D-10 series III "Allis Express"
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2551
Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 11:10am
Dakota Dave, is that cab made out of an old 3 sided barge box?  Pretty clever.  Spent more than a few hours standing in one of those shoveling oats into a McCormick endgate seeder.
AaronSEIA
Back to Top
dannyraddatz View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Plainfield, Ill
Points: 848
Post Options Post Options   Thanks (0) Thanks(0)   Quote dannyraddatz Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 11:41am
Here is my 1954 WD45 with a Allis Chalmers (Freeman) model #9 loader.
Danny Raddatz
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3938
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2011 at 3:27pm
No tThe Cab is factory built by Automatic Manufacturing Company. in Pender Nebraska. was made during the 50's and universial fit for most tractors.
Back to Top
 Post Reply Post Reply
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.086 seconds.


Help Support the
Unofficial Allis Forum
