WD45 Timing cover alignment tool
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
MrSuter View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Oct 2023
Location: Ohio
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MrSuter Quote  Post ReplyReply Direct Link To This Post Topic: WD45 Timing cover alignment tool
    Posted: 16 Nov 2024 at 4:23pm
I am working on putting together my WD45 engine. I appreciate the video showing how to seal it up so that it doesn't leak. I'm unsure how to make the tool to align the timing cover though. Any advice would be appreciated. Thank you.
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20528 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 16 Nov 2024 at 10:23pm
My tool is 70 years old and is like a speedi-sleeve for a worn shaft only it slips on and off the crankshaft nose. Tighten the bolts while the sleeve centers the cover on the crank and remove when done. You could make one out of pipe to use the seal OD bore as the pilot on the cranks nose.
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2024 at 11:31am

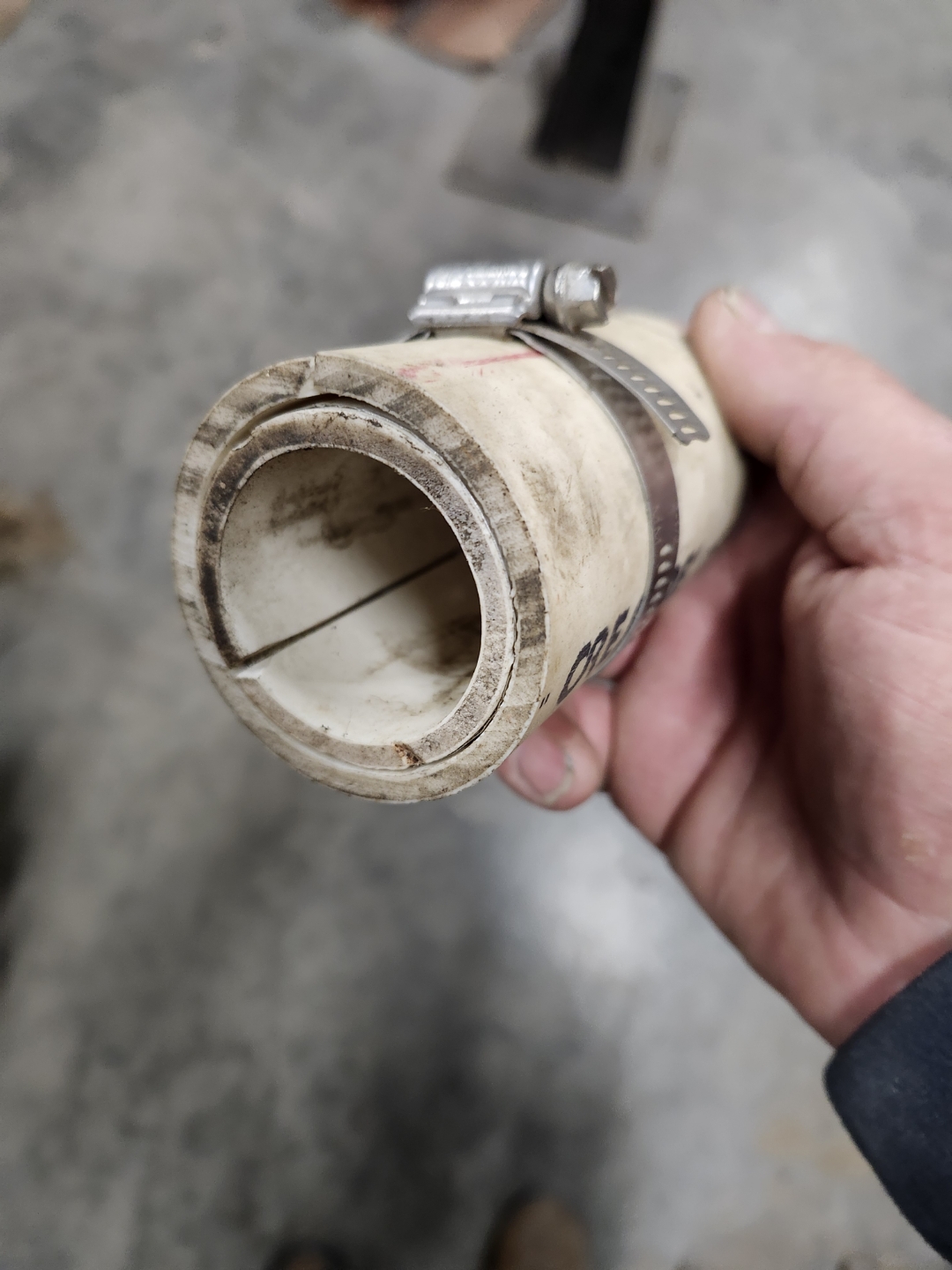

This is what I made to install a cover on a 170 engine
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3733 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 18 Nov 2024 at 6:13am
I made one out of brass on a lathe, think I even homed the ID to get a nice fit. Cut a 30 degree taper to engage the cover. Wasn't happy with the way things looked so, set up a dial indicator and located them that way.
Back to Top
MrSuter View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 29 Oct 2023
Location: Ohio
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MrSuter Quote  Post ReplyReply Direct Link To This Post Posted: 5 hours 57 minutes ago at 10:02am
Thank you for the ideas. I like the slits in the PVC pipes. I could certainly do that with the tools and supplies I have. I wish I had a lathe to make things like that. Maybe someday...
