 Topic: WD45 Radius rod pivot bracket came loose
Posted: 23 Apr 2018 at 7:50pm |

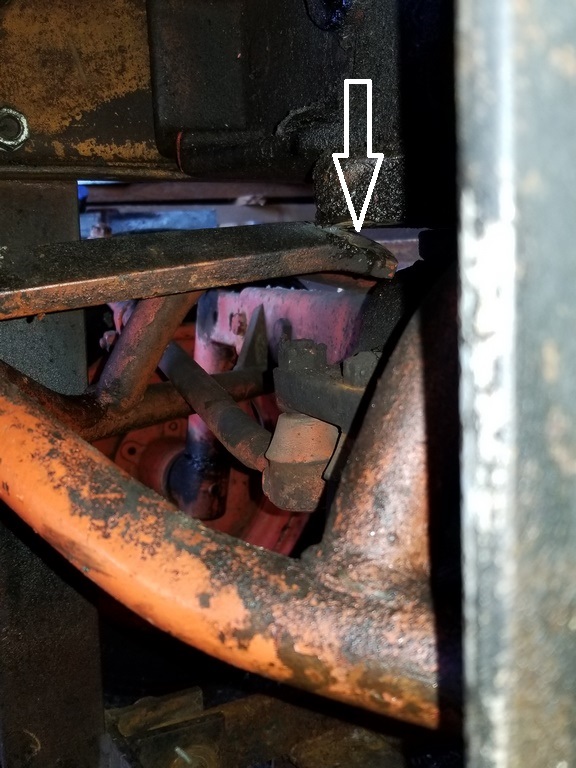

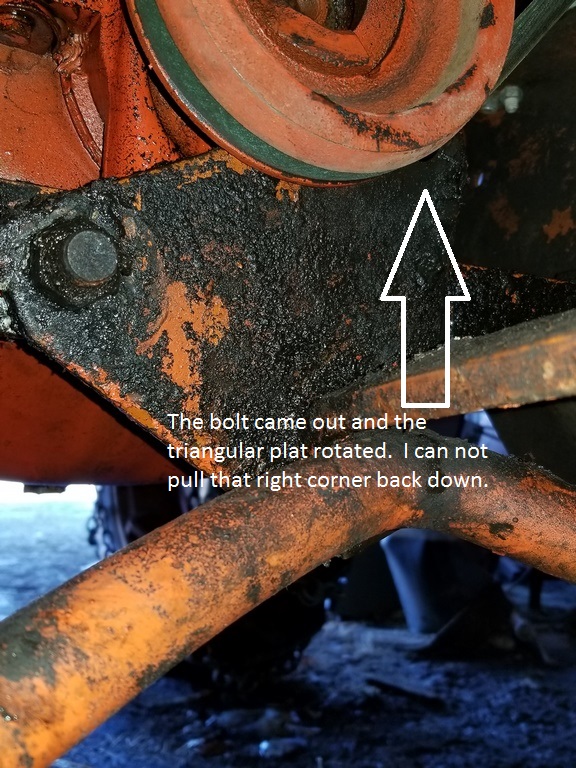

Hello all. While using my WD45, it suddenly started to make a loud knocking sound in the front, by the radiator fan. I looked under and saw a part that had come loose. I believe it is the Radius rod pivot bracket, according to the shop manual. It looks like 1 bolt came out from it (the triangular plate, part 54 in pic) and the bolt at the end of the flat arm broke off (where the pen is pointing to in the pic). The plate rotated and one side of it went up to where the belt is. I can't seem to move anything back into place. I've loosened the bolts that are still on but everything is still stuck in place. I'm by no means a mechanic. What is the right way to fix this? Hopefully it's just a matter of me trying to do something different. Thanks.
Edited by RobbieH - 23 Apr 2018 at 7:57pm
|
 |
|
Sponsored Links
|
|
|
Jacob (WI,ND)
Orange Level
Joined: 11 Sep 2009
Location: Kenmare, ND
Points: 1248
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Apr 2018 at 8:13pm |
If it is just the bolts that came out or broke, and nothing else, it should not be too hard to fix. Might have to jack things up to take some weight and pressure off the front end to get things lined back up and bolted back together. Be sure to replace with good quality bolts.
And this would also be a good time to go over the entire tractor and check that there are no other loose nuts or bolts. An ounce of prevention is worth a pound of cure like they say.
If you need more direction, just holler, but I know you can handle this.
Edited by Jacob (WI,ND) - 23 Apr 2018 at 8:18pm
|
|
Jacob Swanson
1920 6-12; 1925,1926 20-35 longfenders; 1925,1926 15-25's; 1927,1929 20-35 shortfenders; C; B's; IB; WC's; WD; WD45
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2464
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Apr 2018 at 8:23pm |
|
you need to jack up the tractor from the frame rails on both sides,, block secularly,, use a long pry bar,, use bad language,, with weight off the front end , it should move into place,, tighten new bolts with lock washers,, maybe some Loctite also..
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29805
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2018 at 6:17am |
|
After you get the bracket bolted in place. I'd loosen the jam nut on the crank pulley and make sure the set screw is tightened to spec then tighten jam nut to spec. I fixed a WD45 for an old guy about 20 years ago where this exact thing happened. The angle iron that supports the front of the engine was also loose. There is a preload spec for that angle iron that is explained in the service manual. A certain amount of shims are used between the engine and that angle iron. I'd check that out too if it is loose. If it is wrong you might crack the torque tube. I've seen it happen.
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
Stan IL&TN
Orange Level
Joined: 13 Sep 2009
Location: Elvis Land
Points: 6730
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2018 at 7:21am |
|
|
|
1957 WD45 dad's first AC
1968 one-seventy
1956 F40 Ferguson
|
|
Lon(MN)
Orange Level
Joined: 11 Sep 2009
Location: Merrill Wi
Points: 2033
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2018 at 6:33pm |
|
I made up new weldments and the angle mount for all my WDs and WD45s. The holes were worn so big that the bolts would not stay tight.
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2018 at 6:58pm |
|

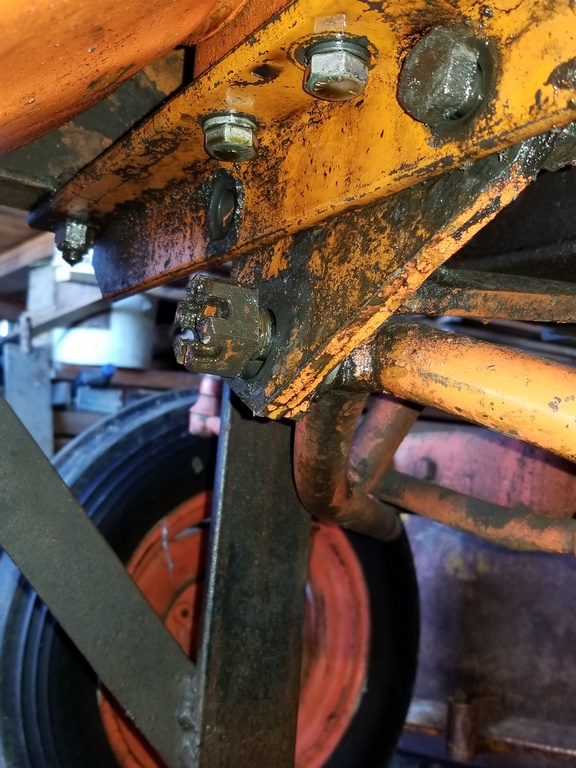

By the looks of the holes, Both of those bolts have been loose for a while. Looks like you need to do like Lonn did, or at least weld the holes shut and re-drill to the bolt size. Don't just replace that one bolt either or you might be back doing the other side soon.
|
|
|
|
RobbieH
Bronze Level
Joined: 15 Nov 2014
Location: New York
Points: 14
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Apr 2018 at 8:10pm |
Thank you all for the reply. I will jack up the front some and see if I can get things back in order. I will take the advice here and check to make sure everything is good and secure. The bolts in the pics are loose, because I loosened them when I first tried to push the plate back to the right spot. Hopefully all I need to do is jack the front of the tractor some, then itll be much easier to realign, add new bolts, and tighten everything down.
Ill post back after Ive done this. Thanks again.
Edited by RobbieH - 24 Apr 2018 at 8:11pm
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3042
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2018 at 7:16am |
I'd listen to Lon and Charlie. All those holes are pretty bad. If you're tight on funds just put it back together. If you can swing $200, I'd take that triangle piece off and have a new one made. My pivots were not as bad as yours and I had them all redone. I bet the front axle pivot is also really worn. Whatever route you decide, we'll help you out.
|
|
Lon(MN)
Orange Level
Joined: 11 Sep 2009
Location: Merrill Wi
Points: 2033
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2018 at 7:19am |
I have new ones made up if that helps. Email me at lselkriver@gmail.com for pictures.
|
|
