WD45 Char Lynn power steering

 Post Reply Post Reply Page  12>
Author
Message
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Topic: WD45 Char Lynn power steering
    Posted: 24 May 2020 at 10:00pm
As if I didn't have enough Orange projects going on, I decided today is the day the 'Wide Front' gets power steering. Well, it gets torn down and the process started. Have had this setup around here for several years. Been dragging my feet because I didn't want to have the tractor down. Well, now I'm committed, or should be. There are several little things that I'm going to address during this process. In the better to be lucky than good category, i just happen to have a new steering wheel, that will be getting installed. Going to build up the steering shaft where it goes through the support and install a new u-joint. This may take awhile to get completely done but hopefully the tractor isn't down too long.
Back to Top
Sponsored Links


Back to Top
Unit3 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Oct 2009
Location: NC Iowa
Points: 5490
Post Options Post Options   Thanks (0) Thanks(0)   Quote Unit3 Quote  Post ReplyReply Direct Link To This Post Posted: 24 May 2020 at 11:21pm
I have seen some of your work and I know for a fact, it will be done right. If it should happen to drag on longer then maybe it really should, don't feel alone. I have 6 or 8 of those someday projects as well. One of them will be a glass and walnut cabinet to show off my 1/64 collection. I am having my daughter build it so she can show it for 4H.
2-8070FWA PS/8050PS/7080/7045PS/200/D15-II/2-WD45/WD/3-WC/UC/C
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8166
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 May 2020 at 6:47am
Mike,
 I will be watching. I remember the factory power steering on one of the WD45's  when I was a kid on Dad's farm. It was a joy to drive, compared to the std steering! I probably should have spent more money and found a unit for my NF 45. Oh well.
Always good to have several projects waiting to be done.
Looks like you do have a good start. How do you plan to get the old wheel off? That hub to shaft connection can be a bugger!
Looking forward to your updates.
 Regards,
 Chris


Edited by Sugarmaker - 25 May 2020 at 6:48am
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Lon(MN) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Elk River,MN
Points: 1902
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lon(MN) Quote  Post ReplyReply Direct Link To This Post Posted: 25 May 2020 at 7:39am
I cut the steering shaft to get the wheel off. Press the stub out of the wheel if I want to save the wheel. Replace the shaft with a new stick. It is stock cold rolled. Cut to length and drill two holes. Just my two cents.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 25 May 2020 at 9:08am
Unit3, thanks. Chris, guys, the old wheel is already off the shaft, heated it up with the rosebud and removed with a hammer.

Really going to try to resist the temptation to hurry this. I want to get everything stripped down and painted if possible. This tractor has became my 'pet'. I don't like having it inoperable!

I'll try to keep this updated with pictures. If I get all these things done there is the '57 with factory PS sitting over in a corner.......
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 25 May 2020 at 8:37pm
Got a little bit done on this today, not too much. Changed the cross in the steering u-joint and got it reinstalled on the forward shaft. A friend showed up and that is a two person job so that was timely.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8166
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 25 May 2020 at 9:05pm
Mike,
 I see! A pet tractor! I guess I have several too. But that 45 I finished last year is still my favorite of the bunch.
Good to take your time.
I like the fact your going to paint it too. They always feel so much fresher with clean clothes on!:) But painting them is another big project. At least it has been for me.
Regards,
 Chris


Edited by Sugarmaker - 25 May 2020 at 9:06pm
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 8:26am
Chris, maybe I should have said, "I hope to get this thing painted". Kind of my own worst enemy on these things. I tend to obsess with the prep. As you know, getting these things clean before applying paint is lots of work! I do have a real paint gun and need to experiment with it sometime, hopefully the wind lays down this summer!
Back to Top
Dennis J OPKs View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2009
Location: Overland Park,
Points: 379
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dennis J OPKs Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 8:51am
I'm not sure if all of these units are installed in the same spot.  My Dad had one, dealer installed and it was just behind the steering support bracket attached to the frame rail.  Anyway, it required a little fab work to bow the throttle and hydraulic rods around the unit.  They probably had to splice in a short section of rod to gain the length required.  It's been a long time since then and that's what I remember.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 8:58am
Dennis, I've seen several different ways the throttle rod has been addressed! The tractor this came from they just forced it out around, really ugly. Have seen one, (or possibly more) that someone used a rod bender to jog the shaft out around. Was a really clean install, I liked that a lot! Alas, I don't have a rod bender so It's going to get done like my NF 45. Whoever did it cut the shaft and made some plates to weld in for the jog, this is in process, will post pictures of it.
Back to Top
Dennis J OPKs View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2009
Location: Overland Park,
Points: 379
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dennis J OPKs Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 9:15am
I think I  misspoke, probably only the throttle rod is a problem since the hydraulic rod doesn't go down that far.  I don't have a good drawing/picture to look at.  As I recall it was a fairly neat appearing installation and the power steering was a real plus as it was a loader tractor.  On the other hand, I have a WD 45 wide front without PS and unless it has some weight on the front-it steers fairly easy as long as you're moving.
Back to Top
ac fleet View Drop Down
Orange Level
Orange Level


Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2187
Post Options Post Options   Thanks (0) Thanks(0)   Quote ac fleet Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 3:49pm
One of my WD's has char-lynn steering on it.--someone added it before I got it. --It does drive nicer that one of the 45's without power steering. One 45 has factory power steering on it and I have no idea how it drives, ---need to pull-start it and right now thats out, since I can't drive the puller and the pulled by myself!
http://machinebuildersnetwork.com/
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3236
Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 26 May 2020 at 10:27pm
i want to see pictures pump mounting tank and allof the other things done,   because i want to do my wd
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 27 May 2020 at 8:46am
Originally posted by Dennis J OPKs Dennis J OPKs wrote:

I think I  misspoke, probably only the throttle rod is a problem since the hydraulic rod doesn't go down that far.  I don't have a good drawing/picture to look at.  As I recall it was a fairly neat appearing installation and the power steering was a real plus as it was a loader tractor.  On the other hand, I have a WD 45 wide front without PS and unless it has some weight on the front-it steers fairly easy as long as you're moving.

Dennis, the fact that it drives and turns good while moving has kept this project on the back burner for quite a while. However, I have a set of four stack weights I want to get put on this machine and when they are on it steering takes some effort!

HudCo, I'll try to get pictures of how things get mounted. Some time back there was a thread on here where the poster, (can't remember who) brazed a hydraulic dipstick from a WD into the lid of the reservoir and cut a small hole in the hood for easy checking of fluid level. I hope to duplicate that.


Edited by IBWD MIke - 27 May 2020 at 8:50am
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 7910
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2020 at 8:22am
Dad used a torch and a vise to heat/bend the rod to clear unit on the WD.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2020 at 10:54am

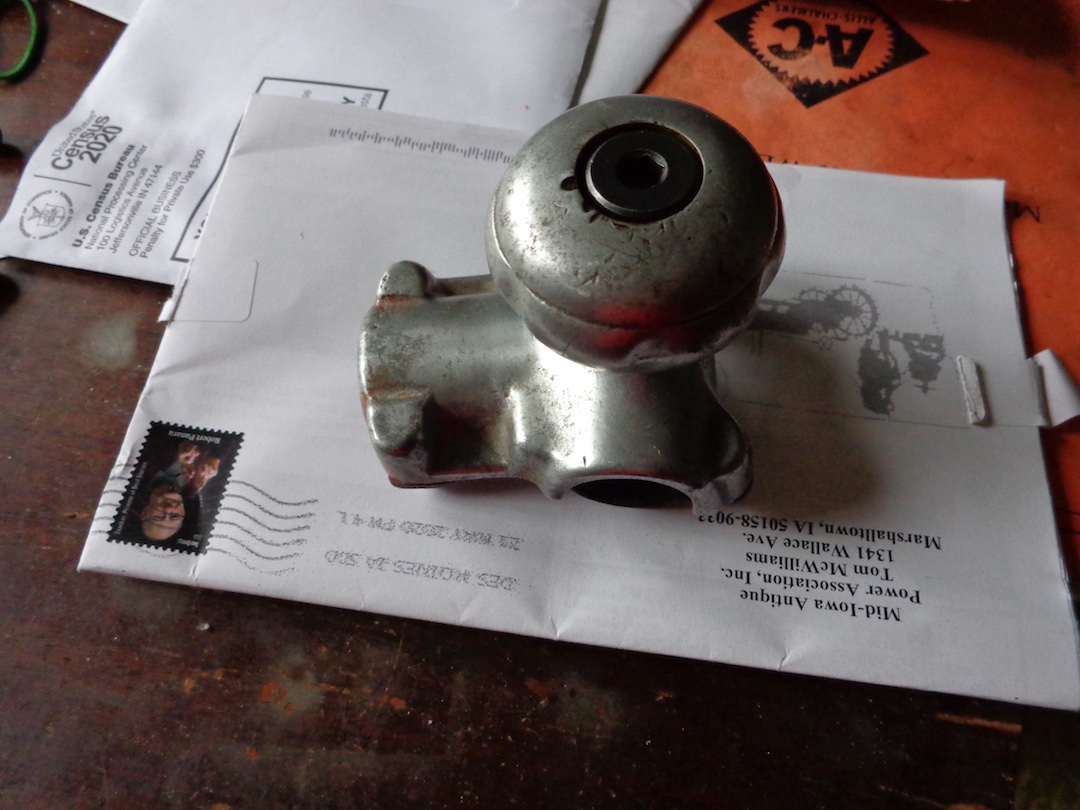

Not much of an update but all I've got for now. This old spinner was on the steering wheel that the power steering came from. I've never seen one like it and think it's kind of cool, will be going on when this is complete. I guess if I don't like it the one that was on it can go back on.

Had to do a little repair work to make it work. It was worn enough that it might pinch. Took it to town and found a stripper bolt in my inventory the right length, yes! When I screwed it in the threads came right out! Installed a helicoil and shimmed the new bolt and good as new, I think.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2020 at 8:31am
Progress has been slow, should have time to get some work done on this today. Got the steering shaft cleaned up and ready to weld. Lon, if I had a stick of new CRS I would just make a new one but alas... Hopefully get the torque-generator mounted today and get some measurements so I can get the shaft cut.

Some pics of the portable red workbench, (note that it can be accessorized) and the throttle set-up on the NF. I hope to refine this a little, it works good.






Edited by IBWD MIke - 31 May 2020 at 8:33am
Back to Top
Unit3 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Oct 2009
Location: NC Iowa
Points: 5490
Post Options Post Options   Thanks (0) Thanks(0)   Quote Unit3 Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2020 at 11:14pm
Now that is inventive. I have put offsets in metal by heating it and putting bolts on each side and crushing it in a vise. Use different sized bolts to give different sized offsets.
2-8070FWA PS/8050PS/7080/7045PS/200/D15-II/2-WD45/WD/3-WC/UC/C
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3892
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2020 at 11:28pm
I kinked mine in the vice with a torch and hammer. It only needed about 3/8" offset to clear the torque generator. My tank is just bolted to the under Sid if the hood just in front of the fuel tank. The pump mount is the worst mine looks as cobbled as it is. Tractor steers with the loader easily. I still need tone slightly moving as my belt will slip under heavy load and I didn't engineer enough tension adjustment into the mount.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 2020 at 8:44am
Sunday and I finally got some time to tinker with this a little. There are just too many things around a farm that need attention this time of year! Grass that needs mowing, Cub Cadets that need oil changes, varmints......

I welded up the shaft where it was worn going through the support and filed it back round. Used the quadrant for my gauge. That took a little time but not too bad. For some reason, I kind of like doing this.

Got the torque-generator loosely mounted for mock up purposes. Did some measuring and some ciphering and came up with one foot needed removed, quick measurement of the other two 45's in the shed and a trip to the power hacksaw and three pieces. Brought the two pieces to be used to town for a paint job and to fit the new steering wheel.

That's it for now. I did get most of the mowing caught up so I should have time to tinker with it some this week.


Edited by IBWD MIke - 01 Jun 2020 at 8:47am
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2020 at 8:54am
If I recall correctly, I had this update done the day the site crashed. Got the lower steering rod and torque generator mounted and hooked together. Always a little trepidation when drilling for the roll pin, it's really easy to get off coarse and I did have to 'massage' the hole just a bit with a small file, not much but some. Also if you look closely you will see I changed the bolts holding the TG to the mount from hex-heads to socket-heads. Much easier to work with.

Hopefully I get the rest of the garden planted/taken care of today and I can concentrate on this this weekend.


Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3236
Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2020 at 9:27am
lets see your tank and pump mounting,thanks hud
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3236
Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2020 at 9:30am
where did  you get your componants ?  or what were they off of?
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2020 at 1:21pm
HudCo, we are getting close to mounting the pump and reservoir. I'll get pics when I do. I installed the two grove pulley on the crank a few years back when the engine was out for a rear main seal job. The thing that keeps slowing me down is continuing to find things that need cleaned-up/painted as I go along. No better time to do it than now. Today the steering support and hydraulic, starter, and choke levers got removed for the paint process. Stopping there for now, I have a shifter in the basement that is going to get gone through and installed at some point in the future.

These components came from a WD I bought a few years ago, basically for the power steering. Compression was low on the engine so it turned into a parts machine.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2020 at 8:47am
Time for a quick update before I head for the farm to continue on this thing. I have been experiencing a lot of three steps forward and two back. Seems to no end of the small parts I see and think, now is the time to pain that. There is no real time-frame that I 'need' this tractor. Local antique power show in August has already been cancelled.

HudCo, that pump mount has fought valiantly! I 'think' I'm happy with it now, it took LOTS of massaging to get it right. I had painted it last year, by the time I was satisfied with the fit the paint was damaged pretty bad so I stripped it back to shiny and repainted it.

One little note about this mounting; the set-up came off a WD with the three inch head and is going on a 45. Not a lot of difference but not a direct swap either.

I thought since I'm painting, these lift links for a 50 series plow just as well get some too. They have been laying on the bench taking up space long enough need to get them on the plow and out of the way!

Couple of pics of my progress.






Edited by IBWD MIke - 12 Jun 2020 at 8:50am
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2020 at 7:39am
Spent quite a bit of time working on this on Friday, planning on the same today. This power-steering install has somehow turned into a quasi paint job. That wasn't my original intention but no time like the present. I would probably get this thing back together a lot faster if I would quit tearing it apart. I wasn't happy with the paint on the fuel tank, may have been in a hurry when I did the propane unconversion. So it came off for a little facelift.

How far do you go with something like this? I keep looking at things that could use a fresh coat of paint, like that starter. It may come out today for it's paint!

When getting ready to paint the reservoir, how do you suspend this silly thing? Answer, drill a 1/8" hole in one ear of the wingnut.





Edited by IBWD MIke - 13 Jun 2020 at 7:41am
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2020 at 8:09am
Let the reassembly begin! Finally got done cleaning and painting,(for now) and am getting things back together. Pump and reservoir are mounted, hope the belt is tight enough. I bought new hose for the returns and had a new pressure hose so all should be well there.
Bought enough hose that I can replace the sad ones on the other tractor also. I believe I have the leak in that system under control so will move the reservoir to the valve cover also.


Back to Top
Ted J View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted J Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2020 at 9:16am
I haven't been on here Mike, so I have missed this whole thing.  I didn't have any internet at the farm so I miss a lot all summer.  Now I can get internet through my cell phone so I should be on here more.

Looks like a lot of 3 steps, 2 steps.  You're right, but you're headed down the right road.
NICE JOB!!

When are you headed up to get some more beer?  That looks like a dry hot job and can bring on a big thirst.....Big smile
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1218
Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2020 at 10:24am
Originally posted by Ted J Ted J wrote:

I haven't been on here Mike, so I have missed this whole thing.  I didn't have any internet at the farm so I miss a lot all summer.  Now I can get internet through my cell phone so I should be on here more.

 Ted is that a good thing, just saying.Cool
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3409
Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2020 at 1:27pm
Ted, not sure when I'll next get to your lovely state. I would like to go to the Barboo antique power show this August, (I think it's in August). The last I saw it is still on. Went to it three years ago, great show!
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.076 seconds.


Help Support the
Unofficial Allis Forum
