WD crankshaft parts
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Topic: WD crankshaft parts
    Posted: 23 Jan 2025 at 3:12pm
The crankshaft pulley does not appear to be broken in any way.  But there is another part that goes over the top of the pulley and has 4 set screws that attach it to the pulley. What is this part for and how do I know what the tolerances should be or how should it be adjusted to the crankshaft pulley?
Back to Top
Sponsored Links


Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8675 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2025 at 5:22pm
That is the pulley used in the Charr-Lynn power steering kit back when you could but a complete setup. You can use a factory p steering pulley instead if you can't get the 4 set screw add on to work.
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2025 at 9:49pm
So I think that the bolt fell out for some reason.  I plan on trying to just put it back on with a new bolt.  Is there any reason that won't work or a problem I'm not thinking of?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2025 at 9:52pm
The bolt that secures the OEM crank pulley to the crankshaft snout is a special pointed nose bolt with an Allen head to fit under that power steering pulley that was added on. If the tractor doesn't have power steering anymore, remove that add-on pulley.
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2025 at 10:17pm
Originally posted by SteveRogers SteveRogers wrote:

So I think that the bolt fell out for some reason.  I plan on trying to just put it back on with a new bolt.  Is there any reason that won't work or a problem I'm not thinking of?

 I thinking it take a special bolt with a locking nut if I remember right, but it has been awhile ago when I had to redo one, I'll look and see if I've one on the parts shelves if I remember the next time I'm in the shop.


Edited by Kenny L. - 23 Jan 2025 at 10:21pm
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 8:09am
Thanks for the information.  Thanks for checking to see if you have one.  If you don't, do you have any idea where I might find one?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 9:37am
Is there power steering on the tractor??? yes or no ??
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 10:21am
yes
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 10:25am
OK. So, you must use the setscrew and jam nut required to use the power steering pulley. You cannot use the original setscrew AC used, as it is too tall.
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 10:27am
Ok, thanks.  Any ideas where I can get one?
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8675 		Post Options Post Options   Thanks (1) Thanks(1)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 10:40am
search WD45 crankshaft pulley....you can buy new 2 groove pulley with set screw. Don't cry about the cost. Be glad it's available.
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 10:51am
Thanks,  I was beginning to think I might have to do that.
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5905 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jan 2025 at 11:18am

The original WD-45 Factory 2 belt Pulley for Power Steering is 70 227395.

The Setscrew P/N is 70 918410

G
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2025 at 3:59pm

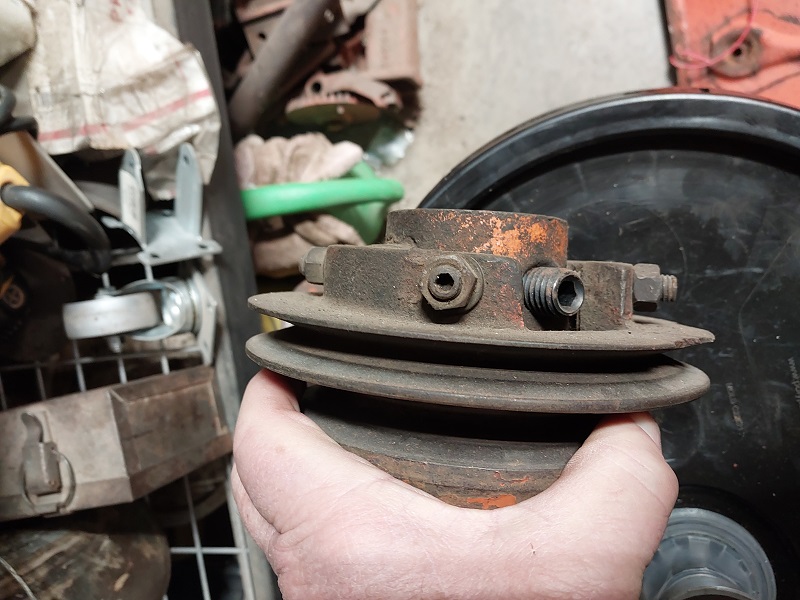

does your pulley look like this on.
Back to Top
SteveRogers View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 Jun 2023
Location: Geneseo, IL
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveRogers Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2025 at 7:53pm
Yes exactly.  Is there any special way to set the Allen screws?
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8675 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2025 at 9:16pm
I'd assume you keep working with it until you get the least wiggle wobble out of it.
Back to Top
ekjdm14 View Drop Down
Orange Level Access
Orange Level Access


Joined: 20 Aug 2024
Location: Alsager UK
Points: 987 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ekjdm14 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2025 at 7:55am
Originally posted by SteveM C/IL SteveM C/IL wrote:

I'd assume you keep working with it until you get the least wiggle wobble out of it.

I suppose in theory you could chuck it up in a lathe & clock the OD of the pulley groove but not likely to be THAT critical. Main issue would be locating/making a suitable set screw to hold it in place.  Assuming the snout of the crank/ID of the pulley are still good I'd probably consider tapering the end of an Allen set screw to engage the crank & fit with red Loctite along with the lock nut which may have been lost originally (But then I am notoriously cheap & it might be "safer" for the crank long term if you bought the correct 2-groove pulley just in case there was something going on with the original).


Edited by ekjdm14 - 27 Jan 2025 at 7:58am
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2025 at 12:41pm

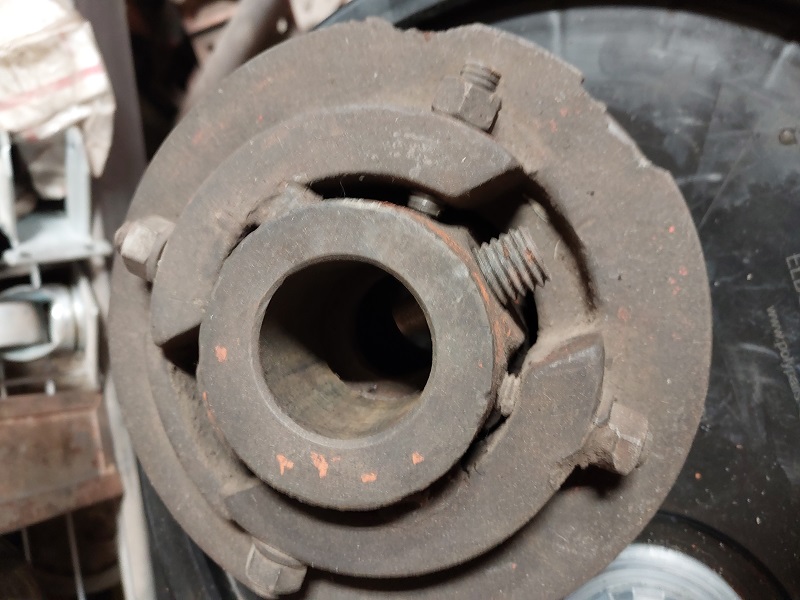

If it was me I would buy the factory pulley, the char-lynn pulley has a tenancy of the set screws coming loose. I got the set screws I use from a farm store and use lock nuts, you must try and get it centered and have the pulleys line up also ( it can be a bear cat) as you can see I put some weld on this one. I'm pretty sure that the setscrew P/N 7091840 is NLA I had my weld shop make me some from setscrew I got from a farm store. HTH
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2025 at 1:43pm
I'm skeptical that the nose of the crank and the pulley that spun on the nose of the crank are much good after all of that.
Back to Top
