 Topic: Loader Model # ???
Posted: 28 May 2024 at 3:29pm |

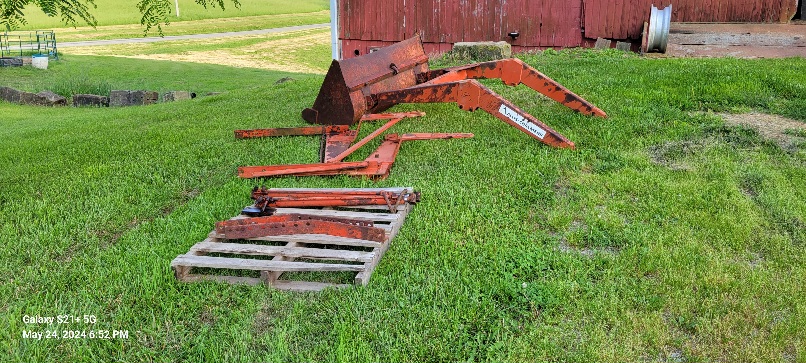

What model loader do I have here ?
Edited by Macon Rounds - 28 May 2024 at 3:29pm
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
 |
|
Sponsored Links
|
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2145
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2024 at 3:30pm |
|
It was on an Allis 175.
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
8070nc
Orange Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 505
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2024 at 5:03pm |
|
We had 500 that looked like that. Looks like the tilt cylinders are on the bottom like a 500
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
8070nc
Orange Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 505
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2024 at 5:04pm |
|
Bucket tilt
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
Harvey/pa
Orange Level
Joined: 11 Sep 2009
Location: York Co. Pa.
Points: 1016
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 May 2024 at 8:49am |
|
had one like that on my 175, it came off a 200. think it was a 519??...Harvey
|
|
Boss Man
Orange Level
Joined: 03 Mar 2018
Location: Greenleaf, WI
Points: 616
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 1:02pm |
|
Been a long time but I'm thinking it's a 400 series. If memory serves the 500 had the hydraulic reservoir built into the uprights, the 400 didn't
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5392
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 4:54pm |
|
Boss Man
Actually it is the other way around.
The 400 Series Example 445, 414, 415, 417, have the hyd. oil in the L/H upright and the Tilt and Lift Control Levers mounted on the left side.
G
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20528
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 6:29pm |
|
Someone recently had scanned a page from the loader price book that showed all the different models and versions. I submit that there was a 500 series with a tank in the left tower, a front pump and a control valve. This loader would have fit older D-17's and all D-19's with a change to the rear axle brackets.
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2145
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 6:35pm |
|
This one has the tank in the left loader bracket but it was never used.
It was on a 175 and they used tractor hydraulics and control valves.
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5392
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 6:42pm |
|
Dr.
You are right. The Allis Parts Catalog D47 does list A Model 517 and 519 along with the 400 Series 414, 415, and 417 with the Frame Hydraulic Oil Reservoir.
G
|
|
Clay
Orange Level
Joined: 11 Sep 2009
Location: Udall, Kansas
Points: 9339
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 10:08pm |
 DrAllis wrote:
Someone recently had scanned a page from the loader price book that showed all the different models and versions. I submit that there was a 500 series with a tank in the left tower, a front pump and a control valve. This loader would have fit older D-17's and all D-19's with a change to the rear axle brackets. |
Our D-17 has the loader setup Dr Allis listed. We had it put on by our local Allis Chalmers dealer, around 1970. We still use the tractor and loader daily. Never had any problems with the frame cracking. Replaced the pump, control valves and rebuilt the cylinders.
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4926
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2024 at 10:22pm |
|
I have a 460 and the sump is in the left hand side upright.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2145
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jun 2024 at 7:50am |
This one has the tank in the left loader bracket but it was never used. It was on a 175 and they used tractor hydraulics and control valves.
Edited by Macon Rounds - 02 Jun 2024 at 7:53am
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20528
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jun 2024 at 7:57am |
|
The easiest way to absolutely determine a 400 series over a 500 series, is the cross bar that goes over the top of the hood that connects the vertical towers together. On a D-17, you must remove the cross bar to remove either engine hood. The cross bar is very close to the hoods. On a 500 series the cross bar is raised up probably 3 inches more (taller towers) allowing you to remove hoods without unbolting the cross bar.
Edited by DrAllis - 02 Jun 2024 at 8:25am
|
|
