 Topic: Allis 620 rectifier and voltage regulator problem
Posted: 29 Aug 2019 at 11:56am |
|
I bought a non functional Allis Chalmers 620 garden tractor. I'm putting the Onan CCKB together and need to replace the broken rectifier and voltage regulator. These two parts seem hard to find and pretty expansive. Has anyone replace them with something else? Is there a single module replacement available without too much modifications? Any help would be appreciated.
|
 |
|
Sponsored Links
|
|
|
TimCNY
Orange Level
Joined: 15 Apr 2014
Location: Upstate NY
Points: 1551
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2019 at 5:56pm |
I just replaced one on my 4020 Ingersoll powered by an Onan P-220. $42.95 shipped, could've gone cheaper but this was recommended by many others. The exact same part $85.00 from the local dealer and other local sources. Initially a neighbor took one off his Onan-powered bandsaw mill, but I bought this one and returned his. https://www.ebay.com/itm/Oregon-Replacement-33-411-Voltage-Regulator-Onan-191-1748-191-2106-191-2277/123840830431?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649Not sure if it's the same as yours requires, but I hope this helps.
|
|
MichelM
Bronze Level
Joined: 16 Jul 2019
Location: Quebec
Points: 6
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Sep 2019 at 10:09am |
|
Thanks for the reply. Mine is the 2 pieces setup. I have a separate rectifier and voltage regulator. Has anyone done the conversion from the 2 pieces to a single module and what modifications need to be made?
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5127
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Sep 2019 at 8:07pm |
|
I had to replace my stator, rectifier, and voltage regulator due to a deck fire from the previous owner. Your right, not cheap. Over $300 if I remember correctly. That was 8 years ago so I am sure prices have went up. I was doing a restoration so I did not go beyond factory parts. I’m sorry I cant help you with your question.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24336
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Sep 2019 at 8:27am |
OK you have...
SR-------->VR--------->key switch
rewire as...
COMBO----------------->key switch
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
MichelM
Bronze Level
Joined: 16 Jul 2019
Location: Quebec
Points: 6
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2019 at 3:25pm |
|
Thanks Jay for the reply. Where would the third wire coming from the stator go? Do I just ignore it?
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24336
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2019 at 6:11am |
3rd wire ? hmm, I'd have to see a diagram of the setup. My 'hunch' is that the stator has a ground wire, and 2 'outputs'. In electrical terms it's a 'center tapped' tranfomer.
---------> AC
| | ---------> GND | | ---------> AC
Both AC terminals go to the 'rectifier/regulator' unit GND is connected to ground
Some B&S engines have the GND connected to a stator mounting screw (under the flywheel), some don't have the 3rd connection , so having a wiring diagram is really helpful. I'm more familiar with B&S stuff, sigh, 33 years worth....but electrical is electrical...
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
MichelM
Bronze Level
Joined: 16 Jul 2019
Location: Quebec
Points: 6
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2019 at 8:50am |

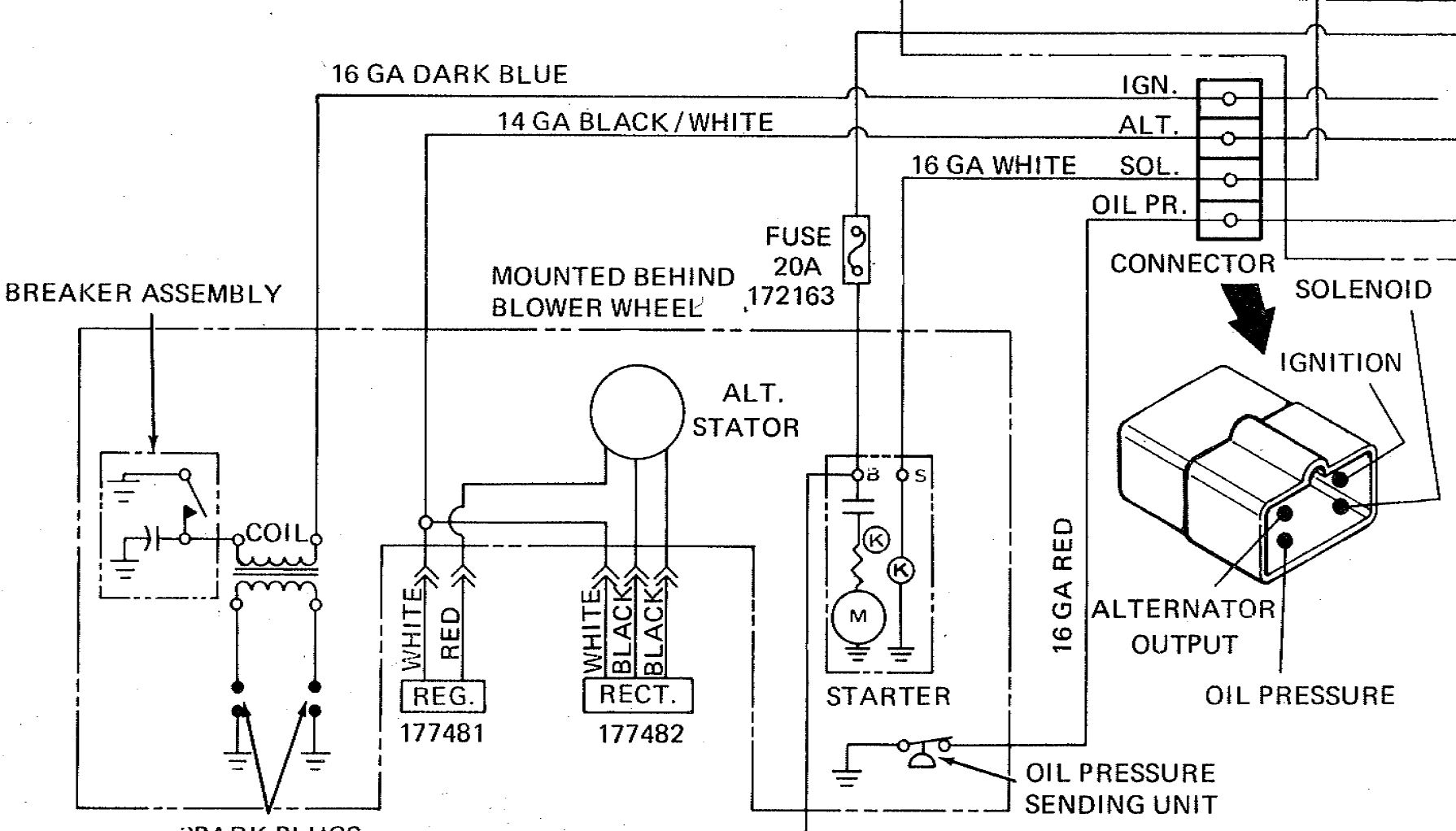

The setup is weird or I just don't understand it. Attached is a picture of the wiring diagram.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24336
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Oct 2019 at 6:11am |
great that helps but need to see where thet 14 ga balck/white wire goes right of the connector labelled 'sol.'. Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24336
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Oct 2019 at 7:17am |
Ok, I did some 'surfing' and 'thinking'....
What I would do... connect the 2 black wires from the stator to a 'rectifier/regulator' module AC terminals then connect the 'rectifier/reg module' + terminal to the white wire of the original 'rect' module connector
disconnect and tape up the red wire from the stator remove original 'reg' unit tape up the white connector of the 'reg' unit.
in short.. remove 'reg' module and tape up those wires, replace the original 'rect' module with a 'rect/reg' module.
clear as mud ?
any problems, I'll try to draw a picture... Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
MichelM
Bronze Level
Joined: 16 Jul 2019
Location: Quebec
Points: 6
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2019 at 1:00pm |
|
Thanks Jay, I'll try this when I have a little bit of time. I had to put this project on hold until I finish remodeling my basement!!! BTW, the b/W wire goes to the ignition switch on the accessories position. Thanks a lot.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24336
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2019 at 3:26pm |
|
yeah 'projects'.... the ones WE want to do ALWAYS come 2nd to those 'she' wants done.....lol,hahaha,btdt....
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Coke-in-MN
Orange Level Access
Joined: 12 Sep 2009
Location: Afton MN
Points: 41819
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Nov 2019 at 11:28pm |
https://www.facebook.com/photo.php?fbid=2630034083683627&set=g.2314599211&type=1&theater&ifg=1
You can get this Bridge Rectifier which is good for 600 V / 400 A
KCP 3506 2 wires go to alternator 1 to ground and 1 output to battery It is a common part in electronics and a solid state unit - may not need a heat sink but can be used with one . Cost from $4 to $10 - might need a zener diode also to bleed voltage over 13.6 but will work without also .
