WC Tie Down Ideas Please!
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
KenBWisc View Drop Down
Orange Level
Orange Level


Joined: 15 Sep 2009
Location: Fall Creek, WI
Points: 1185 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KenBWisc Quote  Post ReplyReply Direct Link To This Post Topic: WC Tie Down Ideas Please!
    Posted: 14 Oct 2015 at 7:58am

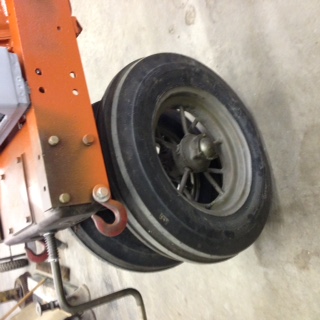

Before I paint I want to be a bit more pleased with my tie downs on my WC. Not sure I shouldn't go with I-bolts and place them behind the tires versus in front. What say yous guys?

'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
Back to Top
Sponsored Links


Back to Top
Dusty MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5060 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dusty MI Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 8:22am
We haul our car on my tractor hauling trailer. Because cars have springs I find it is much better to just lasso the wheels with tie down straps.
So now I do the same with my tractors.

Dusty
917 H, '48 G, '65 D-10 series III "Allis Express"
Back to Top
Tom IA View Drop Down
Silver Level
Silver Level
Avatar

Joined: 17 Sep 2009
Location: Donahue IA
Points: 255 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom IA Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 8:32am
I put eye bolts in the front motor mount holes ,have never had a problem
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 5052 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 9:58am
On a tractor with good paint, I use these inexpensive straps from Harbor Freight.

If the trailer is short, I put one between the front wheels and chain towards the back. I put another around the drawbar and chain towards the front (all chains underneath the tractor).

On a longer trailer, I still put the strap between the front wheels, but I turn them to the front of the tractor (It works for towing, too.) and a clevis in the drawbar with it chained to the rear.

The straps are a lot more forgiving than chains!
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8550 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 10:11am
I used a chain hook on the angle iron cross member for the front engine support. Just reach up under the back of the angle hook the hook over the top lip, slid it up to the frame rail, and then angle the chain forward and down to the trailer pocket with a binder on both side. If it did scratch the paint its up under the tractor where it is not seen. I was going to add something for tie down also but didnt like the idea of the extra appendage.
Regards,
Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Dan73 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 04 Jun 2015
Location: United States
Points: 6054 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dan73 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 10:20am
With a hand crank it might be harder to do but I was thinking of putting a 2 inch receiver on the front of my farmall h when I restore it. The tricycle front end with a hitch is just soo handy for backing a trailer up. It would also double as a tie down point.
Back to Top
Butch(OH) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lucerne Ohio
Points: 3842 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Butch(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 10:34am
When I haul a tractor the order of importance for tie downs is A- Secure load, B-Passing inspection, C-Protect paint. Others differ.

Personally I am with Chris, extra tie down hooks etc are just a non OEM part that still has the paint knocked off of it from the chains. I am not sure that straps will cut the mustard with DOT? I have heard both ways. The hauler we use at my company says no way Jay! straps will not pass a DOT inspection.
We tie the back end of the WC down using the drawbar bale to cross chain. The front end we tie down by either hooking a chain under the frame rail as Chris described or we have looped a long chain behind the pedestal and over the tires with binders on both sides. Neither is technically legal but it is secure and looks legal for "drive by" DOT inspections.
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6369 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 10:59am
I use eye bolts.
On the WD I put 2 eye bolts on the front cross member
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 42018 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 11:20am
The tied down should be 4 point and securing device strong enough in rating to hold the weight of the load .
 Straps will work IF rated as tie-downs - look at the strap load binders on flatbeds where a end is secured into winch device on edge of flatbed .
 HF straps (2") I used for securing pipe onto trailers or in dump box but not for hauling equipment . There DOT rated chain is used with proper chain binder .
 Rather than the slip hooks shown in picture - use a grab hook to secure chain into it .
Lat week just down the road from here a guy lost the trailer off his 3/4 ton PU while hauling a larger skid steer , machine and trailer in ditch - machine still partially attached to trailer but both laying on side - well skid loader was fully horizontal to ground with chain hanging from it .
Life lesson: If you’re being chased by a lion, you’re on a horse, to the left of you is a giraffe and on the right is a unicorn, what do you do? You stop drinking and get off the carousel.
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 5052 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 2:42pm
I know we are getting off the original subject of this thread, but the requirement of four point tie downs are for equipment weighing over 10,000 lbs. Loads under 10,000 lbs. require two tie downs.

Straps are acceptable tie downs, as long as they have a rating to meet the load.

Here is a very good link to the US Department of Transportation's Drivers Handbook for Cargo Securement.

Chapters 9 & 10 talk about securing equipment. Chapters 1 & 2 have great general information about securing cargo and acceptable tiedowns. Appendix A has info about Working Load Limits (WLLs) of different tiedowns.
Back to Top
ksbowhunter View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Aug 2014
Location: Newton Ks.
Points: 212 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ksbowhunter Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2015 at 3:23pm
Here is an idea also
2-37 WC
37 wf127
37 wf130
Back to Top
KenBWisc View Drop Down
Orange Level
Orange Level


Joined: 15 Sep 2009
Location: Fall Creek, WI
Points: 1185 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KenBWisc Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2015 at 11:28am
Thanks to all!
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
Back to Top
Dusty MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5060 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dusty MI Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2015 at 1:44pm
Originally posted by WF owner WF owner wrote:

I know we are getting off the original subject of this thread, but the requirement of four point tie downs are for equipment weighing over 10,000 lbs. Loads under 10,000 lbs. require two tie downs.

Straps are acceptable tie downs, as long as they have a rating to meet the load.

Here is a very good link to the US Department of Transportation's Drivers Handbook for Cargo Securement.

Chapters 9 & 10 talk about securing equipment. Chapters 1 & 2 have great general information about securing cargo and acceptable tiedowns. Appendix A has info about Working Load Limits (WLLs) of different tiedowns.

It says 2 tie downs at front and rear. I take that to mean a total od 4 tie downs.

Dusty
917 H, '48 G, '65 D-10 series III "Allis Express"
