Rebuild of my Allis barge box more pic 9-19

That is all the pictures the forum will let me post I'll try late to post more of them

Looks like you've been busy since I was there Thursday!

Gleaner missed the boat. They should have made a galvanized box with their name standing proud from the front or long rides of the box like their early combines. I think the oval/diamond panel of the Allis Chalmers boxes are the rarest of rare and way cool. I wish I had a few of them. Truly, a great project you have.

2-8070FWA PS/8050PS/7080/7045PS/200/D15-II/2-WD45/WD/3-WC/UC/C

Thanks all for the comments.

Mike after you left went in town pickup the hardware I need and start to work on it and before I know it it was midnight, Friday morning had to go get acetylene and oxygen work on her until 8:30 that night finish it up Saturday morning then put rear brakes in the daughters suv in the afternoon, I wanted to get it this far before I go to work for the neighbor this spring.

AC I'm not sure what I'm going to do, I don't know

about prep work or paint but have talked to some people that do know, what sad I've a nephew that does it for a living but willn't do it for me but will give advise, I've talked to my Napa guy and he told me he can still match the #2 paint but don't know for how long so I need to make up my mind what to do probably will get the paint and if I decide to let someone else do it will have the paint any way.

Unit3 that would've been way cool if that happen, we need to get together some time bet we're not the far a part I live out side of Winthrop Ia.

JohnCO The wife family used MM the sign came out of the old dealership in Scotch Grove Ia.

i rebuilt a wagon box (not AC) in shop class when in HS. was all wood. i built a platform on the front to stand on to scoup feed off when full. was only used to hold feed in the cattle yard. would have worked well cept i was sick one day of school and the instructor sawed the platform off when i wasn't there! (^#$%@&%*) when i came back and saw that...needless to say...the school paid for more lumber! yours looks great!

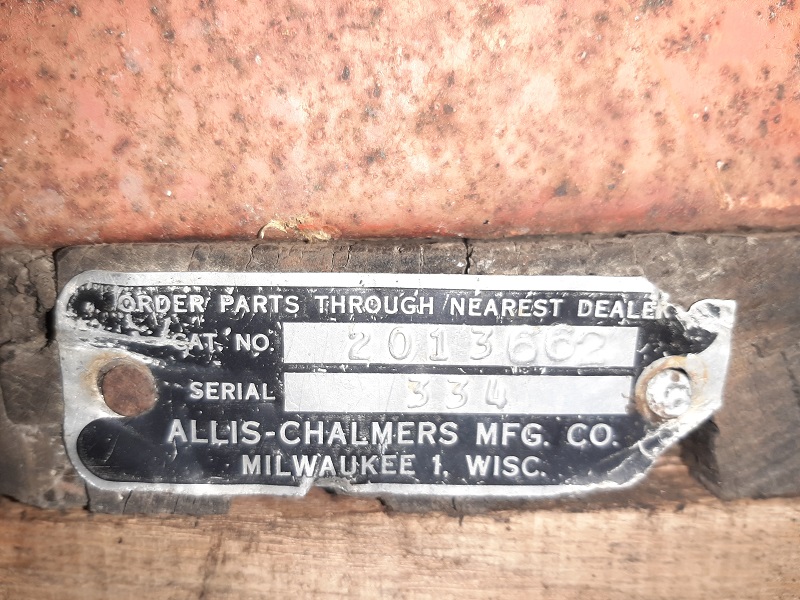

This has been put on the back burner for now, I was supposed to help a farmer this spring but ended up burning my leg from my ankle to my knee about a week later I messing up my knee from the knee to the upper leg, go for a mri next Tuesday ( getting old sucks), I'm going to try to go to work Monday and see if I can handle it. Adding a picture of the serial number plate.

Edited by Kenny L. - 01 May 2021 at 10:06pm

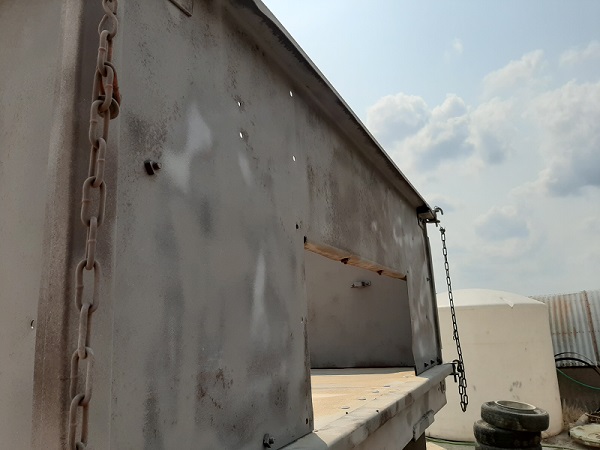

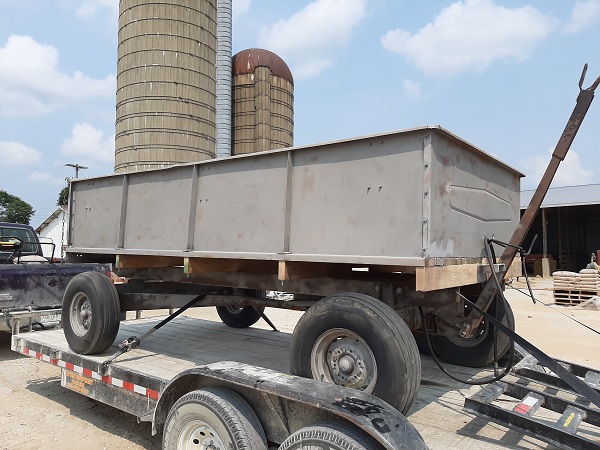

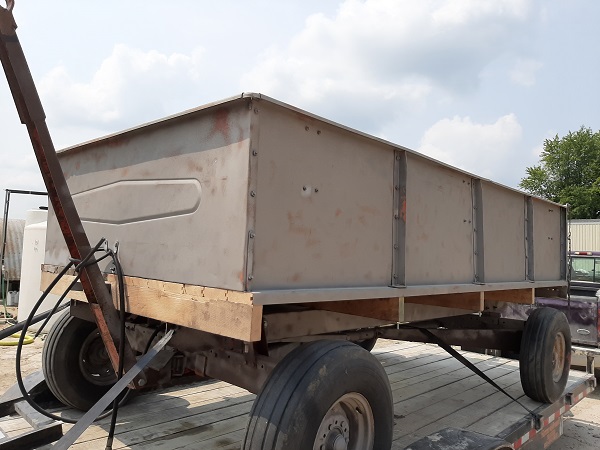

Done more work prepping wagon for painting, the only thing left is to finish is the under side of the front of wagon with plastic and one bracket in the rear then it will be ready to go to the painter after labor day. After doing this wagon I don't think I'll

ever do any more it sure take a lot of time and money. Big smile

Edited by Kenny L. - 12 Oct 2021 at 8:17pm

Kenny, Oreilly can mix paint as well. I had the marion one mix spray can's of Persian II for the d15's final drives but they can also do regular cans. I believe Independence mixes paint as well.

AC7060IL wrote:

Kenny L, Yes, you’ve done alot of work to your AC barge wagon. It’s looking great. Going be awesome when it’s finished. An AC barge, AC hoist, & AC gear - that’s quite the combination. Nice cream paint on its rims. 14 or 15” rims? AC 701 gear - right? Thanks for posting updates.

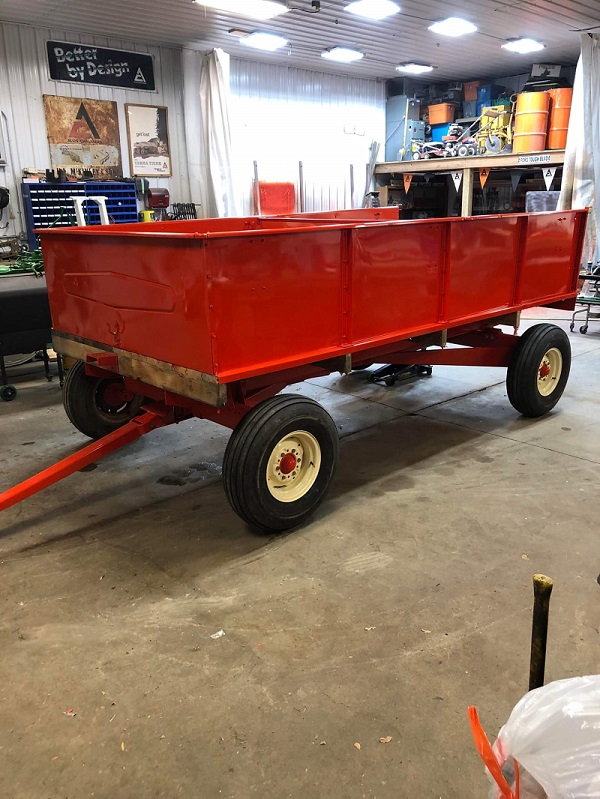

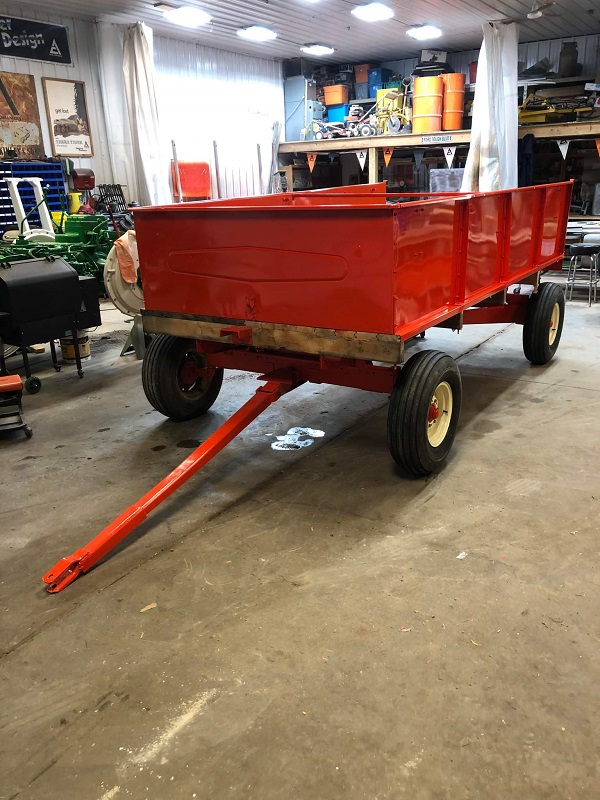

AC7060, The rims are 14" and yes the gear is a 701, Ryan Franzen is painting it for me and talk me into repainting the rim I had painted them before I took the wagon up to him and I'm glad he did they look a lot more like they should, it would had been done but his wife decide it was time for there son to be born the day he was working on the box.

looks good Kenny

Wow! Very nice!

sometimes I walk out to my shop and look around and think "Who's the idiot that owns this place?"

Looks to purty to haul grain! Maybe a load of pumpkins, but you'll have to make sure them pumpkins is polished up, too! Wink

Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!

Really nice work, I don't know if it would be original but I think some lettering in that raised oval or diamond area would look cool.
