Topic: Allis D17 won't move in 1st gear
Posted By: pre64
Subject: Allis D17 won't move in 1st gear
Date Posted: 02 Jan 2012 at 10:52am
I recently purchased an early series 4 D17 from an individual and he told me one of the problems was it would not move in first gear. He thought his grandson had took the top cover off at one time and the forks were not lined up correctly. Since then I have pulled the cover numerous times in an attempt to fix it but it still appears to lock up. All other gears work fine. Even with the cover off and all gears placed in neutral I will slide 1st gear into place and try and move the wheels but they will not. Any ideas on this?



Replies:
Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 11:13am
I would have to go look at one of mine with the tranny open, and will later today, but my guess is, it isn't the 1st gear that's the problem, but another collar that is 3rd or 4th or reverse.  What I bet is happening is that in 1st, either 3rd or 4th, or rev. is still engaged, and creating the bind, but in 2nd 3rd 4th or R, the bind doesn't exist.  But again, I have one open and will go look, will be later today.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 11:13am
BTW Welcome to the greatest Allis Forum on the web, great bunch of folks here.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 02 Jan 2012 at 11:20am
I wondered about that also however with the cover off and all gears in neutral I can manually slide first gear into position without disturbing the others and it will lock up.


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 5:46pm
So I looked at the tranny I have open, and no amount of thinking could figure out how any combination of gears, frozen collars, or seized bearings could account for your situation.  So I looked at the shift tower, and maybe you have a detent spring broke or the reverse interlock isn't working correctly.  What I would do is take your shift cover and put it in a vice LIGHTLY, then run it through the gears, making sure only one fork moves any direction at a time.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 5:51pm
So I just read your last post, let me look again at a possible 2nd gear seized to the shaft.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 02 Jan 2012 at 5:58pm
Already put it in the vise and tried all the positions. All looks good. In your trans will the reverse gear in the forward most position clear the first gear above it? I don't think it looks right and am wandering if this thing had been split and not assembled correctly. Never seen one like this before and have been around them for a long time.


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 6:04pm
OK, where is your reverse gear, all the way forward, rearward, or in the middle somewhere?  When I read your original post, I assumed you were driving the tractor under it's own power in anything but 1st gear.  Is this the case?  Even if reverse was in engaged it should stop the tractor in any other gear, but if reverse is mostly rearward, and seized to the shaft, or not seized, but the fork didn't engage the collar, when you put the cover on.  Getting the reverse fork into the collar while putting the cover on is a bit tricky.  I could see how putting it in 1st could lock it up.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 6:06pm
Is the collar on the reverse gear forward or on the back?  It will never clear the 1st/2nd collar gear, if in the forward position.  In the forward position, it is "in gear"  and the 1st/2nd gear needs to be centered.

The collar for the reverse gear should be on the front


-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 02 Jan 2012 at 6:39pm
when I assemble the cover and put all gears in neutral the reverse gear is all the way forward. And yes I will drive fine in all gears except first. Even reverse is fine.


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 6:42pm
That's your problem, reverse "in gear" is forward on the shaft, and "out of gear" is rearward on the shaft, to put it a little bit better, when the 1st/2nd collar gear is centered, the reverse gear should be rear of it, to be out of gear, and lined up with it to be in gear.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 6:44pm
My guess is the reason that the tractor drives in all other gears is that the edge of the teeth of the reverse gear have been chewed off so that it will clear when ALL the way forward on the shaft, which it should never be during normal operation.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 02 Jan 2012 at 6:51pm
Sorry about the last post. When I put the cover on with all gears in neutral the reverse gear is all the way to the rear not the front.


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 7:15pm
Well, then you have me stumped, can you post a good quality picture of the gears?

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 02 Jan 2012 at 7:24pm
I will get a couple in the morning and post them. Thank you for all your help on this. This one has been a challenge. I am wandering if this thing has been split before I got it and something is together wrong. I have another D17 that needs to be gone through yet but don't have room for it in the shop until this one is done. Thanks again and I will post the pictures in the morning.


Posted By: Orange Blood
Date Posted: 02 Jan 2012 at 8:11pm
That's why I asked for the pictures, we can tell real fast if its together right.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 03 Jan 2012 at 7:34am
Here is a picture of the gears in neutral and also the top cover with shift forks in neutral.
Thanks for your help.
Tim



Posted By: pre64
Date Posted: 03 Jan 2012 at 7:35am
shifter forks in neutral




Posted By: SteveM C/IL
Date Posted: 03 Jan 2012 at 10:01am
Best I can figure,when 1/2 sliding collar is slid back to 1st  positiion it is engauging reverse  idler which means reverse idler is not slid back far enough to clear.Can you position things with the top off to get reverse idler out of the way? I can't remember how this works and the pics don't let me see enough,but the idler has to engauge both counter shaft and straight gear on 1/2 collar to get reverse.doesn't the 1st gear position have the 1/2 collar spinning the reverse idler since it wouldn't be engauged with the cluster gear?If so,the idler still has to be reward enough to not engauge the counter shaft?. I'm as confused as you now! Something don't add up. I can't see the sleeve on the idler shaft to the rear of the idler but that don't mean it's not there.


Posted By: DrAllis
Date Posted: 03 Jan 2012 at 11:48am
With the reverse idler gear shoved rearward as far as it will go, you should be able to "spin" it freely.....if it is still engaged with the gear on the lower shaft, there is an assembly problem with that lower shaft and gear and spacers??


Posted By: pre64
Date Posted: 03 Jan 2012 at 12:28pm
Dr. Allis,
If that is the case then we have found the problem. When I slide the reverse gear all the way to the rear, looking down with a flashlight it is still engaged by at least a 1/4" to the lower gear. I will send a picture of it as well. Not sure if you will be able to see it or not.



Posted By: pre64
Date Posted: 03 Jan 2012 at 12:32pm
Steve,
Your response is in the post with Dr Allis. Didn't want you to think I was ignoring yours.
Thanks
Tim


Posted By: SteveM C/IL
Date Posted: 03 Jan 2012 at 12:38pm
Is the bottom shaft flopping for and aft,as in rear bearing clear gone? No matter what... this one gets split to fix it.

    Let us know how this turns out please.


Posted By: pre64
Date Posted: 03 Jan 2012 at 12:43pm
I don't think so Steve. I am guessing that an amateur has taken this apart and did not set it up correctly before this sucker bought it. When the guy told me that his grandson had taken the top off of it I assumed that the fork had missed the reverse gear when he dropped it in. Oh well, least the shop is warm.
 As soon as I get this split and apart I will post some photos for all to see incase this ever happens to someone else.


Posted By: DrAllis
Date Posted: 03 Jan 2012 at 3:10pm

 Is the bottom reverse gear installed so the rounded edges of the teeth are rearward so they mate with the rounded teeth on the idler???



Posted By: pre64
Date Posted: 03 Jan 2012 at 3:16pm
Yes I believe so. The other side of the gear you can see in the picture above and it is sqaure on the front side.


Posted By: Orange Blood
Date Posted: 03 Jan 2012 at 9:16pm
Looking at the wear on your gear train, I imagine one of the spacers on the counter shaft is either to thin, or for some reason worn down, which has allowed the reverse gear on the counter shaft to move rearward, only the thrust on the remaining gears due to the angled teeth keeps them in line.  It' either that, or as you suggest there are different spacers between series 1 and the rest, don't know the difference but if it has been torn apart, the correct ones could have been swapped.  It does appear in the parts manual that the spacer ahead of the revers counter shaft gear is narrower than the one behind it, by maybe a 1/4" or so, so if they were put back in the incorrect order, there is you problem.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: SteveM C/IL
Date Posted: 03 Jan 2012 at 10:11pm
I don't suppose you bought it cheap.....that would lessen the pain.Oh well, still have a GREAT tractor when fixed!


Posted By: pre64
Date Posted: 04 Jan 2012 at 6:31am
Yes I too believe the spacers on shaft are mixed up in their order. I plan on splitting it today if all goes as planned. I will be posting the results and pictures if possible so all can benefit from this. I certainly appreciate all who have helped.
Thanks
Tim


Posted By: DrAllis
Date Posted: 04 Jan 2012 at 6:52am
Many years ago, I actually replaced a bad countershaft bearing ( defective gearshift rubber boot let rainwater in) in a series 3 D17 without a complete teardown of the rearend. I removed the lift arm housing and internal cylinder and split it at the dashboard and from the front and back and the top it took two of us, but we replaced both countershaft bearings and cups. I'd think you might be able to swap spacers around the same way and save a lot of teardown time and labor.


Posted By: smokey
Date Posted: 04 Jan 2012 at 7:21am
pre64, in your picture of the cover I see what looks like 2 shim washers on the rail  in the book does not show them, and with the wear on 1st- and reverse idler leading edge's it don't look right,  the shims on the counter looks like the front spacer should be (0.868) and the rear should be (0.966)


Posted By: Orange Blood
Date Posted: 04 Jan 2012 at 8:07am
This morning I took an inspection mirror and looked at mine, the spacer in front is about 3/8" wide, and the one in the rear is about 7/8" wide, these are rough guesses as I couldn't get anything in there to measure them.  When the tranny is in 1st gear, the reverse gear should be all the way rearward up against the back mainshaft gear, and there was about 3/16" or maybe a 1/4" of clearance between the countershaft reverse and the reverse idler gear, with the spacers reversed, they would probably mesh.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 04 Jan 2012 at 11:46am
Well fellows we will know shortly. Just got it split and the power director off. As soon as I eat a bite I will be pulling the main shaft and working my way down. Should know something in a few hours.


Posted By: pre64
Date Posted: 04 Jan 2012 at 11:51am
Dr Allis,
Thanks for your tip. Don't ever recall doing one that way but it sounds possible. I have already spilt the tractor so I am going in and making sure everything else is correct as well as perform a good inspection. I am also hoping to take some pictures of the problem before and after it is corrected.
Thanks
Tim


Posted By: pre64
Date Posted: 04 Jan 2012 at 3:39pm
I didn't realize that the top gears would't come out the front. It has been 30 years plus since I have been in the transmission part of it. I was able to get the end gear and slider off but that is it. I also notice a brand new soft plug over the counter shaft that we suspected was the culpret. Imagine that. I am done for the day so tomorrow I will pull the drives and rear end so I can remove the pinion . I am hoping to get the top main shaft out of the way so I can get a clear picture of the problem for others to see. Hopefully it may prevent someone else from going through this headache. I don't know how you could ever do a major overaul on a transmission and not check your work during assembly.


Posted By: SteveM C/IL
Date Posted: 04 Jan 2012 at 10:07pm
some folks should'nt be parents and some should'nt be mechanics....but, that's the way it is


Posted By: pre64
Date Posted: 06 Jan 2012 at 2:17pm
I didn't get to work on this yesterday as planned, but I got it tore down today. Take a look at this picture and tell me if you agree with me the 2 spacers are reversed?
Thanks
Tim



Posted By: Dave (Mid-MI)
Date Posted: 06 Jan 2012 at 3:10pm
Yup.


Posted By: pre64
Date Posted: 06 Jan 2012 at 5:08pm
Dr. Allis
I see what you mean by driving out the counter shaft to replace the bearings and races. I think however it would be very difficult to slide the shaft out far enough to pull 2 gears and spacers off and change them around. If you work alone as I do I would say no, however if you had a couple of extra hands and they were small I would say maybe on a lucky day. Small hands and lucky days seem to flee from me however. I have posted a before and after picture of the spacers being in the wrong location. I want to thank you for all of your help. Hopefully others have learned as well.
Thanks
Tim


Posted By: SteveM C/IL
Date Posted: 06 Jan 2012 at 5:14pm
You'd have thought the person responsible for the mistake would have noticed it after together and groaned and fixed it.


Posted By: Gary in da UP
Date Posted: 06 Jan 2012 at 5:25pm
Originally posted by SteveM C/IL SteveM C/IL wrote:

You'd have thought the person responsible for the mistake would have noticed it after together and groaned and fixed it.


Yes, you and I think alike, but not everyone has to sign-off on their work or feels compelled to do their work to a standard.  Too bad , it causes a lot of grief for the innocent !


Posted By: pre64
Date Posted: 06 Jan 2012 at 5:26pm

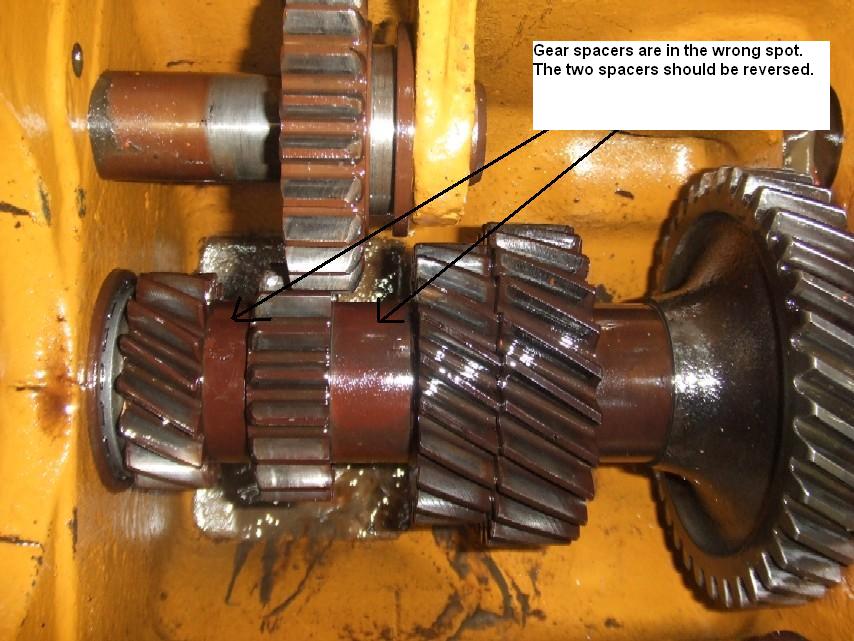

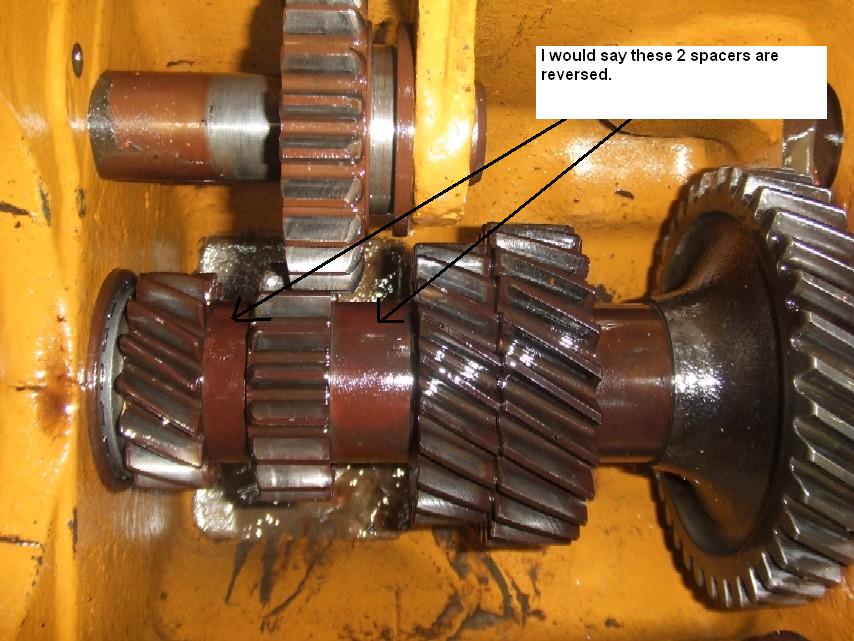

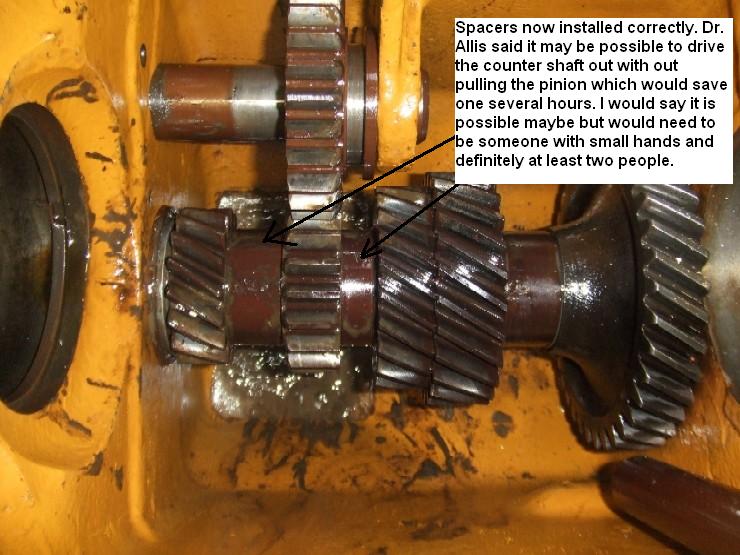

Here are the before and after pictures of the spacers on the counter shaft. My advise to all is to pay attention and take pictures of all of the parts if you are going to rebuild a transmission yourself. Some poor soul probably paid some several thousand dollars for this repair and it was done wrong.




Posted By: SteveM C/IL
Date Posted: 06 Jan 2012 at 5:33pm
well,the bright side to the story is you didn't have to buy hard parts to fix it


Posted By: Orange Blood
Date Posted: 06 Jan 2012 at 5:54pm
Glad you got it headed to working properly, sorry you had to tear into it so far, but as Steve pointed out, no hard parts, just a few gaskets and seals.

-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: pre64
Date Posted: 06 Jan 2012 at 7:23pm
I want to thank all of you for your input and help on this. Normally we always say it should be something simple....this time we proved the theory wrong. Other than buying some gaskets and seals cost wise won't be so bad but if I add my 4.50 per hour shop rate to it I will have to sell my dog. :) .
Thanks again
Tim


Posted By: allischalmerguy
Date Posted: 06 Jan 2012 at 10:13pm
I have been following this post, it has been educational and very interesting to me. Thanks for all the information and way to go Tim on getting it solved!!!!
Pastor Mike

-------------
It is great being a disciple of Jesus! 1950 WD, 1957 D17...retired in Iowa,


Posted By: Orange Blood
Date Posted: 06 Jan 2012 at 10:25pm
Hey Tim,

Where do you get $4.50, an hour from, I am lucky if I don't have to pay to work in my own shop? :-)


-------------
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7


Posted By: Chalmersbob
Date Posted: 07 Jan 2012 at 9:05pm
At $4.50 per hour, you can work in my shop any time you want to.
Glad to hear that you solved your problem, now on to the next. Bob


Posted By: Pat the Plumber CIL
Date Posted: 08 Jan 2012 at 7:46pm
Thanks for posting subject and pictures. This is why this is the best site on the internet

-------------
You only need to know 3 things to be a plumber;Crap rolls down hill,Hot is on the left and Don't bite your fingernails

1964 D-17 SIV 3 Pt.WF,1964 D-15 Ser II 3pt.WF ,1960 D-17 SI NF,1956 WD 45 WF.


Posted By: DaveKamp
Date Posted: 08 Jan 2012 at 7:57pm
Hee hee... isn't it cool that we can live vicariously through eachother's tribulation?  Better yet, we can post pictures showing it, just as we found it, and after, we fixed it...

Congratulations, Tim- job well done!  It may take small hands, but then again, it may be a case where special tools MAY knock that rascal out without breaking it all down.

I'll be working on a WD transmission in the future... the experiences shared here, along with the photos, will help me immensely.  Thanks Everybody!


Posted By: pre64
Date Posted: 09 Jan 2012 at 6:39am
Thanks everyone for the comments. Had it not been for this site and everyones willingness to aide a fellow Allis collector, things may have turned out much different.
  I will be posting a couple of more pictures this week of assembly and some pointers for doing the entire job alone that will hopefully aide some of you in the same situation. I work alone 99% of the time so I am use to developing tools and tricks for helping me through it.

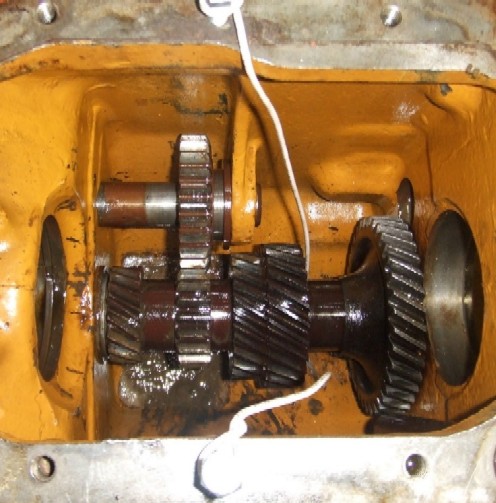

  I have now assembled the counter shaft gears and reinstalled the pinion shaft and main gears, and tried all gears to assure they are working correctly. I know a couple of you are wondering if I cleaned out the crud down in the housing that shows up in the picture and yes I did.
   I am at a stand still now waiting on seals and gaskets and hopefully will have them by the weeks end. More to come!
   Tim


-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.


Posted By: jaybmiller
Date Posted: 09 Jan 2012 at 7:51am
Man , what a painful learning experience( even from the sidelines ) !
I've always been impressed with the knowledge that you guys freely share and those 2 pictures showed WHY we should always take pictures before we tear into something and ASK before commiting to putting it all back together with fingers crossed, hoping this is the right way



-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: TomMN
Date Posted: 09 Jan 2012 at 9:09am
Those pictures are worth a thousand words for sure.  I like to have the manuals when I tackle these things.  I just checked and with either the parts book or the service manual this shouldn't have happened.  The service manual for the WD45 even gives the width of these spacers, the two wider ones are .966 wide and the small one is .654 wide.  I remember I had to shim mine up to tighten the countershaft properly.  The only adjustment is different width snap-rings to set the end play at .000 to .004.  Thanks for the great detail on what this problem turned out to be.


Posted By: pre64
Date Posted: 09 Jan 2012 at 4:17pm

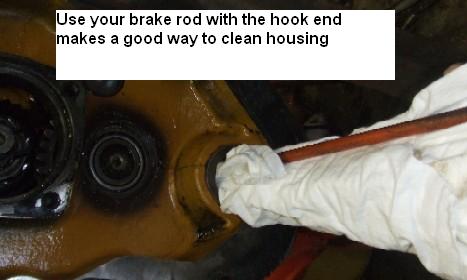

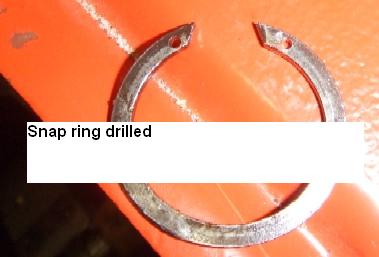

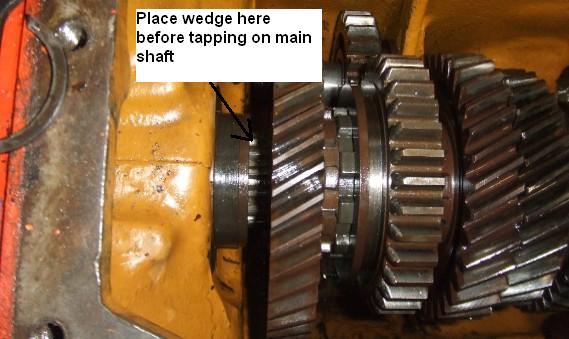

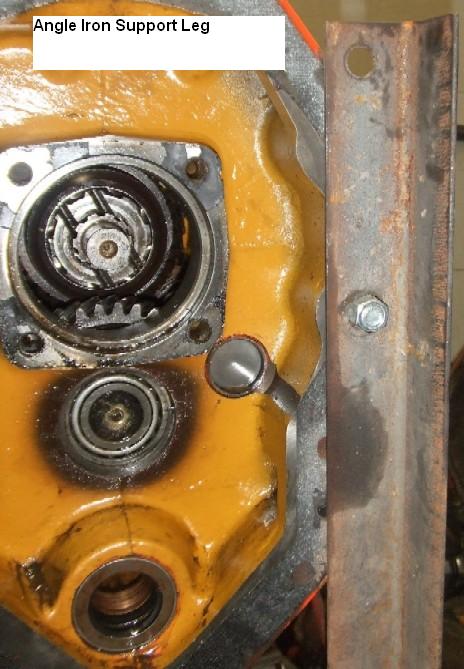

 D17 Transmission Disassembly Tools and Techniques

  I was going to start a new thread for tips and tools for splitting and disassembly of the D17 transmission, but I am going to inlcude it here.

   If the moderator wishes to have it moved let me know. This is not a complete instruction guide and may vary between applications. This is merely some things that I have done that have helped me when no help was around.

   First thing is get a good manual and do your homework. When you find things left out or issues, come here to get your answers!  You won’t find a better helping forum.

   When you are ready to begin make sure you have adequate tools and room to complete the task. This is where the books don't help much. Many of us do not have expensive state of the art equipment just sitting around waiting to be used. I am fortunate enough to have a small shop with mills lathes and drill presses etc and normally a fair supply of iron around. If you don't have these items then it will take you just a little more time is all.

     This method is only as safe as the person performing. Please keep safety in your work at all times. For my method the following tools are needed to complete the task. Your list may vary but the basics will be similar: At least 1 large floor jack, 2 large jack stands, engine hoist and some misc blocking and a digital camera (your very best friend).

     I like to use the engine stand for splitting, moving parts around, and pulling the rear differential housings and axles. Also a tip for working alone, I spent about 100.00 bucks and put an air lift cylinder on my engine hoist which gives you great control and allows you to multi task.

          Once you have read your manual and you feel comfortable or brave enough to proceed you will probably discover that it doesn't always go as planned. The "book" says support both parts of the tractor being split, remove the bolts and just roll the tractor away. That is all fine and dandy when they wrote the book 50 years ago, but things do weather over time and changes the way we do things. You may very well notice that after doing all of the things the book says the tractor is still stuck together and won't budge. You can't hook you 4 wheel drive pickup to it and yank it apart, there is no opening for you to get a prybar or a screwdriver between the housings so what next? I do not recommend lowering your front half down to try and break it away that way, you are asking for trouble. If all else fails this is what I do: (I may get some fellow mates to disagree on this but it does work). Find an inconspicuous place on the side of the housing close to the bottom and take your angle grinder with a thin cut off blade on it, and make a small indentation (cut) between the two housings. This will allow you to get a small prybar or similar between the cracks and force the gasket apart.

    The next thing you will discover when splitting is you will begin to run out of jacks, jackstands etc to support all of the heavy parts. Rather than getting a bigger stack of 2x4's and trying to support a couple of ton of iron with the risk of killing yourself, here is what I do for very little money. Once you have the transmission split from the differential I start rounding up to 2 or 3 inch angle iron long enough to fit to the top of the transmission housing around 3 feet or so. Next if you don't have an end mill to make exact holes, measure the distance between one of the top holes on the side and one of the bottom holes on the same side and drill you a couple of "oversize holes" in the angle to match these. Your not going to get them exact so over drill them at least two or three sizes too big so you can offset the difference, you don't care how they look just so they are safe. Now put bolts through both holes and tighten them up and the same for the opposite side of the transmission. You now have your front supports and eventually will free up that floor jack. Using the same technique make two more in the same fashion for the other half you just split and bolt them in place. Now you can ease your floor jack off and free it up.

     When you move to the rear to remove your Lift Arm Housing ,place your jack in the center back and remove your lift arm housing. Get a good long strap and secure a loop around the lift arm housing from your engine hoist and center it so it doesn't get away from you when it breaks loose. You read your book right? So you have already pulled your pto shaft and unhooked and removed your lift cylinder. Now if the housing is stuck and you can not get a pry bar in anywhere then you may have to use your angle grinder again as we did before. Once it is down and out of the way you can access the differential components. Before you proceed you need to make at least one more angle iron leg brace to place on the the back of the housing so you can get your jack out of the way to clean up all the oil that leaked out. This leg you can get by using one bolt and line up the other hole with the guide pin sticking out. This will save you a little time and work and once you tighten it, it will be safe and secure. Keep following your book and remove the rear axle housings very carefully, preferably with the engine hoist and strap and move aside. If the drum came out with it pull if off the shaft and put aside. With both axles removed you are ready to remove the ring gear assembly. Before you start get you a couple of large dowels, broom handle etc and put in the ends of the ring gear assembly through the side holes so it doesn't fall when you remove the bearing housings next.

    Follow the book and remove the bolts from the axle housing bearing retainers. These housings have an oring seal and are about 2 bucks from Allis so don't consider reusing them. You will need to take a brass punch or small block of wood inside the differential housing and tap out the bearing housings outward until they are free. Once the oring is out of the housing they will come off easy. Make sure you replace the seals in the housing before reinstalling. Your ring gear assembly is now free. It is heavy and sharp so some gloves may be nice. You will need to hold it up and pull the dowels at the same time. When you remove it bring it straight back out the rear. There is not much clearance here!

     Next you will be ready to remove your hand clutch and the main input shaft according to the instructions. You will notice that most likely your will encounter snap rings that have no holes in them to remove them and not enough room to get anything else in their to aid in getting them off the shaft. What I do now is get a small, good sharp center punch and mark each side of the snap ring and drill the two holes in them. Keep it under an 1/8" and centered or it will be too close to the edge. Now you can use your regular snap ring pliers to remove it and possibly save it. The material of the ring is a little hard so make sure you have a good fresh bit to drill with, but a regular steel bit will work.

     The book says to just tap the main shaft out the rear housing. Hope yours comes right out but I bet it don't. It may take a lot of tapping to drive it out. Mine came out hard all the way to the end. You have a double roller bearing with a couple of inches of surface so a normal tap isn't going to cut it. If you do not have a large brass shaft or punch you will probably need to find a small oak 4x4 and a 3 lb hammer. Before you begin this so called tapping I would advise that you put some type of a shim wedge between your 2 piece split ring collar and the rear part of the main shaft. I broke one half of my split ring from driving on it and could have prevented it by putting a wedge between it. Once you have moved it about 3/4" you can slide the collar back and remove the split rings. Now is a good time to get you a shaft, broom handle or something similar a couple of feet long and clamp it to the rear differential somewhere close so when the pinion shaft comes out you can start taking your gears off and sliding them right onto the shaft so you don't mix up how they go. Also if you are working alone it would be a good idea to stuff something in the differential incase the pinion comes flying out or drops and dings up your bearing. I put a bunch of my dirty rags in mine. Any comments or criticism is welcome. If we can improve this no hard feeling here! I will begin to write some assembly tools and tips as well in the next few days. Also are a few small images to clarify some of text.

Tim









-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.


Posted By: pre64
Date Posted: 13 Jan 2012 at 9:08am

D17 Transmission Assembly Tools and Techniques

    As promised I am adding a few pointers for assembly of this project. Once you have received all your new gaskets, bearings, seals etc and double checked to make sure they are right we will proceed.

   You will find that some of the gaskets come off very hard after the years. I still prefer using a razor blade scraper to get down to the metal surfaces. You will notice that some of the casting flaws will catch on your blades every now and then and break your blades (make sure you have your safety glasses on for this) so make sure you have a handful of razor blades before you start. Once you have all of your gaskets cleaned off, clean out all the junk from the housings and swab it out good.

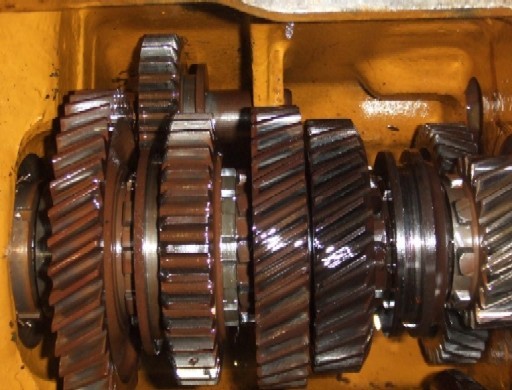

    Now get all your pinion and main shaft parts and gears ready to go. Here is a tip for putting the pinion shaft in yourself . Get you a couple of feet of good wire and put two bolts in your top transmission housing straight across from one another near the front of the transmission. Wrap one side of the wire 2 or 3 turns around the bolt farthest from where you are standing and leave the other end of it hanging. Get your pinion shaft and place it through your back housing all the way to the bearing edge and hold onto the shaft with the other hand. Now with one hand free start feeding your gears etc onto the shaft. Then in order to free up your other hand grab your wire and loop under the front part of the shaft and lift it up until it is nearly centered in the front housing and give it a couple of wraps around the other bolt on the top housing. This will temporarily hold it in place while you go to the rear and get your pinion started up into the bearing housing. When you get ready to do your so called “tapping” your shaft into the housing you will need a hard block or similar to tap in the center of the pinion and drive into place. When you get within about ¾” or so from being into place, you will need to put on your “split ring”. I usually grease them up good with some heavy grease so they will temporarily stick into place and not fall out. Slide your retainer over the top of them when done to hold it together. Don’t be afraid to put a wad of grease on this as well to help hold it in place. Keep checking after each tap to make sure it doesn’t come apart. Note; when tapping your shaft into place you will need to keep slacking your wire that is holding the end of your shaft up. Once you have started the pinion into that bearing housing I realize the shaft holds it self, however the wire at this time serves to hold the gears from flying off the front of the shaft during the tapping process. This image is on the bottom shaft assembly but the same technique is used on the top:




    Once you have your pinion and gears in place make sure your gears all turn freely and each gear functions properly and is free. If your pinion shaft is binding at all you probably drove it in a little to far. If this happens make sure you have your snap ring on the front of the shaft and then give it a good tap backwards and it should free right up. If all is well and you get your rear bearing retainer plate on and all bolts tight, you will need about 18-20” of steel wire .050” or less in diameter  to put through the bolt heads as the book indicates. End up with your splice for the wires where you have room to work and about ½ way in the middle of two bolts. This will give you enough room to twist the ends together. Once done clip off any excess and flatten all wire down tight against the flange. This will prevent it from getting caught in your ring gear.

    With all of your parts cleaned good install all of your seals. When you are installing the new orings, especially the ones on the rear axles bearing holders, do not roll them into the grooves they fit in, but rather start one side of it down into the groove and “carefully” stretch it just enough to get the remainder of it into the groove. This will prevent the oring from twisting that you get from rolling it into position. You want it to lay straight when it is in the groove to prevent from catching during assembly, since it is a real tight fit. Right before assembly put a little Vaseline on it all the way around to help it go together.

    When working alone and installing the ring gear assembly into the housing you will need a couple of dowels, broom handles etc to fit though the axle housing into the rear end to hold it up during assembly. Once you have it suspended then you can get your bearing housing and shims and slide them over your dowels, line it up and carefully push them into place. Make sure all of your shims are lined up with the bolt holes during assembly. Don’t use the retainer bolts to draw your bearing housing into place. If it is clean and lubed you will be able to put them in by hand by turning them a little during assembly. This will prevent you from pinching one of the orings. Once they are in place tighten them up, Check now and insure it rotates freely and your ring gear and pinion gap are good. If you have kept all of your shims straight on each side it should go back to where it was. If you don’t have the dial indicators etc. to check exact clearance make sure that there is a little play back and forth between the ring gear and pinion. I would say no more than 1/8” back and forth just as a guideline.

     When you are ready to install the rear axle housings I like to use the engine hoist and put the strap as far out as it will go and it will be balanced then. Make sure your brakes are spread clear apart and put a little grease on the ends of the splines to help it to go together easier. Once you are lined up and ready to start the axles into place, go easy and not bump the inner seals. If you have it lined up it should go in a good ways and stop. At this point turn your outer wheel hub a little back and forth and it should go all the way in. Never draw it in with the bolts, it should always go together fairly easy by hand. Also keep an eye that your don’t catch on your brake shoe linings going in.



-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.


Posted By: pre64
Date Posted: 14 Jan 2012 at 7:41am
Finally got back to work on this yesterday. I now have the pinion shaft and all the gears and input shaft as well as the rear axles in place. I manually shifted all the gears into place one at a time and they all function properly now. Hope to have it back to together this weekend so I can move the tractor around and make some room.

-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.


Posted By: wjohn
Date Posted: 14 Jan 2012 at 9:37am
Awesome job, pre64! I haven't been into a tractor transmission yet and this write-up looks extremely helpful.

I really wish we had a "Stickies" section of the forum, so everyone could easily find this sort of thing later. Many members have done great write-ups like this that should be easy to find.


-------------
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45


Posted By: pre64
Date Posted: 14 Jan 2012 at 11:52am
It would be nice to be able to categorize some of the post on this forum so you could find them in the archives later, maybe by main categories: ie; engines, transmissions, clutches, electrical etc. and then break it down into sub categories even if it is broad for instance all D series tractors, W series or maybe even broader by years like 1930 to 1950 or whatever.
   This wouldn't need to be done for all post, but the ones that relate to specific areas of interest that would help a member solve a problem or do a specific task.
   At the same time I have ran several websites myself and know that it is very time consuming to make modifications etc. Especially for those that operate primarily on donations. As soon as I finish the final on this thread I plan on starting one to help others get motivated to make a donation and keep this great forum going.
    Breaks over....time to see if I can put two halves together and make a whole tractor again.
More later...
Tim


-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.


Posted By: pre64
Date Posted: 15 Jan 2012 at 8:11pm
    The tractor is back together now and everything works as it should. Other than a little more painting and some finishing touches it is done. Once it is all done I will post a final picture of it.
    I want to thank all that helped on this. This is a great forum!
Not sure what will be next, but maybe another D17. It needs an engine over haul.
Tim


-------------
Coming up in the near future: another D17, 2-B's,WC styled, WC unstyled,2 snap coupler 3 bottom plows, pull type shredder,and 2 belly mowers.



Print Page | Close Window

Forum Software by Web Wiz Forums® version 11.10 - http://www.webwizforums.com
Copyright ©2001-2017 Web Wiz Ltd. - https://www.webwiz.net
