 Topic: Power director: safe to pull?
Posted: 31 Mar 2023 at 9:05am |
|
Hi a’ll!
So I know the power shift not able to roll without the tractor running but how about the power director? Even with the 2 speed power shift?
This question has been eating me away for awhile and in case I ended up with one that didn’t run…
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
 |
|
Sponsored Links
|
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24656
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 9:12am |
|
I put my D-14s tranny into neutral and they roll fine...PD's always in high (fwd)
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8455
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 9:23am |
|
If you’re talking about a 7/8000 series they will roll unless the range box is in park.
|
|
Tbone95
Orange Level Access
Joined: 31 Aug 2012
Location: Michigan
Points: 12160
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 9:58am |
|
As Creston said, they'll roll unless in park. I'm not sure about how far you should tow one, but around the yard or whatever, no biggie. And these 7/8000 series don't have a PD neutral, they go to low once you push in the clutch, and engine off.
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 9:58am |
|
Sorry I did mean the 7000/8000 series…
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 11:23am |
 Tbone95 wrote:
As Creston said, they'll roll unless in park. I'm not sure about how far you should tow one, but around the yard or whatever, no biggie. And these 7/8000 series don't have a PD neutral, they go to low once you push in the clutch, and engine off. |
So even if it’s been sitting for a long time (let’s say 20/25 years)?
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
Tbone95
Orange Level Access
Joined: 31 Aug 2012
Location: Michigan
Points: 12160
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 11:58am |
55allis wrote:
Tbone95 wrote:
As Creston said, they'll roll unless in park. I'm not sure about how far you should tow one, but around the yard or whatever, no biggie. And these 7/8000 series don't have a PD neutral, they go to low once you push in the clutch, and engine off. |
So even if it’s been sitting for a long time (let’s say 20/25 years)? |
Honestly I don't know.
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 1:17pm |
|
What tractor are we talking about? MACK
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3042
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 2:39pm |
|
My 185 Manual says
If the tractor must be towed from one location to another the transmission must be out of gear, engine must be running, and the power-director clutch must be engaged in either high or low range. The above instructions must be followed otherwise the transmission will not receive proper lubrication.
|
|
bigal121892
Orange Level
Joined: 05 Jan 2010
Location: Nebraska
Points: 812
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 6:20pm |
|
The neighbors towed their 7080 about 3 miles; took out the pinion bearing, due to lack of lubrication.
|
|
8070nc
Orange Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 606
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 7:48pm |
|
If im not mistaken the rear end is pressure lubricated. If it were me id get a wrecker with a axle lift to pick up the rear end and move it that way
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
KJCHRIS
Orange Level
Joined: 21 Dec 2015
Location: WC Iowa
Points: 954
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Mar 2023 at 9:48pm |
Sounds like a question for a model specific Operators Manual. Without knowing the model it's a hard question to answer.
|
|
AC 200, CAH, AC185D bareback, AC 180D bareback, D17 III, WF. D17 Blackbar grill, NF. D15 SFW. Case 1175 CAH, Bobcat 543B,
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3906
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 7:43am |
|
From my 7060 manual
Transmission (no difference) in neutral. Range transmission in neutral
Towing speed (in capital letters) not to exceed 5mph. Distance not to exceed one half mile for an inoperable tractor.
If the engine is operating, engine speed is 1200 RPM minimum to provide lubrication to transmission/rear end.(book states moving parts)
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 8:47am |
That does sound about right plummerscarin… Sorry Mack, I’ve been looking at a 7580 that pretty sad looking (lol)… It would only be rolling to/ on a trailer…  Thanks a’ll for the replies!!!
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
DougG
Orange Level
Joined: 20 Sep 2009
Location: Mo
Points: 8339
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 1:11pm |
|
Awe doubt youd hurt it,, roll on
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3906
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 3:16pm |
That looks like a project
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 8:34pm |
Trans in neutral, range trans. In neutral and you should be good to load and get into shop. After you get her going, don't take it down the road until you've driven it around slow to get oil into range gears. MACK
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Apr 2023 at 10:23pm |
|
Haven’t got it yet because it’s on an auction and only if it goes cheep….
Don’t even know if the engine is any good being the owner thought he blew it up…
Said it blew black smoke all over and he shut it down, but that was 25/30 years ago.
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21847
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 7:31am |
|

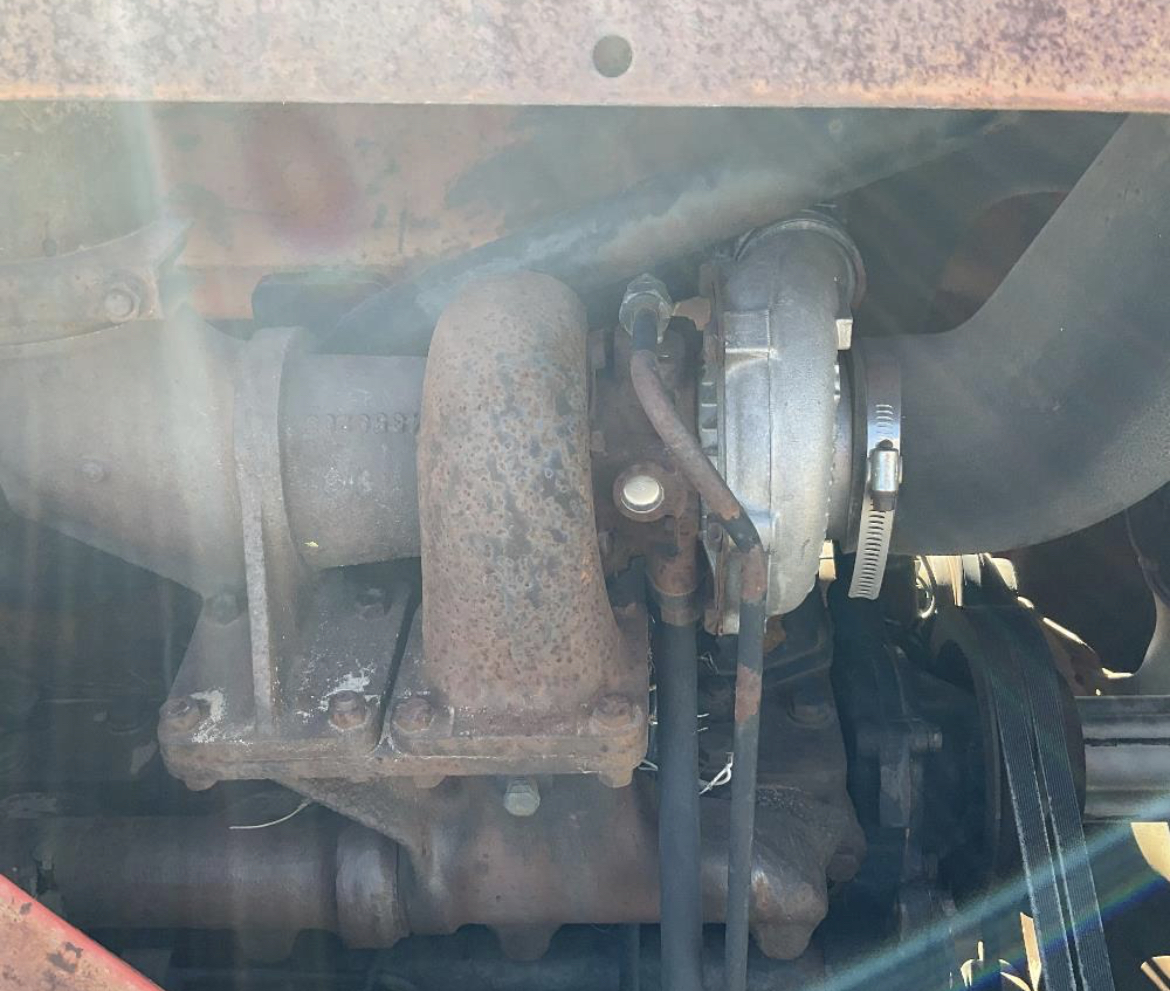

Might have just been the turbo, but surely will be an OH now. The muffler didn't remove itself.
|
|
dr p
Orange Level
Joined: 24 Feb 2019
Location: new york
Points: 1396
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 7:33am |
|
That ooks like it could be a fun project. Sheet metal looks straight
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 8:39am |
|
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2380
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 1:43pm |
|
It appears to be a late serial number tractor. Bosch injectors. No, don't pull those tractors very far,they use pressurized oil for critical transmission bearings, bushings, and such. Shame to see machines fall into such disrepair. The day that it failed would have been a better time to get rid of it. At that time, it would have still had decent value. I would expect it to be cheap and as a buyer,it better be.
|
|
Kansas99
Orange Level Access
Joined: 26 Feb 2015
Location: W Kansas
Points: 4867
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 4:42pm |
Running when parked, knee deep in rubber, no low ball offers, I know what I've got!
Then again, if the price is right.
|
|
"Thank you for your service Joe & the Ho"-----Joseph Stalin
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 6:48pm |
Haven’t decided on a price yet but here’s a picture of the serial number….
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2380
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 7:49pm |
|
That's the cab serial number, not the tractor number.
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8613
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 8:40pm |
|
Even scrap price by weight would be more than I'd give. For what you're gonna have in it you'd be ahead to pay for a GOOD runner.
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Apr 2023 at 9:24pm |
Lynn Marshall wrote:
That's the cab serial number, not the tractor number. |
Sorry, guess it doesn’t have a serial number listed… I guess I forgot that those Allis’s had it printed in the rear end (I think)…
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
55allis
Orange Level
Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 951
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 6:06pm |
|
Well it sold for $280, and no I didn’t buy it…
Thought others might want to know…
|
|
1955 AC WD45 diesel with D262 repower, 1949 AC WD45
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5226
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Apr 2023 at 6:32pm |
|
Don’t get any cheaper than that. Could have made some cash off of it.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
