Plow Model?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Colt1986 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 31 Dec 2018
Location: Montville, OHIO
Points: 39 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Colt1986 Quote  Post ReplyReply Direct Link To This Post Topic: Plow Model?
    Posted: 23 Mar 2019 at 4:30pm

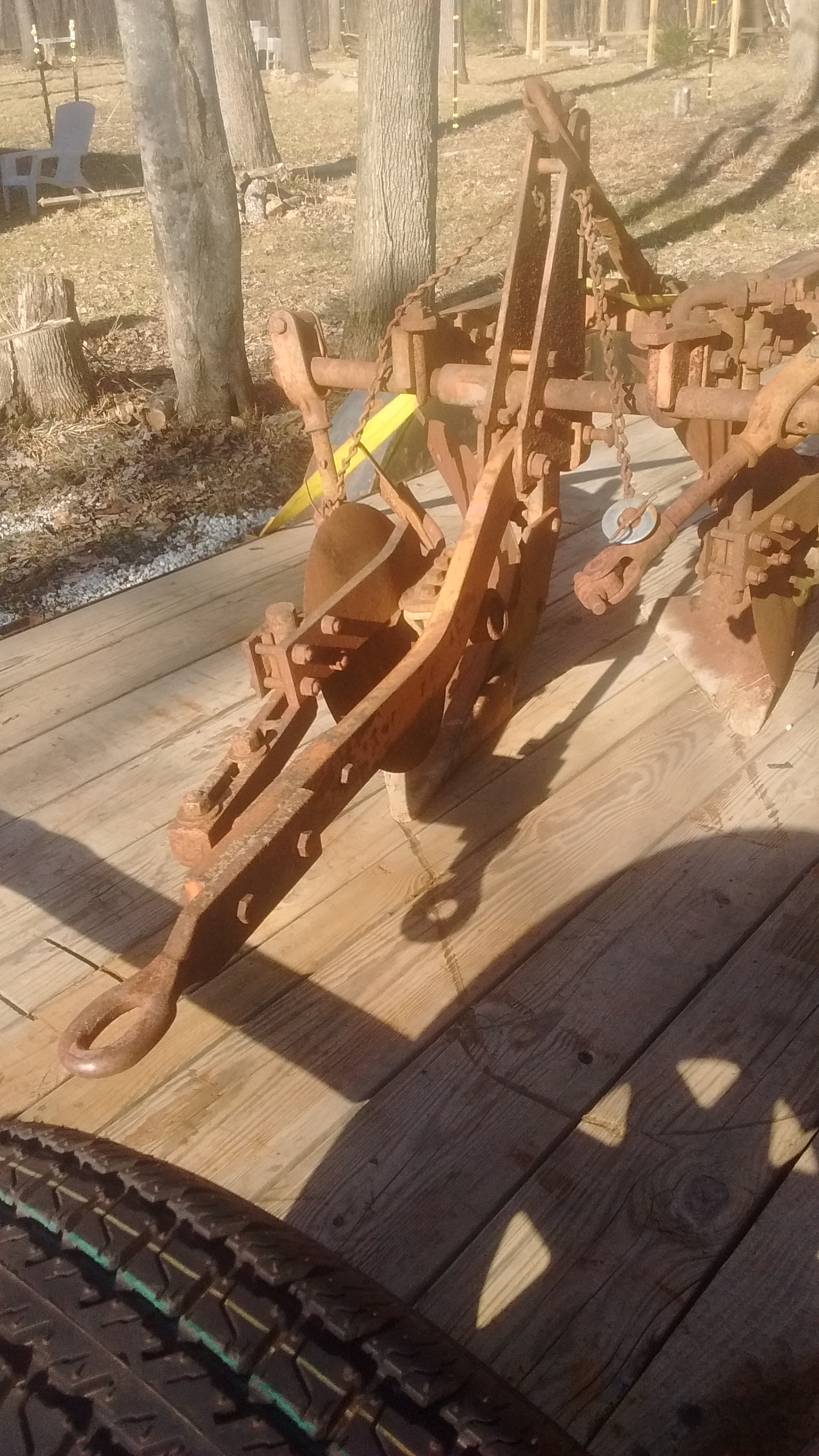

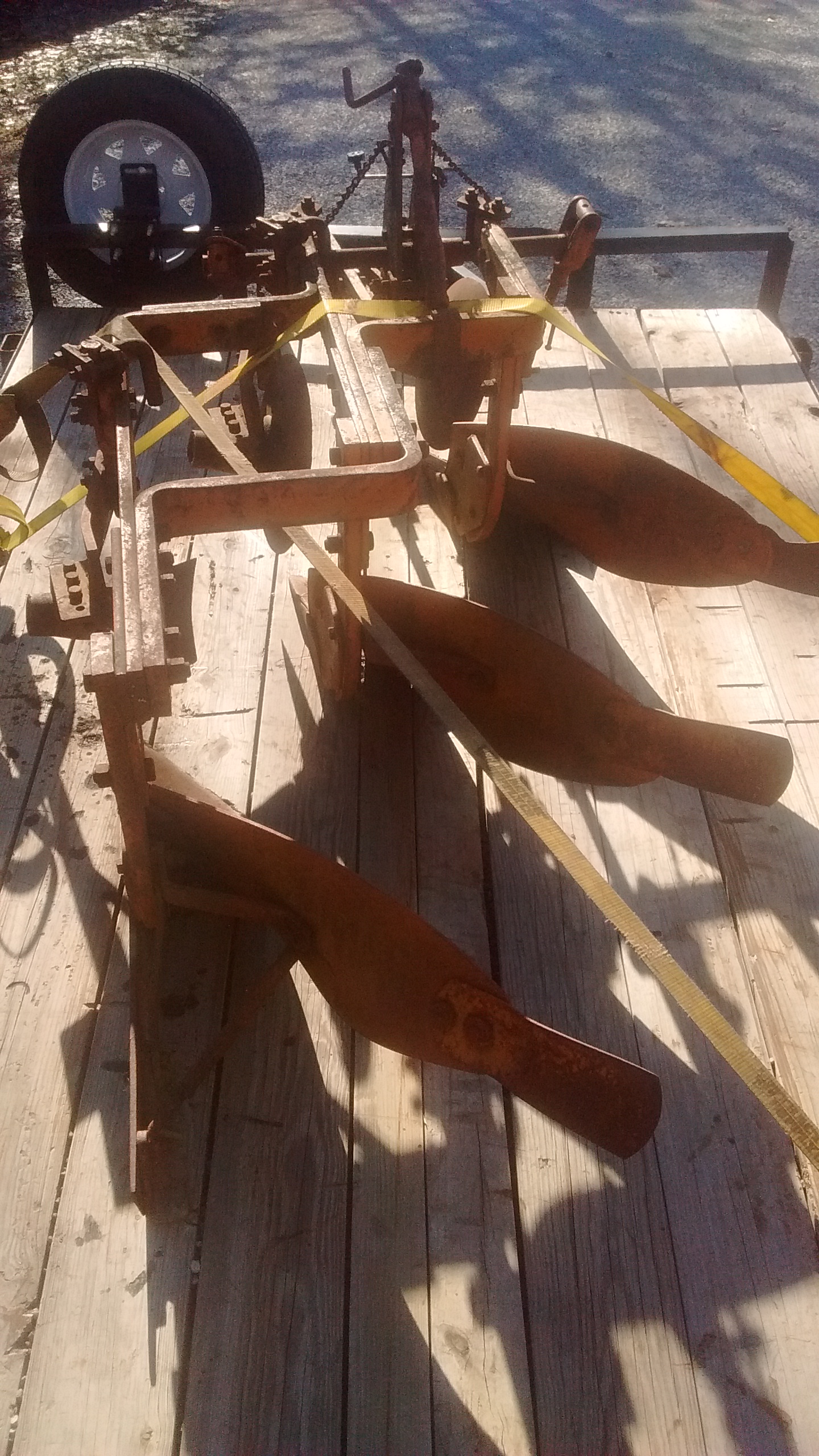

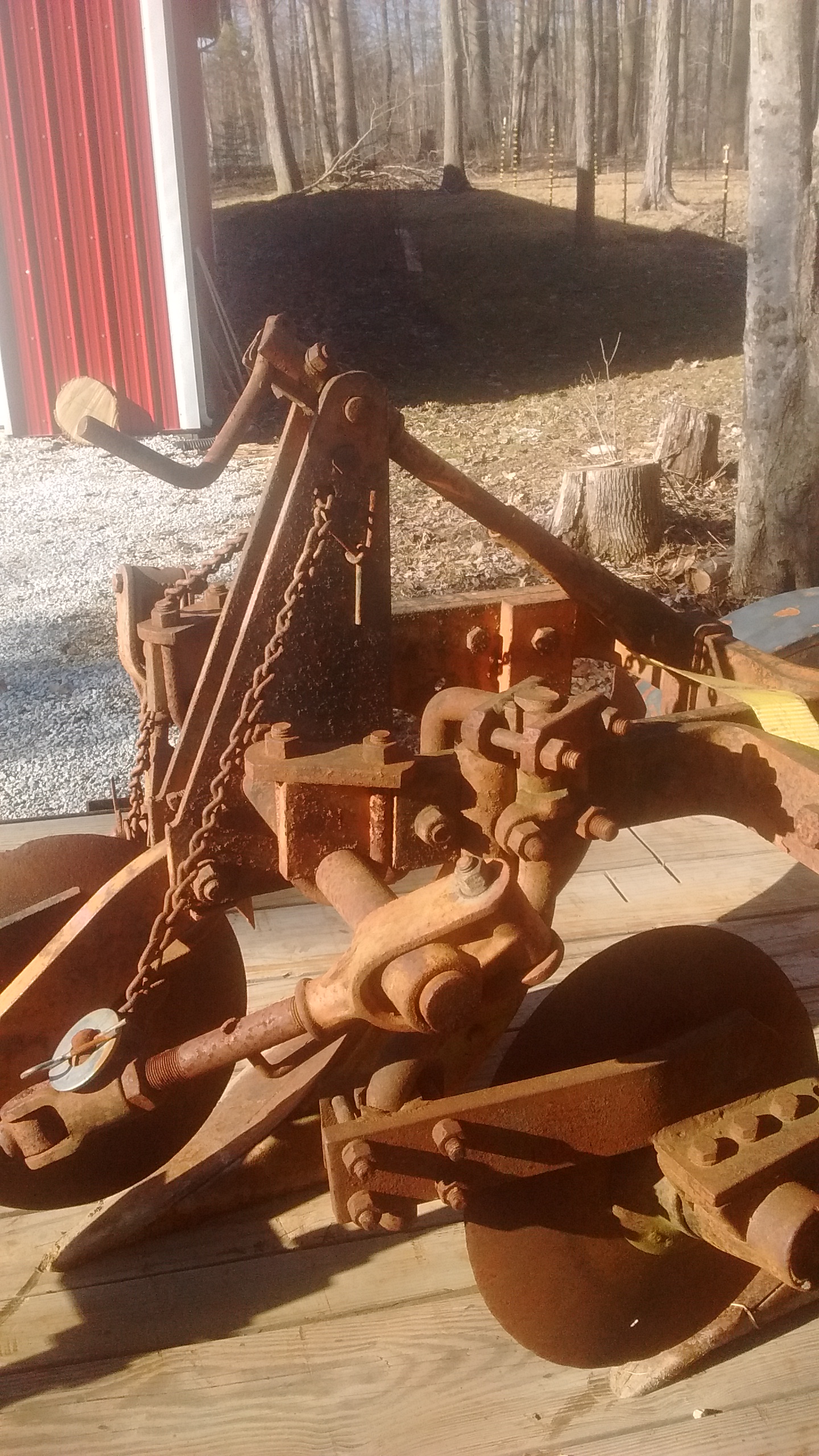

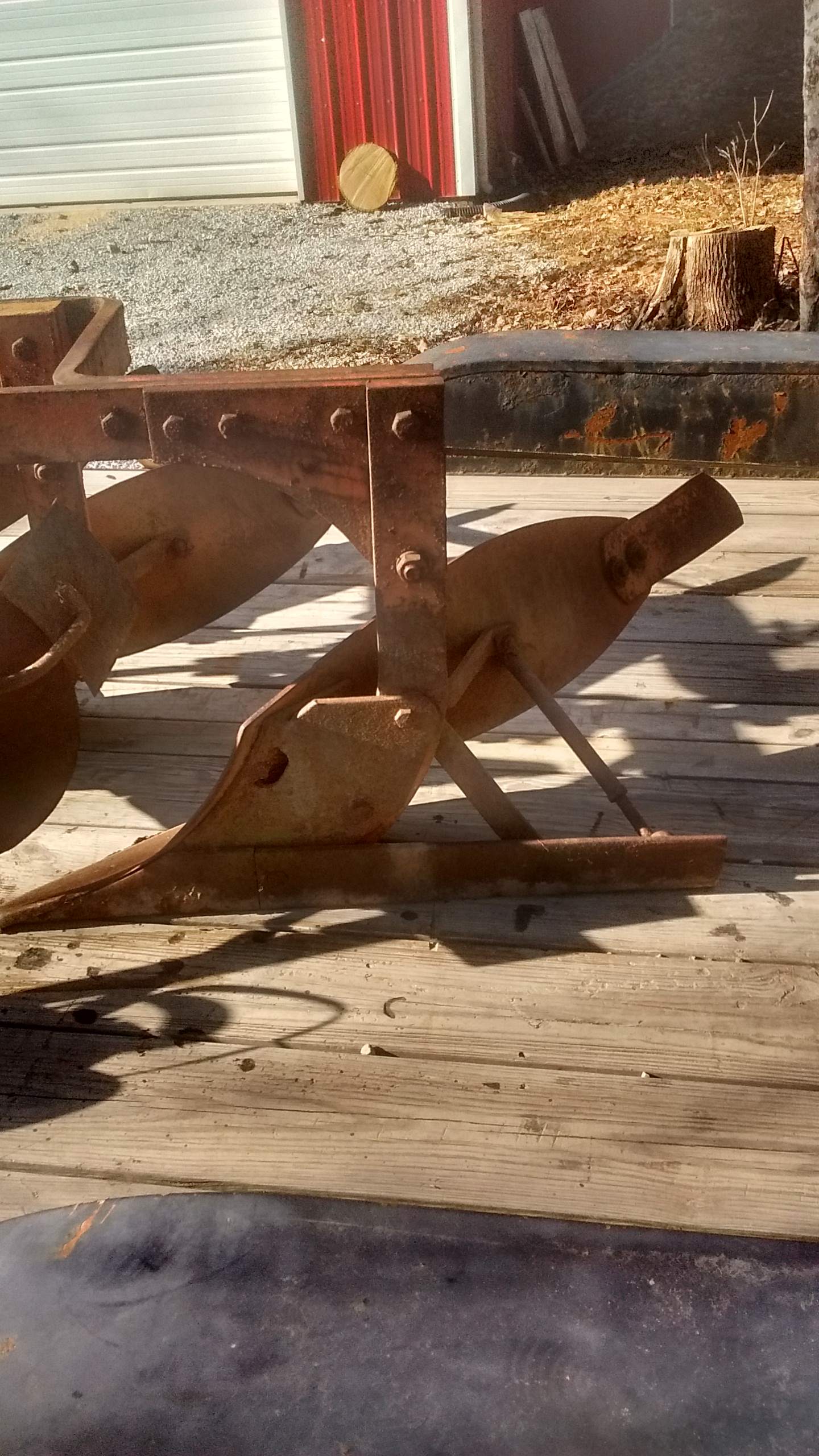

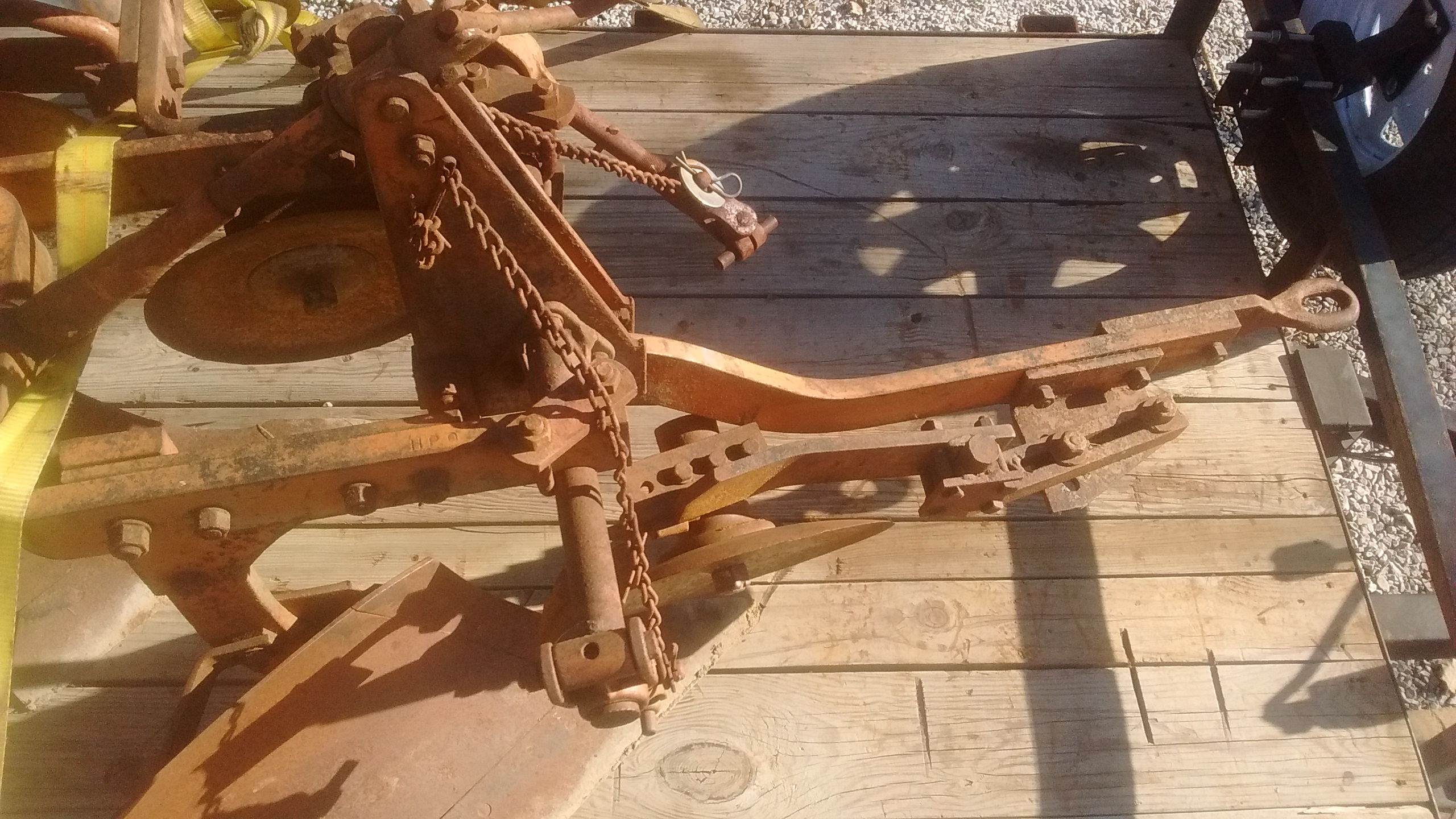

Not sure if this is a 63 or 73 I just picked it up
Back to Top
Sponsored Links


Back to Top
Rfdeere View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Idaville, IN
Points: 3283 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Rfdeere Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2019 at 4:35pm
Plow pictured is a 53
Randy Freshour,Member Indiana AC Partners,
http://www.rumelyallis.com
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22088 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2019 at 4:36pm
53.
Back to Top
Colt1986 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 31 Dec 2018
Location: Montville, OHIO
Points: 39 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Colt1986 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2019 at 4:37pm
Okay thanks I just bought it today to hook to my Wd45 it still has some original paint in a few spots and I can see where the diamond shaped stickers were on the backs of the mold boards
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2019 at 5:20pm
There is a post over on the knowledge forum Plows Parts 101 I think is its title that tells the difference between 50, 60, and 70 plow frames. Basically 50 has vertical plow shanks with a fixed width plow frame. 60 has fixed width plow frame and can have spring trip plow shanks. 70 plow frame is adjustable width and plow shanks are more likely to have spring trips. The knowledge forum has links to plow parts books that really help identify a plow frame.

I have a manual on WD 52 and 53 plows that I can't post on my web page but I can e-mail it. I have e-mailed it twice in the past three days.

Gerald J.
Back to Top
