 Topic: One wire alternator question
Posted: 11 Sep 2021 at 7:35pm |

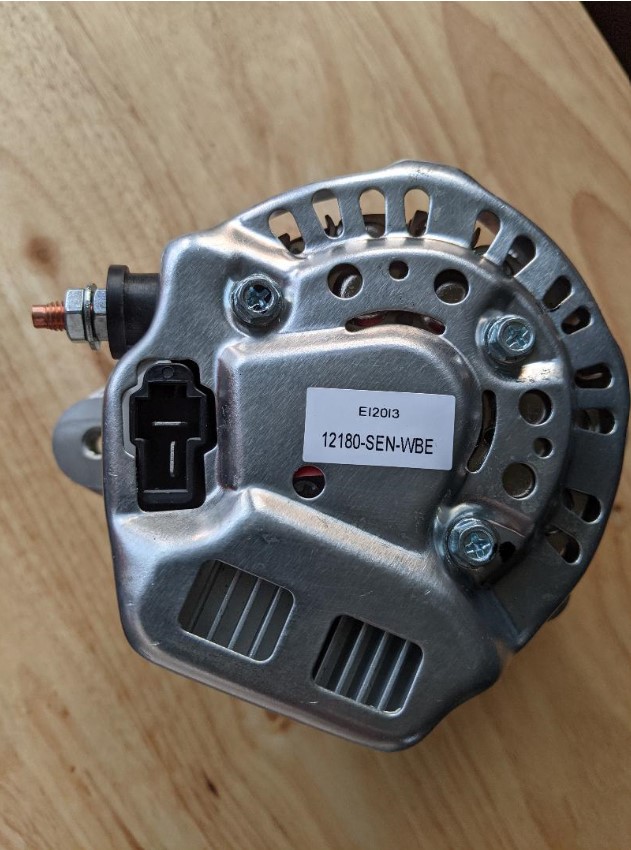

I've had a mini one-wire alternator for a while and now I am thinking of installing it on my C. I looked on the back of the alternator and it has provisions for a connector and has two blades.
Can anyone tell me the purpose of the connection? Does this offer the ability to connect it as a three-wire alternator? If so, which blade connects to what?
Any help would be appreciated.
|
|
"People are human beings, produced by the society in which they live. You encourage people by seeing the good in them." ~ Nelson Mandela
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87109
|
Post Options
Thanks(1)
Quote Reply
Posted: 11 Sep 2021 at 7:46pm |

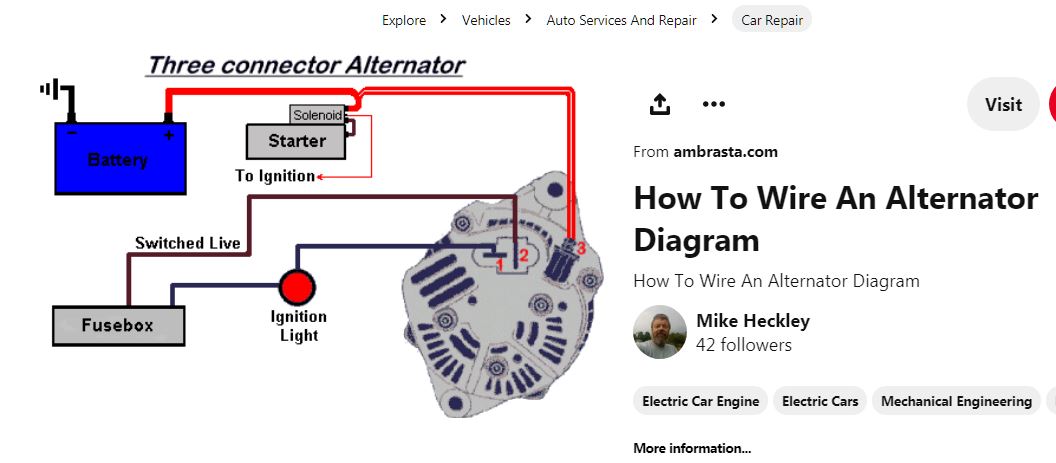

yes. that is what the plug is for.... should be some numbers or letter on the case, but looks like this.... the "light" can be a diode, resistor, or idiot light.
in the picture, the "fuse box" is basically the ON- OFF key /switch
Edited by steve(ill) - 11 Sep 2021 at 7:49pm
|
|
Like them all, but love the "B"s.
|
|
John426
Silver Level
Joined: 14 Aug 2012
Location: France
Points: 306
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2021 at 2:45am |

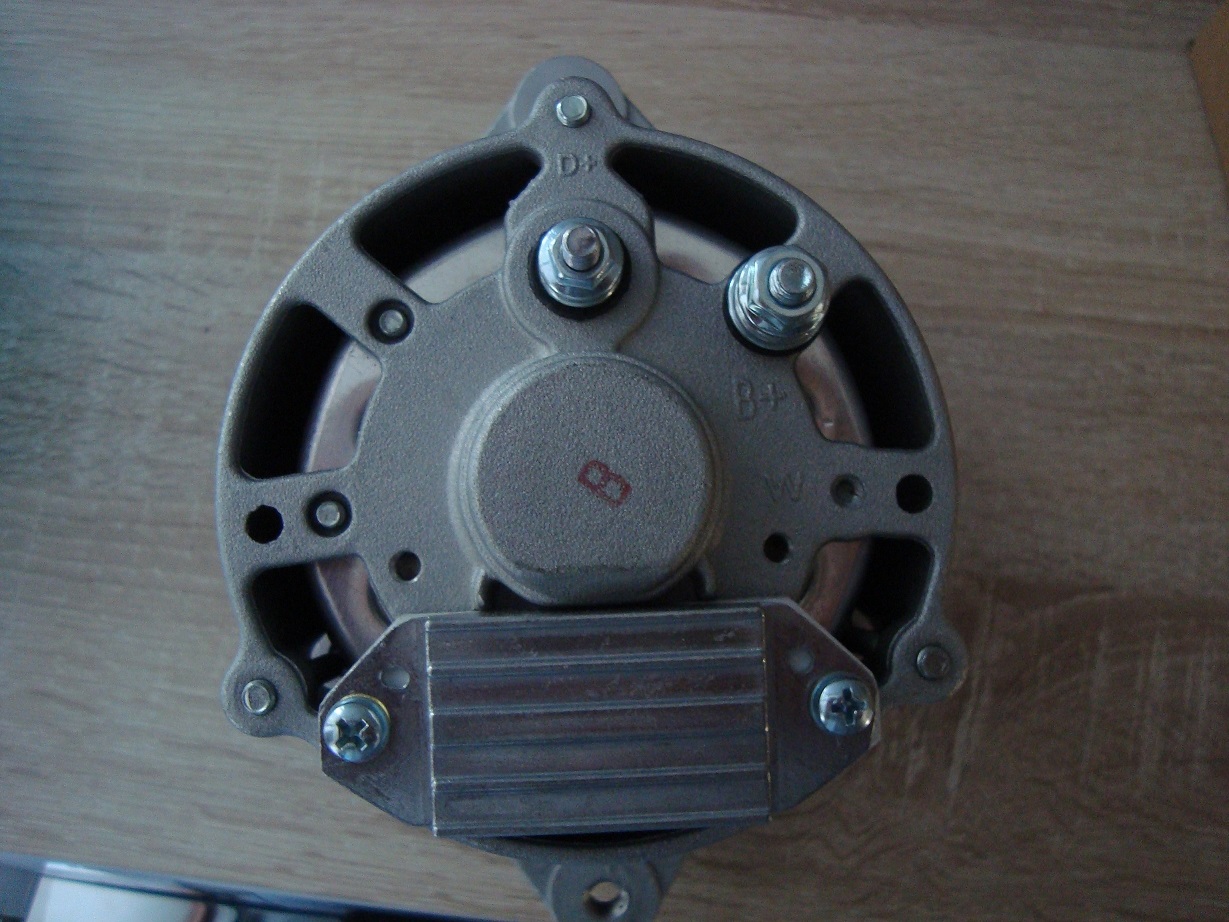

With an alternator which has only 2 terminals, D + and B +, does the light connected in D + can be a simple light like a led, or must be a bulb light with minimum power light 3W to excite the alternator?
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87109
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2021 at 8:44am |
|
john, normally a LED is not used.. What is needed is a small drop in voltage to the terminal to TELL the alternator to kick in and start charging... You can use a small filament bulb, sometimes a DIODE, or a resistor. ....I found an old DELCO "test book" years ago that said on a TEST BENCH, they used a 10 OHM resistor for testing the older 10SI alternators, and a 100 OHM resistor for testing the newer C130 units......... i think that works out at 14 watts for the old unit and 1.4 watts for the newer unit..... I got resistors at RAdio Shack... about 1/4 inch square and 2 inches long for $2 each.
|
|
Like them all, but love the "B"s.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24571
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2021 at 8:54am |
goose.... it's a 'one wire' alternator, one wire from stud to battery,so do NOT assume those 2 pins DO anything !!! The casting is common to several styles,both 1 and 3 wire alternators and windmill power units.
That could just be a 'hole filler'( other side of pins go nowhere...). Connector is cheaper than a solid plug.
you best contact whoever MADE the alternator, not the reseller.....for real information.
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Charlie175
Orange Level
Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6368
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2021 at 9:49am |
 jaybmiller wrote:
goose.... it's a 'one wire' alternator, one wire from stud to battery,so do NOT assume those 2 pins DO anything !!! The casting is common to several styles,both 1 and 3 wire alternators and windmill power units.
That could just be a 'hole filler'( other side of pins go nowhere...). Connector is cheaper than a solid plug.
you best contact whoever MADE the alternator, not the reseller.....for real information.
|
Indeed! I just have the 1 wire on mine to the battery. Nothing else is needed. Starts charging as soon as it starts up
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
|
|
Luke114
Bronze Level
Joined: 27 Aug 2019
Location: Washington
Points: 109
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2021 at 12:15pm |
|
Jay, I've wondered if that was the case for my one wire alternator. It works just fine with only the main wire connected (as the name implies). I tried to hook up the idiot light only becuase the terminal was avilable, and it won't work. Guessed that the connectors are just plugging the hole.
|
|
