Old Allis Chalmers ID help please
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
gmp56 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 24 Jul 2026
Location: Minnesota
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote gmp56 Quote  Post ReplyReply Direct Link To This Post Topic: Old Allis Chalmers ID help please
    Posted: 24 Jul 2026 at 4:50pm

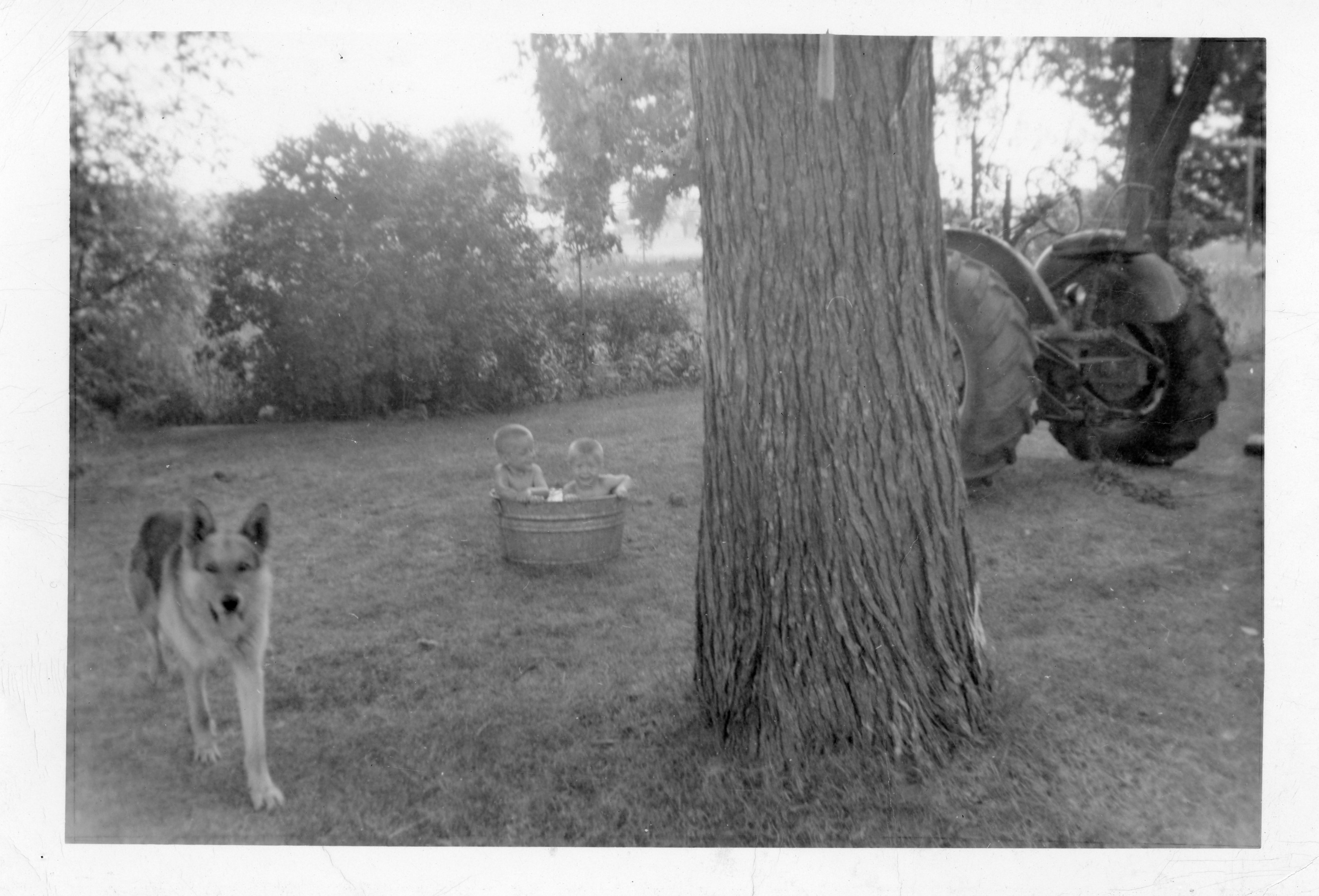

Let me start by saying I'm new here an no nothing about tractors.  I just have a curiosity question about my deceased father's tractor, shown in an old family photo that brought me here to you experts.  My apologies in advance if I'm posting incorrectly.  My dad used to mention his Allis Chalmers tractor when talking about the farm he was raised on, and then took over as a young adult.  The attached photos show his tractor, taken on his farm.  That's my brother and I in the pictures.  Guesstimating our ages then I'd say this photo was taken in the late 50's.  Both the farm and tractor are long gone. I'm just curious and wondering if anyone can help ID anything more in regard to his tractor - such as model, year, etc, etc.  Again, please assume I know nothing about this, which is true.  My brother sent me the photo, I'd like to share the info with him and our other siblings if there's anything more I can learn about.  Thank you in advance! Regards.




Edited by gmp56 - 24 Jul 2026 at 4:56pm
Back to Top
Sponsored Links


Back to Top
Michael V (NM) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NM
Points: 2590 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael V (NM) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jul 2026 at 5:04pm
That's more than likely a '49-50 WD, spin-out rear wheels,is the biggest indicator,,,going by the intake manifold, best I can see it would fall in these years,,it,, (the intake manifold)changed in late 1950,early 1951...
Back to Top
dfwallis View Drop Down
Orange Level
Orange Level


Joined: 09 Mar 2023
Location: Texas / Indiana
Points: 1041 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dfwallis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jul 2026 at 5:08pm
The WD serial number is stamped into the rear of the transmission case on the left side.
WD45: left brake housing

WD Serial Numbers
19487
19499250
195035445
195172328
1952105182
1953131243


WD45 Serial Numbers
Location:left brake housing
1953146607
1954160386
1955190993
1956217992
1957230295
1952 CA13092, CA Pickup Plow, CA Cultivator, CA Two Row Planter, Dunham-Lehr GC78 Disc, Grader Blade, 3pt Fm180 Finish Mower
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2548 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jul 2026 at 5:51pm
Welcome to the forum. Cool photo.
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 9196 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jul 2026 at 11:01pm
It has a WD manifold on it. I say it is a WD
Back to Top
gmp56 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 24 Jul 2026
Location: Minnesota
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote gmp56 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jul 2026 at 6:45am
Thank you all, I really appreciate your insight and help!!! Regards, Gary
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 9017 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jul 2026 at 8:16am
Welcome to the forum. Nice photo and memories for you.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 93064 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jul 2026 at 8:50am
here is a little movie of the WD out in the field...
Like them all, but love the "B"s.
Back to Top
gmp56 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 24 Jul 2026
Location: Minnesota
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote gmp56 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jul 2026 at 8:50pm
Thank you all. Greatly appreciate the responses & info.
Back to Top
55allis View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Jun 2020
Location: Griswold Iowa
Points: 1418 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 55allis Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jul 2026 at 11:03pm
Looks like it has pin hitch too, not sure when they got changed over.
1955 AC WD45 diesel with D262 repower, 1949 AC WD, 1963 A-C D17 series 3, several Allis garden tractors
