New D17 Owner part 2 - What is this Lever?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
bendts View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Jul 2020
Location: NW Wisconsin
Points: 89 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bendts Quote  Post ReplyReply Direct Link To This Post Topic: New D17 Owner part 2 - What is this Lever?
    Posted: 12 Jul 2020 at 3:08pm

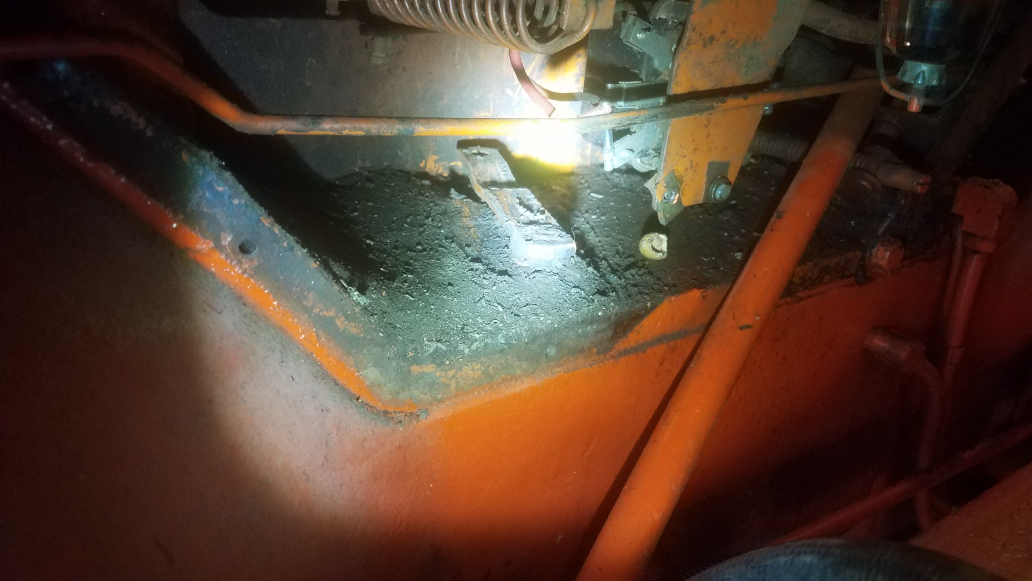

Took off the Left side cover to re-connect a wire and found this lever.  Its just to the rear of the bell housing.  I seems to only go forward 1 "Click"  and back to the rear 1 "Click".

Didn't try it with the motor running as I have no Idea what it may or may not do.

Thanks
Back to Top
Sponsored Links


Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2020 at 3:18pm
Belt pulley lever
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
DonDittmar View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Sep 2009
Location: MIllersburg, MI
Points: 2516 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DonDittmar Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2020 at 3:18pm
that is the belt pulley engagement lever.  All the guts are in the torque tube, if you wanted to add a belt pulley you just need the drive housing and pulley itself. The shift rod would hook to that and come out on the lower right corner of the dash
Experience is a fancy name for past mistakes. "Great moments are born from great opportunity"

1968 D15D,1962 D19D
Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start
Back to Top
bendts View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Jul 2020
Location: NW Wisconsin
Points: 89 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bendts Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2020 at 3:39pm
Got it - That makes sense from the small plug in the dash.

Thanks
Back to Top
Ky.Allis View Drop Down
Orange Level
Orange Level
Avatar

Joined: 31 Jan 2010
Location: Kentucky
Points: 1031 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ky.Allis Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2020 at 5:16pm
You need an owner's manual more than anybody in history.
Back to Top
bendts View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Jul 2020
Location: NW Wisconsin
Points: 89 		Post Options Post Options   Thanks (0) Thanks(0)   Quote bendts Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2020 at 5:20pm
Yeah its in the mail.  Should be here tomorrow.
