 Topic: mounting ca rear weight???
Posted: 24 Jan 2011 at 4:04pm |
|
Can't get to the tractor to measure, does anyone recall the correct size ( 3/4 I assume) and length carriage bolt used to mount rear weights on a ca. Can't find hardened ones, are the standard carriage bolts strong enough? Anyone just use regular 8 grade bolts? Thanks Ron
|
|
CA Tractor
|
 |
|
Sponsored Links
|
|
|
mnoonan-NEWI
Orange Level
Joined: 11 Sep 2009
Location: Marinette, WI
Points: 738
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 4:53pm |
Ron, I have one set of weights attached w/ regular carriage bolts purchased from Fleet Farm. (2) per weight. I presume they are grade 3. I believe they are either 3/4" x 3" or 3 1/2". I don't have the tractor here to measure. My other CA has (2) factory carriage bolts per weight held on wheel center with a cotter. The factory carriage bolt was drilled for a 3/16" cotter to be used as a retainer to hold bolt on the wheel center while you slid the weight on. That probably doesn't help much but best I can do for now. Good luck, Mike
|
|
AC CA, Ferguson TO-20, Ford NAA, M-M BG, AC #3 Mower, SC Plow, PH Digger, AC 720's with Ark 700 loader & Brantly Backhoe, "Mini B" w/flathead Ford V8
|
|
mnoonan-NEWI
Orange Level
Joined: 11 Sep 2009
Location: Marinette, WI
Points: 738
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 7:34pm |

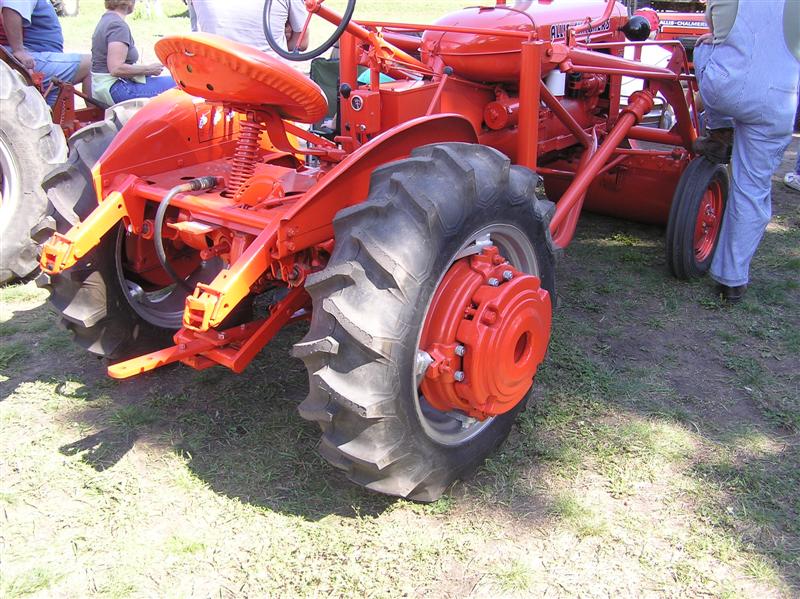

Ron, Here is a picture of my restored CA with the rear weights. Note the cotter on the bolt holding the weight on. Also for figuring the bolt length, measure from one of the flat areas that touch the wheel center perpendicular to the flat where the washer bears then add about 1/4" thickness of the wheel center plus washer and nut. Again, Good luck, Mike
|
|
AC CA, Ferguson TO-20, Ford NAA, M-M BG, AC #3 Mower, SC Plow, PH Digger, AC 720's with Ark 700 loader & Brantly Backhoe, "Mini B" w/flathead Ford V8
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3972
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 7:43pm |
|
I used (4) 3/4 X 3 1/2 carriage bolts on each wieght. then trimmed the little excess off each bolt. Some where out in the shed I have the original bolts with keeper holes drilled in the head. they only came two to a wheel and I wanted four.
|
|
Ted J
Orange Level
Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18943
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 7:54pm |
|
Hi Ron,
I was told by others on here that regular carriage bolts are plenty strong. The ones that I have are 3 1/2", but I couldn't find them at Farm & Fleet. The biggest they had here were 1/2", not 3/4", which is what you need. I had to go to Fasten-All. Hope it helps, Ted
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
|
Reeseholler
Orange Level
Joined: 28 Mar 2010
Location: Port Matilda PA
Points: 294
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 8:24pm |
|
Thanks for the replies and for the topic ron. I'll be putting mine on here in a couple of weeks. good information to know
|
|
DSpears N IL
Silver Level Access
Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 415
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 8:28pm |
  Hi Ron and all
I have used the 3/4 X 4 grade 8 bolts for mounting my weights. I use a 3/4 coupling and a 2 inch bolt to fasten a second weight to each wheel and I use 4 bolts with flat washers on the back side of the wheel.
DeWayne
Edited by DSpears N IL - 25 Jan 2011 at 11:50am
|
|
Eldon (WA)
Orange Level
Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jan 2011 at 9:11pm |
|
The carriage bolts are threaded to the head, so I just use a jamb nut to hold it in place on the hub.
|
|
ALLIS EXPRESS!
This year:
|
|
DSpears N IL
Silver Level Access
Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 415
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2011 at 11:51am |
|
|
|
TedBuiskerN.IL.
Orange Level
Joined: 11 Sep 2009
Location: Davis, IL.
Points: 1959
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2011 at 4:41pm |
|
I likw DSpears idea for adding another weight
|
|
Most problems can be solved with the proper application of high explosives.
|
|
mnoonan-NEWI
Orange Level
Joined: 11 Sep 2009
Location: Marinette, WI
Points: 738
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2011 at 6:12pm |
The following is from the parts book and this is my interpretation. It suggests when using 2 outside weights that the inner wheel weight be attached with 2 bolts (#70225325) and the outer weight be attached with 2 different bolts (#70915762). This I believe since there are only 4 holes in the weights. These bolt lengths are not identified in the Dealers Parts Catalog for Standard Parts form D-10. What do you guys think?
|
|
AC CA, Ferguson TO-20, Ford NAA, M-M BG, AC #3 Mower, SC Plow, PH Digger, AC 720's with Ark 700 loader & Brantly Backhoe, "Mini B" w/flathead Ford V8
|
|
caRon
Silver Level
Joined: 14 Sep 2009
Location: Indiana
Points: 298
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jan 2011 at 8:09pm |
|
Thanks for all the replies and pics!!! Ron
|
|
CA Tractor
|
|
