 Topic: late 7000 vs 7020 differences
Posted: 11 Jun 2024 at 7:56pm |
OK I am looking at two different tractors. One is a 7000 Black Belly (1979 I believe) and the other is a 7020 (1978 possibly 79) both tractors are similar, they have cab and rubber is about the same on both. They both need a little TLC but are repairable and thus priced likewise.
What are the main differences between the 2? any one significantly better that the other?
They both have the same 649T engine only the 7020 has an intercooler thus a little more HP correct??
What about transmissions? Do both tractors have a wet clutch? Not 100% sure yet but the 7020 has a power director transmission. based on the year I am guessing the 16 forward and 4 reverse...but not sure yet. I hear a lot of people say the powershift transmission is better.. Which brings the question....What exactly is the difference between a power Director and a Power Shift? How do they differ in operation?
Any other major differences to be aware of between the two? rear gears? Hydraulics?
all other things equal, at similar prices, is one significantly better than the other for any reason.
Edited by slimbo3006 - 11 Jun 2024 at 8:05pm
|
 |
|
Sponsored Links
|
|
|
SilverShoes
Bronze Level
Joined: 20 Feb 2014
Location: Seneca, Kansas
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 6:08am |
|
7000 in my mind is a glorified utility tractor. Open center hydraulics, small frame ect. 7020 has closed center hydraulics channel frame, power director or power shift. Both good trannys but for longevity I’d go with the power director. Just my thoughts
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3226
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 8:34am |
[/QUOTE] Which brings the question....What exactly is the difference between a power Director and a Power Shift? How do they differ in operation? [/QUOTE] 20 speed PD has; 5 gear trans x 2 shift Range (Slow/Fast) x 2 Foot floor buttons(Low/High). 16 speed PD has; 4 gear trans x 2 shift Range (Slow/Fast) x 2 foot floor buttons(Low/High). 12 speed PS has; 6 gear trans x 2 shift range (Slow/Fast). Both PD require foot clutch to be disengaged to shift both Trans & Range. Floor foot buttons are “on-the-go” shifting(no clutch). Floor buttons are usable in every gear/range, so extremely convenient for slower headland(turnrows) maneuvering. 16 speed was standard. 20 speed was optional. PS’s trans gears 1-6 can be shifted “on-the-go”(no clutch). 2 speed range shift requires foot clutch disengaged. Operators right hand can quickly move 6 gear trans lever between desired speeds.

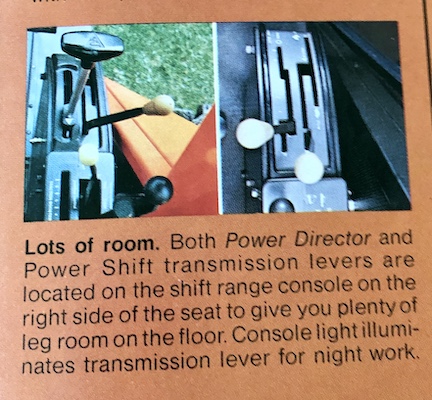

Heres a photo of each trans console. PD is on the left. PS is on the right. Both trans have a Range shift lever on their right sides (Park-Slow/Fast).
PD's T-handle can twist&To-Fro for selecting 1,2,4 forward, 5,3,R rearward.
PS's lever moves forward 1-3, then 4-6 & moves back for R.
All the 7010,7020,7030,7040,7045,7050,7060,7080 models have Rear-end Differential Lock as standard equipment. Don't think the 7000 offered it?
Edited by AC7060IL - 12 Jun 2024 at 9:29am
|
|
CAL(KS)
Orange Level
Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3775
|
Post Options
Thanks(1)
Quote Reply
Posted: 12 Jun 2024 at 8:41am |
|
isnt the 7000 basically a 190/200 with a 3 speed pd? or is that just the maroon belly?
|
|
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20
Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
|
|
slimbo3006
Bronze Level
Joined: 20 Apr 2024
Location: Virginia
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 9:49am |
Thank you AC7060IL!!!! that is exactly the info I was looking for on the transmissions. It seems online everyone uses Power Director and Power Shift interchangeably so I have never been 100% sure which was which. Seen where many people refer to the foot buttons as the power shift button....
As for the one I am looking at. He says it has a PD but I'm not sure which one. Waiting on pics.
I am kinda leaning towards the 7020 right now.
What is the advantage of the Closed Hydraulics? I see looking at specs that the 7020 is rated at double the gpm as the 7000. Other than the flow, what are the other differences?
Just from looking at the pictures, I see the 7020 does not appear to have the hydraulic pump mounted to the engine in the same place as the 7000.
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3226
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 10:40am |
 slimbo3006 wrote:
Just from looking at the pictures, I see the 7020 does not appear to have the hydraulic pump mounted to the engine in the same place as the 7000.
|
7020's hydraulic pump is positioned in lower front of transmission & on tractor's right side behind auxiliary fuel tank. There may or may not be a transmission protective plate (under belly plate) covering hydraulic pump/front of transmission. It was standard equipment, so plate should be there? Trans/drivetrain drives hydraulic pump, not engine.
Edited by AC7060IL - 12 Jun 2024 at 11:53pm
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7254
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 3:26pm |
CAL(KS) wrote:
isnt the 7000 basically a 190/200 with a 3 speed pd? or is that just the maroon belly? |
That was the maroon belly. The black belly 7000 was more similar to its bigger brothers.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 19721
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 3:35pm |
|
The black chassis 7000 got the new Acousta cab 2 like the bigger tractors did. The black chassis got the gear shift moved from the floor to the side console as a "TEE" handle shifter like the 7010's and up. The Power Shift clutch was changed slightly internally to use "low" range as the inching clutch, instead of the dry clutch on the flywheel. Other than that, it is the same tractor as the maroon chassis models. Nothing in the drive line is shared with 7010's and bigger. The bloodline came from the 190/200 and while the rear end housing and 3-point hitch look very much the same, I can assure you not one part in the transmission or final drives is the same as a 190/200. The differential and brakes are similar, but that is it. The torque tube is a completely different casting and different internals from a 190/200. A fully independent 540/1000 PTO was standard equipment on the 7000 tractor.
Edited by DrAllis - 13 Jun 2024 at 9:26pm
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3349
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 9:46pm |
|
what one would be a step up from the wd45
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 19721
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 10:34pm |
|
D-17 replaced the WD-45.
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3349
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 11:11pm |
|
just trying to be funney , but thier are lot big changes each year ,model after the 100 series.... i would not know any of the goods or bads
|
|
injpumpEd
Orange Level Access
Joined: 13 Sep 2009
Location: Walnut IL
Points: 4802
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2024 at 7:02am |
|
The difference between a 7000 and a 7010/20 is about like the difference between a WD45 and a D17 lmao! Entirely different drivetrain family.
|
|
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
|
|
bigal121892
Orange Level
Joined: 05 Jan 2010
Location: Nebraska
Points: 761
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2024 at 7:21am |
|
Given the choice, go with the 7020.
|
|
slimbo3006
Bronze Level
Joined: 20 Apr 2024
Location: Virginia
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2024 at 2:57pm |
bigal121892 wrote:
Given the choice, go with the 7020.
|
Yea After doing some research I am definitely leaning this way. Just dealing with some logistical issues with picking it up.
|
|
DON G
Silver Level Access
Joined: 14 Feb 2014
Location: Lowpoint, IL
Points: 402
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jun 2024 at 1:42pm |
 The 7020 has power brakes.
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2162
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jun 2024 at 4:10pm |
|
And massive wet clutch, differential lock, planetary final drives, much heavier 3 point, far better hydraulic system and bigger rear end components. Plus, more common parts with the other models.
|
|
