Help, Fixing a WD45 power steering unit.
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Jacob (WI,ND) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kenmare, ND
Points: 1247 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jacob (WI,ND) Quote  Post ReplyReply Direct Link To This Post Topic: Help, Fixing a WD45 power steering unit.
    Posted: 29 May 2010 at 11:28am
Hi all,
As you may have read here:
I now own a WD45, with power steering, which is broke.

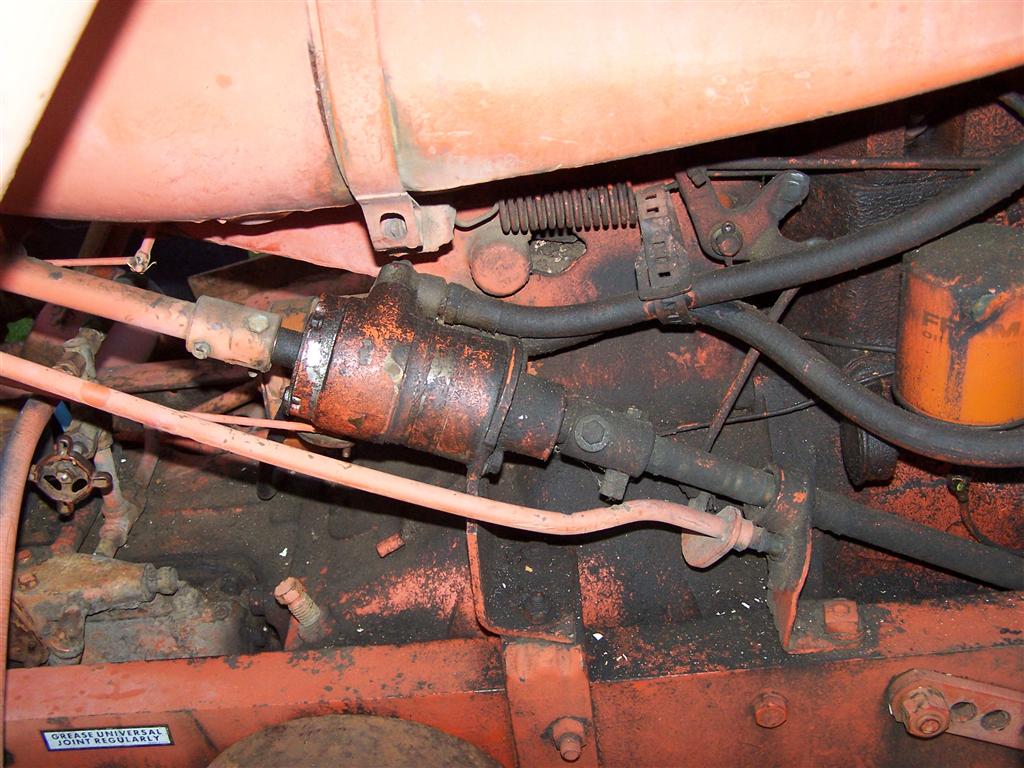

here is a couple of pics:

I believe this is a factory power steering unit correct?
I'm no expert, I have a lot to learn about PS units now.

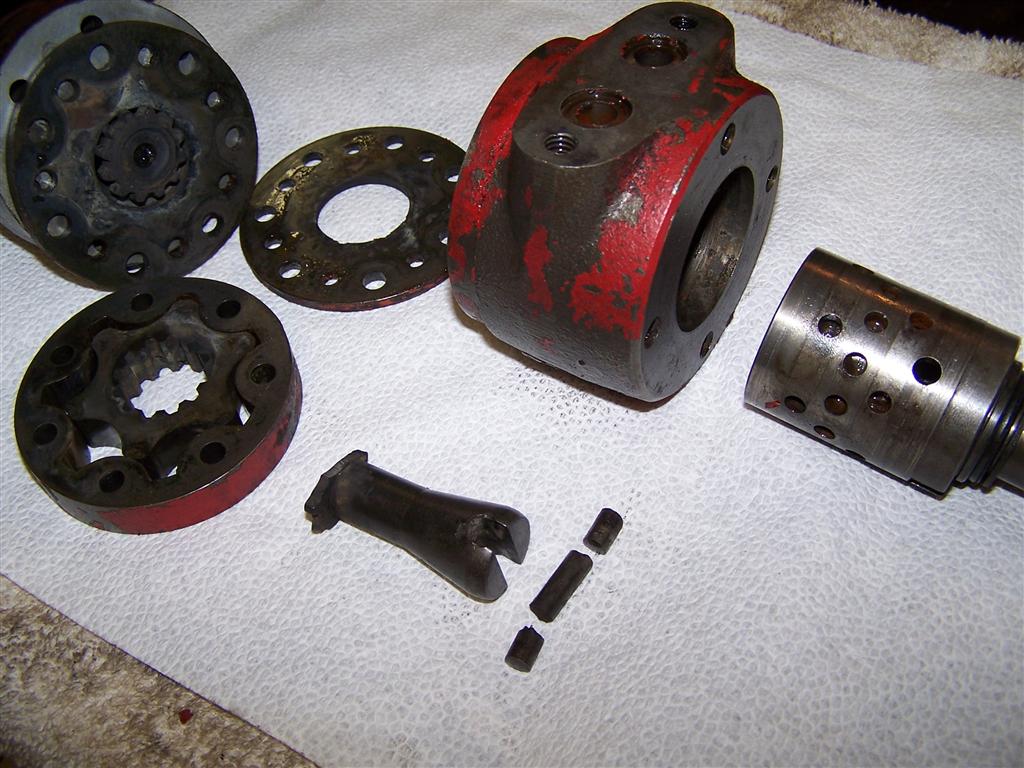

As the second pic shows, Dad and I took apart the unit last night, and found the broken part.  Which can be seen in the bottom center of the pic.

First, are parts available for these units?
Anyone have a manual scanned for PS?  So we know what the parts are called, etc... none of my manuals mention PS. sad.  I'll have to get more I guess.
Anyone have any pics of how things should be on the tractor?
Should the reservoir be cut through the hood?  How should it fasten?  I'm wondering if mine is right or not.
What type of fluid does a guy use in these systems? regular PS fluid?  Mine was empty, except for a dribble of what we think was water.

I'll have more pics later (the're on my sisters camera, which is with her)
And I'm sure I'll have more questions too!

Thanks in advance for any help or advice!
Jacob Swanson
1920 6-12; 1925,1926 20-35 longfenders; 1925,1926 15-25's; 1927,1929 20-35 shortfenders; C; B's; IB; WC's; WD; WD45
Back to Top
Sponsored Links


Back to Top
Jacob (WI,ND) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kenmare, ND
Points: 1247 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jacob (WI,ND) Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2010 at 12:17pm
Got some more pics!

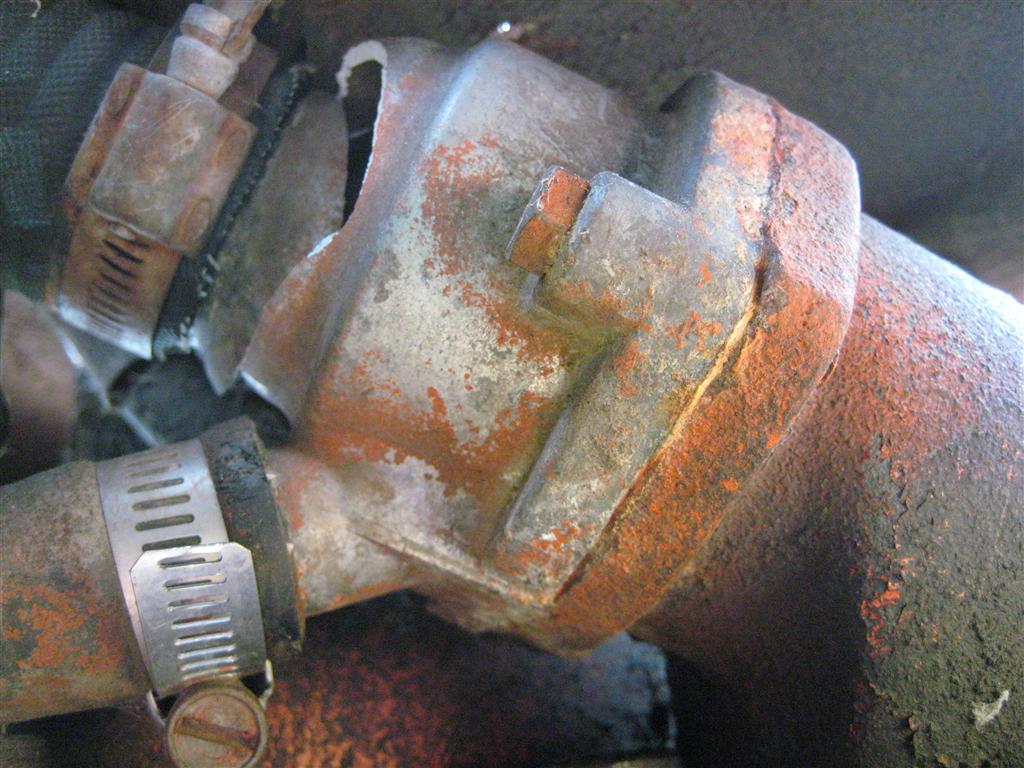

Here is one broken part that I will need.  The tree that fell on the tractor broke it.
