 Topic: HD 11 Head gaskets
Posted: 25 May 2020 at 5:26pm |

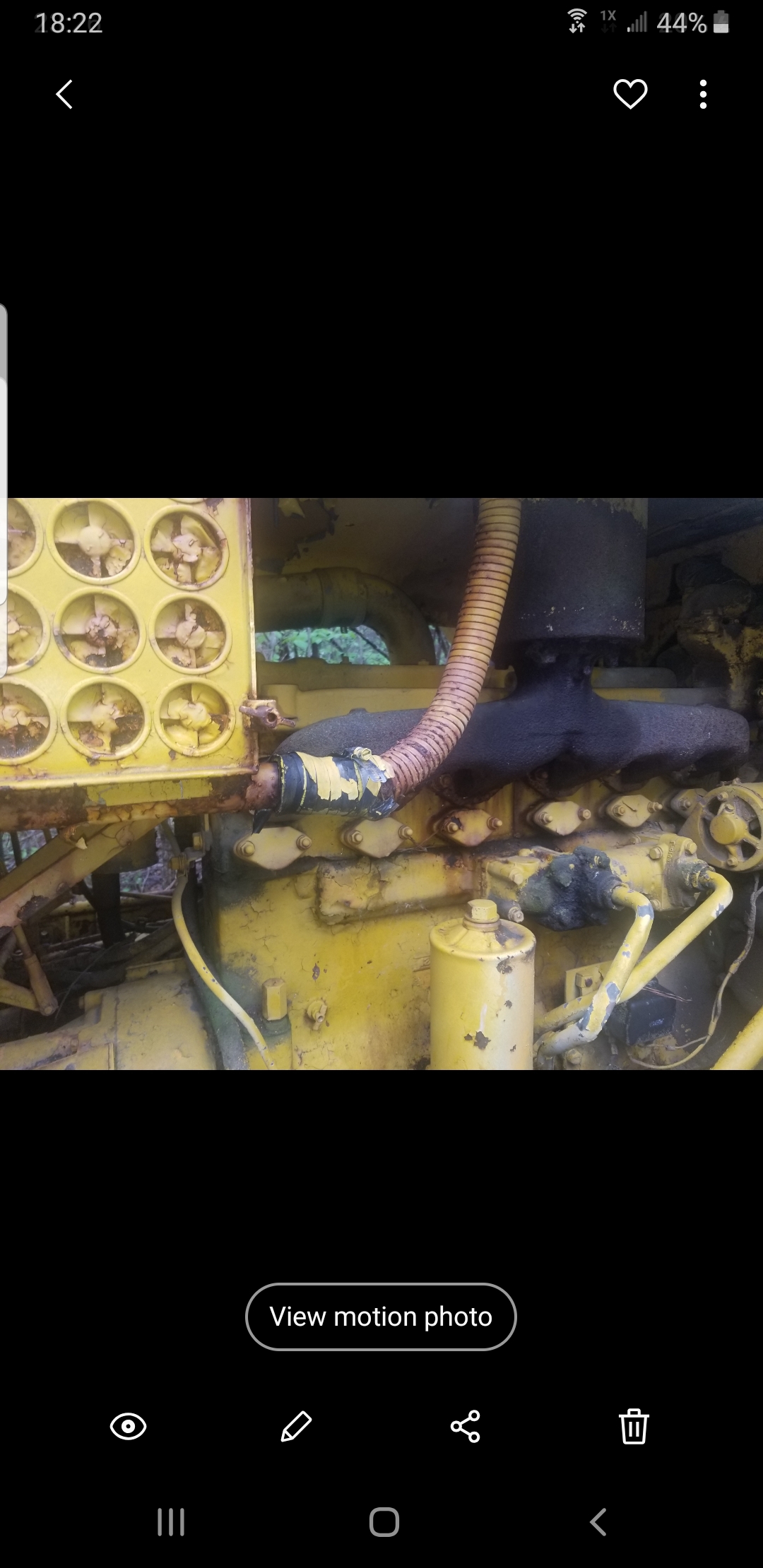

Can anyone help me with head gasket numbers. HD 11 dozer engine serial# 11-6054, tractor # Hd11-6131, I looked through my parts manual and unfortunately that page is missing. Just my luck. I took picture of the diagram, to show style of heads. Any information would be greatly appreciated.
Edited by 05ecofire - 25 May 2020 at 5:30pm
|
 |
|
Sponsored Links
|
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 31094
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 6:17pm |
|
Google MINNPAR, go to Parts Manuals, Allis, then Crawler Dozer scroll down to HD 11, Can download the latest and greatest.
|
|
gemdozer
Orange Level
Joined: 17 Sep 2009
Points: 989
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 6:39pm |
|
The front head gasket 4354294 and the rear head gasket 4354295 and fire ring 4339848
|
|
05ecofire
Bronze Level
Joined: 17 May 2020
Location: WV
Points: 26
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 7:15pm |
|
Thank you very much.
|
|
05ecofire
Bronze Level
Joined: 17 May 2020
Location: WV
Points: 26
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 8:02pm |
|
Minnpar download is missing this page as well. anyone have any idea where I can pick up the gaskets?
Edited by 05ecofire - 25 May 2020 at 8:20pm
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 8:33pm |
Gaskets for a Lanova head AC Forty Five grader (parts page numbered the same as yours) are
Front 4347798 rear 4347799, no fire ring. Package of the pair 4335831
Might work if you're stuck as AFIK the heads are the same
|
|
05ecofire
Bronze Level
Joined: 17 May 2020
Location: WV
Points: 26
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 9:47pm |
|
I have searched and searched I cant get any of these part numbers to produce a head gasket. Anyone know the trick to finding them?
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2020 at 10:52pm |
|
Try "7" in front of the number as happened with later parts numbers
|
|
gemdozer
Orange Level
Joined: 17 Sep 2009
Points: 989
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 May 2020 at 5:23am |
|
The head gaskets number are HD11 prior to serial no 6427 in my munual parts
|
|
05ecofire
Bronze Level
Joined: 17 May 2020
Location: WV
Points: 26
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 May 2020 at 9:31am |
|
What number is in you manual?
|
|
gemdozer
Orange Level
Joined: 17 Sep 2009
Points: 989
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 May 2020 at 11:51am |
|
The head gasket parts number for HD11 4354294 front and rear is 4354245 and fire ring should be included with and in my second manual head gasket with no fire ring are 4347798 front and rear 4347799
|
|
Bret (OH)
Silver Level
Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 347
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2020 at 7:50am |
The Parts Depot in Wisconsin shows they have 74347798 and 74347799
Machinery Parts Warehouse shows they have 74354294 for $23, and 74354295 for $16
|
|
05ecofire
Bronze Level
Joined: 17 May 2020
Location: WV
Points: 26
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jun 2020 at 9:41pm |
|
Dang. I ordered them from minnpar. Cost me $270.00 I will definitely be checking out those other sights from here on out thank you
Edited by 05ecofire - 08 Jun 2020 at 9:43pm
|
|
