D-19 OEM Overhaul Kit
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Roger Chlian View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Mar 2014
Location: 10441 moe hall
Points: 58 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Chlian Quote  Post ReplyReply Direct Link To This Post Topic: D-19 OEM Overhaul Kit
    Posted: 13 Dec 2022 at 4:26pm

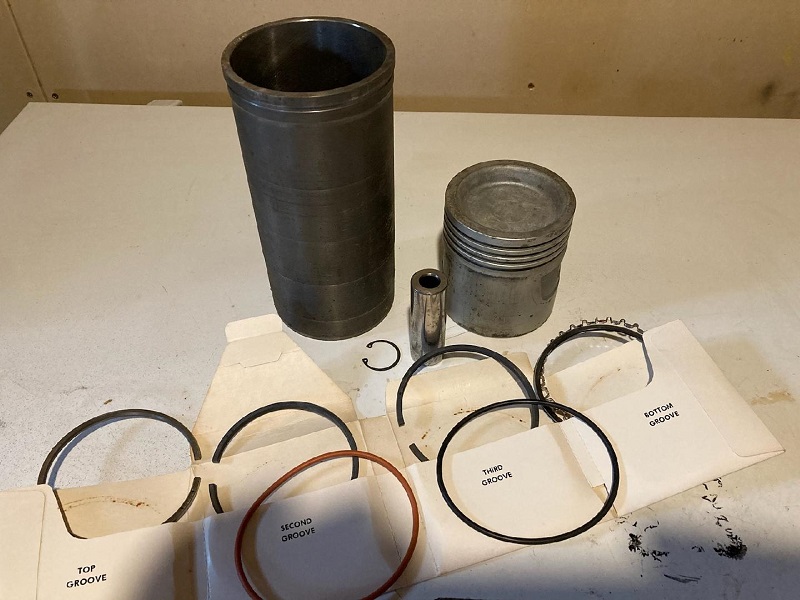

For Sale: OEM sleeves-pistons for D-19. Tag on box says Deutz-Allis #74062376 4.
For more information call RC at 320-760-6882.


Edited by Roger Chlian - 15 Dec 2022 at 10:36am
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21399 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2022 at 9:01am
So, are they gasoline??   diesel ?? or LPG ??
Back to Top
Roger Chlian View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Mar 2014
Location: 10441 moe hall
Points: 58 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Chlian Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2022 at 11:02am
In original boxes and the Deutz Allis # is: 74062376 4
Back to Top
only AC orange View Drop Down
Silver Level Access
Silver Level Access


Joined: 06 Dec 2014
Location: Eastern Indiana
Points: 494 		Post Options Post Options   Thanks (0) Thanks(0)   Quote only AC orange Quote  Post ReplyReply Direct Link To This Post Posted: 16 Dec 2022 at 8:06am
You haven't answered Dr's question! Gas, Diesel, or LP?
Back to Top
Nathan (SD) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Day County SD
Points: 1274 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nathan (SD) Quote  Post ReplyReply Direct Link To This Post Posted: 16 Dec 2022 at 8:17am
Originally posted by only AC orange only AC orange wrote:

You haven't answered Dr's question! Gas, Diesel, or LP?

Pretty sure he has no idea.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21399 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 16 Dec 2022 at 10:23pm
I can't verify what they are either with that part number. If they have a power crater bowl, they are gas or maybe LP gas. Flat tops are diesel even if they have one small valve relief cut in them.
Back to Top
Roger Chlian View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Mar 2014
Location: 10441 moe hall
Points: 58 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Chlian Quote  Post ReplyReply Direct Link To This Post Posted: 20 Dec 2022 at 11:23am
Pistons do have a cut out.  We are not able to get the picture posted due to size limitations?  If I had your phone number I could send the picture via text message. my number 320-760-6882. Thank you. RC
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1331 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2022 at 10:50am
Roger send you a text
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1331 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2022 at 11:08am
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21399 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2022 at 12:18pm
They are gasoline or LPG. Probably gas, as they didn't make many LP tractors.
Back to Top
NEVER green View Drop Down
Orange Level Access
Orange Level Access


Joined: 28 Feb 2013
Location: MN.
Points: 8197 		Post Options Post Options   Thanks (0) Thanks(0)   Quote NEVER green Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2022 at 1:07pm

  That dish looks pretty deep to be gas????
2-8050 1-7080 6080 D-19 modelE & A 7040   R50
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3772 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2022 at 3:38pm
Look like the ones I pulled from my gas 262
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21399 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 22 Dec 2022 at 7:04pm
The only difference between gasoline and LPgas pistons is the piston pin hole location changing the compression ratio from 8.0 to 1 up to 9.35 to 1.
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3772 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2022 at 4:48pm
Service manual for D19 states center of pin bore to top of piston is 1.927 to 1.9345 for gas and 2.081 to 2.0885 for LP.
Back to Top
Roger Chlian View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Mar 2014
Location: 10441 moe hall
Points: 58 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Chlian Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2022 at 9:22pm
Kit is for a gas. Thank you to all of you who helped identify this overhaul kit.  I appreciated the help. Merry Christmas!
