D17 series one early model front axle pivot pin

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   The rear pivot pin on my 1959 gas D 17 wide front fell out at some point. I was backing into my shop and the rear part of the front axle fell down. I bought a new one at my local shop and it turns out that it was for the higher serial number. He was able to find one that’s going to work in his old stock trailer. The later series shoulder bolt and castle nut made sense. I’m not sure what’s supposed to hold this thing in. Does anybody have any experience with installing one of these? It seems like I probably need to take the front plate off and slide it through the axle and the back plate and then bolt the front plate back on.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
mdcwells Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 06 Oct 2024 Location: IOWA Points: 7	Post Options Post Reply Quote mdcwells Report Post Thanks(0) Quote Reply Topic: D17 series one early model front axle pivot pin Posted: 15 Oct 2026 at 8:29pm
	The rear pivot pin on my 1959 gas D 17 wide front fell out at some point. I was backing into my shop and the rear part of the front axle fell down. I bought a new one at my local shop and it turns out that it was for the higher serial number. He was able to find one that’s going to work in his old stock trailer. The later series shoulder bolt and castle nut made sense. I’m not sure what’s supposed to hold this thing in. Does anybody have any experience with installing one of these? It seems like I probably need to take the front plate off and slide it through the axle and the back plate and then bolt the front plate back on.

Sponsored Links

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 23649	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 15 Oct 2026 at 9:58pm
	There are three pieces you can hold in your hands. The bracket attaching plate (it bolts to the bell housing under the tractor with two 1/2" NC bolts) the actual pivot pin (that has two diameters with the largest diameter in the middle) and finally the wrap around strap plate (it surrounds the pivot pin and clamps the pivot pin between the bracket attaching plate). The design premise wasn't really all that great in my opinion as they didn't hold up well as a loader tractor. A diesel tractor was 3 inches longer than a gas tractor. They used the same front axle between the two chassis. The wrap around strap plate went on the rear of the bracket attaching plate on the shorter gas tractor and the front side on the longer diesel. The pivot pin was also flipped around the other way depending on which length the wheelbase was. Grade 8 bolts should always be used as well as lock nuts. Page 284 on the D-17 (prior to series 4) on AGCO Parts books shows all parts. There is NO WAY to use that newer shoulder bolt on that old axle, so give that idea up. Edited by DrAllis - 16 Oct 2026 at 7:52am

HudCo Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 29 Jan 2013 Location: Plymouth Utah Points: 4255	Post Options Post Reply Quote HudCo Report Post Thanks(0) Quote Reply Posted: 16 Oct 2026 at 4:21pm
	i had to replace the front pivot pin and bushing under the front bolster on my series 1 diesel. helped tighten up the back a lot

Roscoe63 Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 13 May 2026 Location: Indiana Points: 42	Post Options Post Reply Quote Roscoe63 Report Post Thanks(0) Quote Reply Posted: 14 hours 1 minutes ago at 8:41am

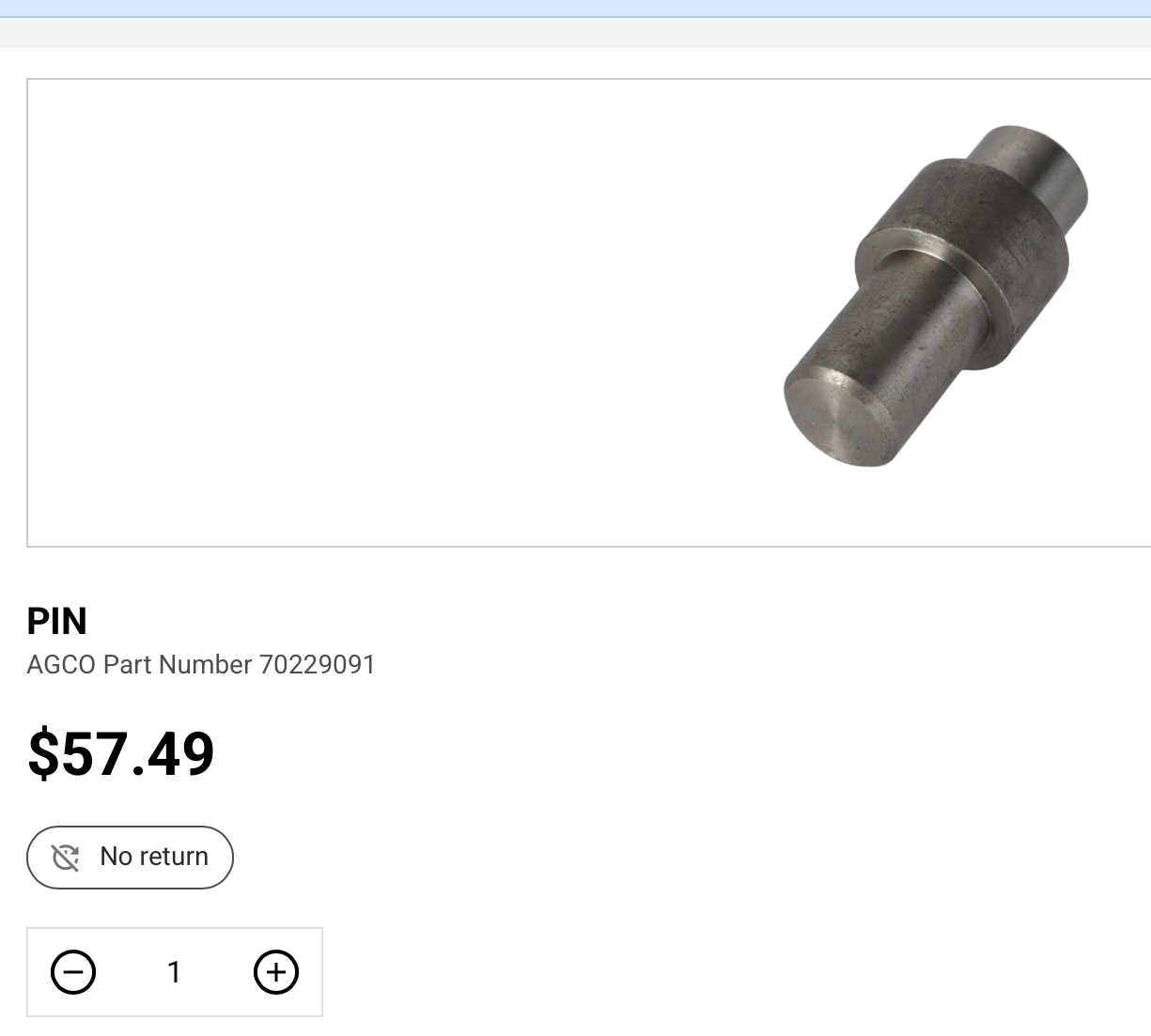

	Seems like it might still be available
