D17 PD Quadrant Question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Topic: D17 PD Quadrant Question
    Posted: 01 Apr 2018 at 6:28pm
Hi guys, a friend of mine has a D17, and the power director won't stay engaged on the high side. It will stay in low, and will drive fine in high, if you hold your foot on the PD lever to keep it in the forward position. I looked at the quadrant, and I'm not too familiar with the D series. How is the PD supposed to stay engaged in either range? It looks like on the quadrant, the only notch is for the neutral position. The area on the quadrant for "low" and "high" just looks like a smooth flat area.

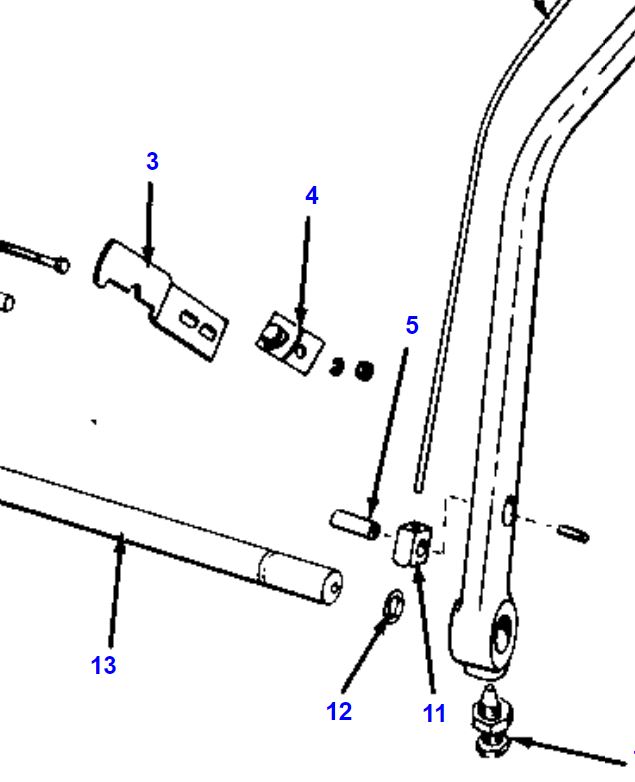

I am attaching a photo from the AGCO Parts Book website of the quadrant. It is part #3.


Any help would be appreciated! He's tried adjusting the position of the quadrant, but that hasn't helped.
Thanks!
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 22159 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2018 at 6:31pm
Jumping out of high or low range is usually because the ramp plates and rollers are worn out inside the clutch. The quadrant is for neutral only.
Back to Top
Stan R View Drop Down
Orange Level Access
Orange Level Access


Joined: 03 Dec 2009
Location: MA
Points: 994 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan R Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2018 at 6:32pm
Make sure the lock bolt on bottom is tight.

Take away washers on the stop bolts so as to allow the handle to go a bit further forward.

Those I think are the "easy ones".
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2018 at 6:59pm
Ok. I will relay the information. He said growing up they always left it in high range and rarely shifted to neutral or low. Maybe that's why high is worn more than low.
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 01 Apr 2018 at 9:26pm
The DR has the answer.     MACK
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7539 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2018 at 2:51am
The bolt on #4 in your diagram usually has a stack of flat washers.  If you remove some of those washers, the hand clutch will hold better.  My D14 was famous for jumping out of high 30 years ago.  Removed some of those washers and never had a problem since.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
