 Topic: D-17 High Crop Diesel
Posted: 09 Jun 2024 at 1:37pm |
I own a D17, single front wheel, high crop with the 6 cylinder N/A diesel. How rare is this tractor? Have only found a few pictures online with the single wheel high crop and they only had gas engines.
|
 |
|
Sponsored Links
|
|
|
omahagreg
Orange Level Access
Joined: 11 Sep 2009
Location: Omaha, Nebraska
Points: 2806
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2024 at 9:47pm |
|
Not sure how rare. Dad took a picture of a D17 hi crop single front wheel propane near Beatrice NE several years ago!
|
|
Greg Kroeker
1950 WD with wide front and Freeman trip loader
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8492
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2024 at 9:58pm |
Welcome to the forum. Would have to see more pictures. The front single wheel doesn’t look high crop. Hopefully some of the other gentlemen that have more knowledge on high crops will chime in
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 148
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2024 at 10:17pm |
|
According to Swinford’s book, only about 40 single front wheel diesels were made in 58-59, and no other numbers shown for the later years. The grille, oval muffler, lights on fenders, etc appear to be series 3 or newer. Maybe someone converted it to its present configuration. Who knows? Please provide the serial number for the tractor. Would definitely tell more of the story.
Edited by RedHeeler79 - 09 Jun 2024 at 10:19pm
|
|
Mauldin1
Bronze Level
Joined: 09 Jun 2024
Location: Alabama
Points: 5
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 1:16am |
|

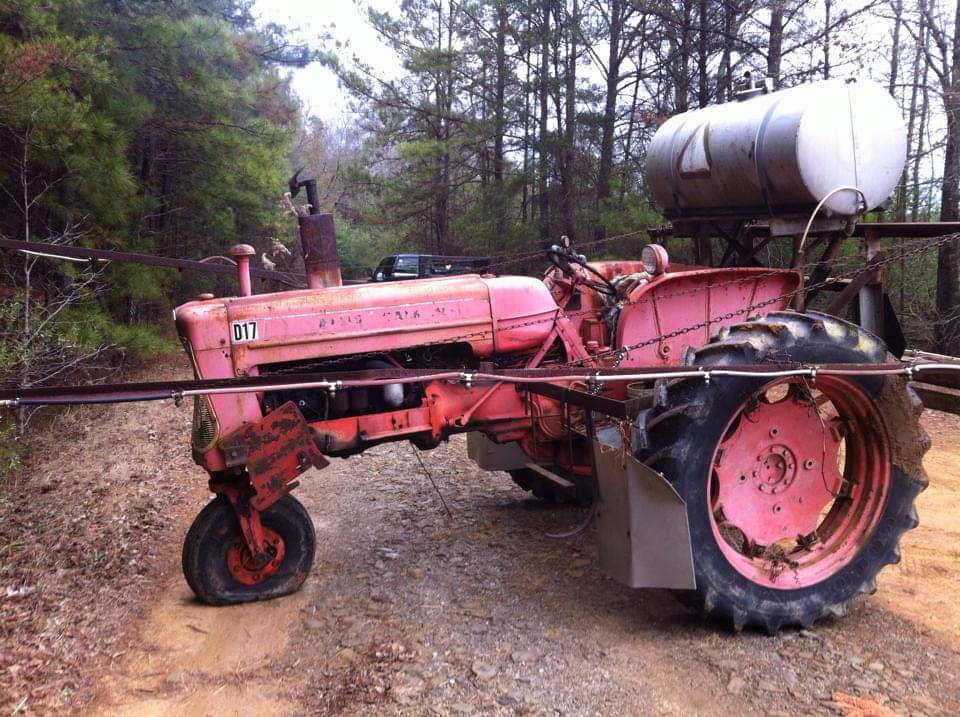

This is the only picture I have right now. Will have to cut the briar patch down to get to the serial number. My daughter was wanting to start going to tractor shows and i thought this would be something different from the John Deere and Farmall crowds.
|
|
Mauldin1
Bronze Level
Joined: 09 Jun 2024
Location: Alabama
Points: 5
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 1:24am |
|
We are the second owner of it. The original owner had it set up with the spray boom and all for cotton and corn. I thought the drop boxes on the rear axle housing is what considered it to be a high crop.
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5640
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 4:42am |
|
|
|
TramwayGuy
Orange Level Access
Joined: 19 Jan 2010
Location: Northern NY
Points: 11483
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 7:26am |
|
“... I thought the drop boxes on the rear axle housing is what considered it to be a high crop.”
All D17s had drop boxes on the rear axles.
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7390
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 3:42pm |
|
I don't think it's a factory high crop. Looks like someone just put taller wheels on the back of a regular D17 and called it a high crop.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8492
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2024 at 7:50pm |
That’s what I was thinking dseries. But no matter what it is I like your idea of daughter taking to tractor shows
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2208
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 9:37am |

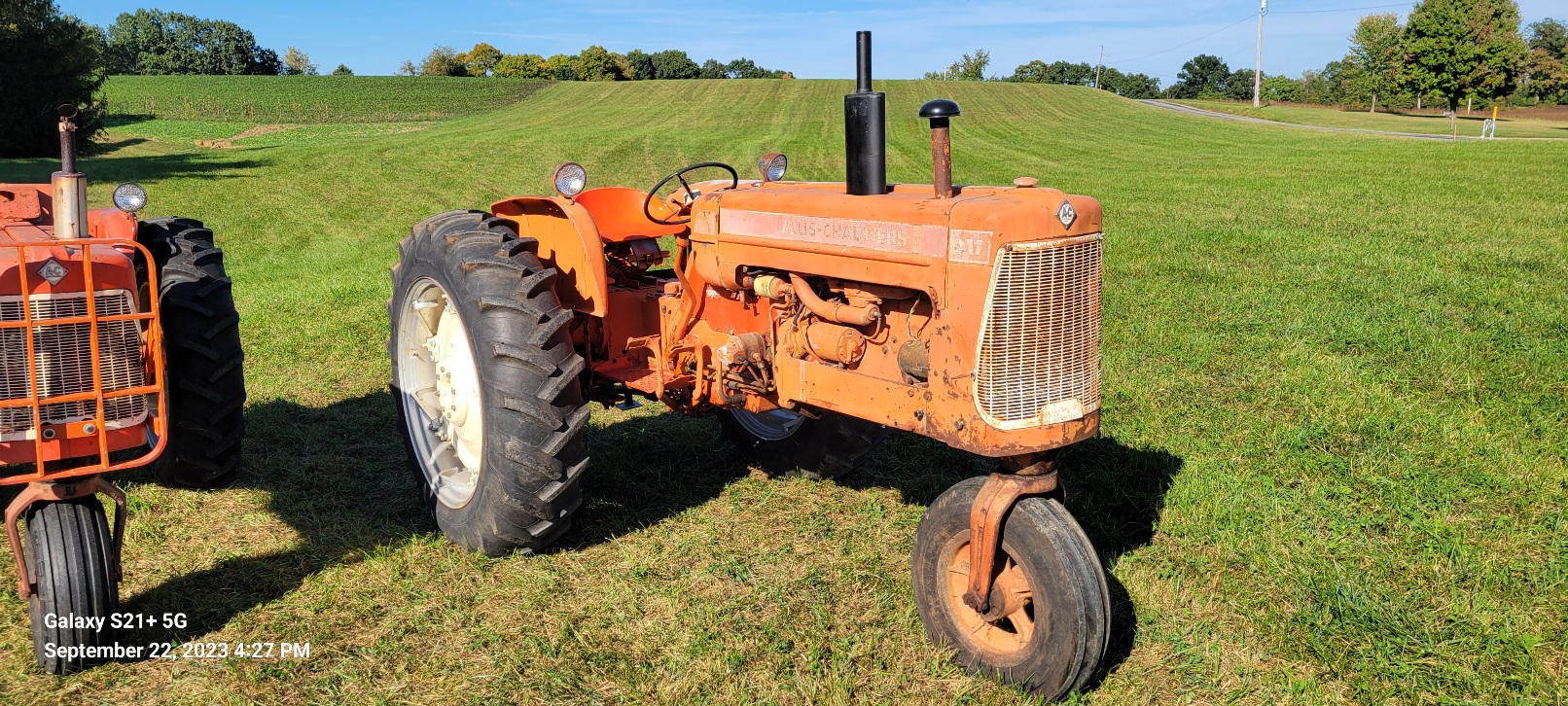

Looking at this photo, several things stand out.. The hydraulic leaver is on the steering column with light on fenders and oval muffler. Makes it a series III... It could have originally been a high crop with longer final drop housings. As the fenders are located much higher from the tire than a standard row crop ...... The photo I have included is a standard row crop D17 IV tractor with 38" rear and a 16" front .
Edited by Macon Rounds - 11 Jun 2024 at 9:39am
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8492
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 7:14pm |
|
Macon brings up a good point with the fenders. Or is it an allusion and tires spaced out far away.
Edited by Mikez - 11 Jun 2024 at 7:15pm
|
|
Mauldin1
Bronze Level
Joined: 09 Jun 2024
Location: Alabama
Points: 5
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 7:17pm |
|
It's wide and tall
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:33pm |
here is my WD SFW High Crop
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:35pm |
have a few other sfw's also
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:37pm |
|

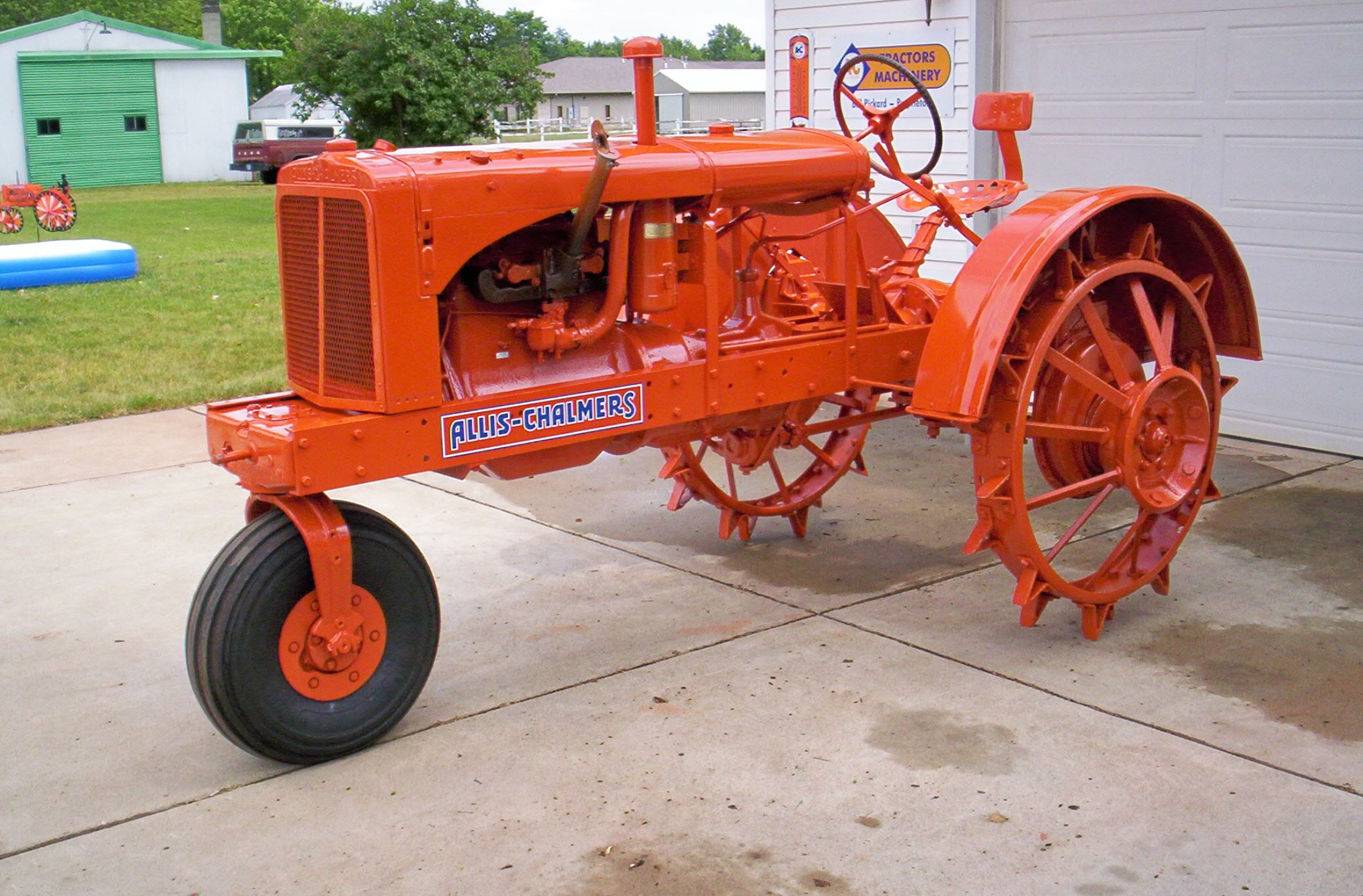

SFW WC
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:37pm |
|
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:39pm |
|
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2024 at 8:47pm |
On your D17 it has the standard fork, hc forks were extended 3 inches. for the solid cast wheel 9-10 tire or the spoke type wheel 7.50 -16 tire.the rear wheels would be 38 in spin outs.
have a good one Bill P
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2208
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 9:06am |
|
MikeZ
Brings up a good point...
I believe the the fenders only look like there higher in regard to the rear tires. Due to the wide wheel spacing and photo angle....
So it is a standard row crop tractor with 38" rear and SFW.
These tractors are referred to as high clearance tractors...
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
Macon Rounds
Orange Level
Joined: 18 Feb 2010
Location: Pittsburgh Pa
Points: 2208
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 9:10am |

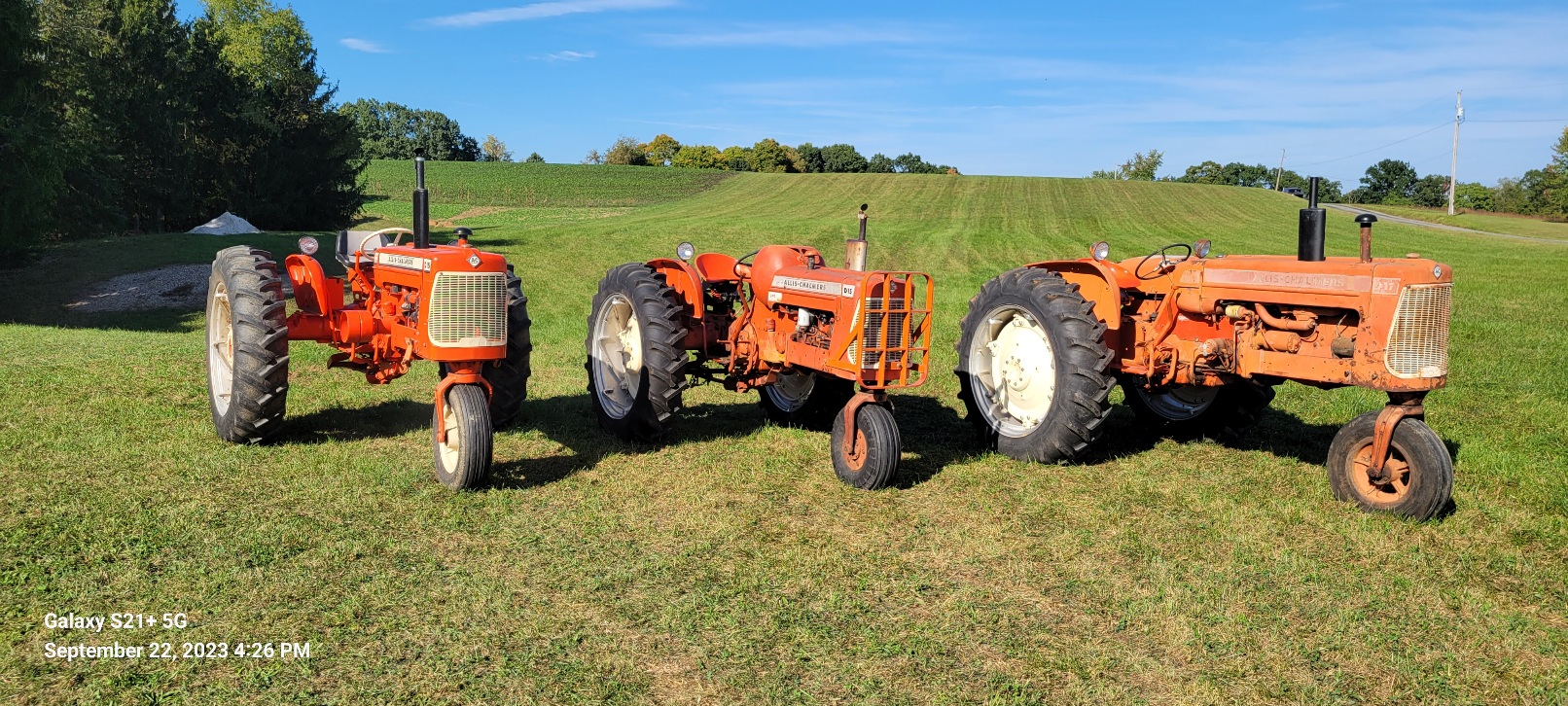

These three tractors are all configured as high clearance...
|
|
The Allis "D" Series Tractors, Gravely Walk behind Tractors, Cowboy Action Shooting !!!!!!! And Checkmate
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3664
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 7:37pm |
|
the d17 series 1 diesel parts tractor that i have has taller fender mountsabout 4 inches higher than my other d17d it all looks the same except every thing is just taller
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5055
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2024 at 9:26pm |
|
Nice looking tractors everyone. Neat to see some single front wheel tractors, don’t see those often. Bill that’s a nice collection that you have, did you do the restorations?
Rob
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
BILLP-SE-MI
Orange Level
Joined: 13 Sep 2009
Location: SE Michigan
Points: 682
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2024 at 6:47pm |
Rob. If they needed any repair I did the work, painted them also.
for got to add my WD45 sfw in work clothes.
|
|
