 Topic: D12 fuel gauge float and gasket questions
Posted: 23 Nov 2021 at 8:03pm |
|
I was able to retrieve the original cork float that was loose in the tank (so that's why my fuel gauge doesn't work, hmmm). Been shopping online for a replacement float and looking for info on how to attach the new float. Seems people get pretty creative with substituting floats from used auto pumps. But if I order a new float specifically for the D12, does it come with whatever I need to attach it? I see there are indents in the rod, above and below where the cork was originally attached. But no remnants of whatever the original hardware was that fit in those indents. How to attach the new float?
Next, the rubber gasket for the gauge is hard and cracked. I read where people had trouble getting a replacement that would actually seal well. Can anybody point me in the direction of where to order a gasket that works?
|
 |
|
Sponsored Links
|
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10704
|
Post Options
Thanks(1)
Quote Reply
Posted: 23 Nov 2021 at 10:06pm |
|
I used a non sinkable float from a car, kind of flatted oval shape. It is slide onto shaft up against a washer and flat spot, then a washer behind, rod flattened behind washer to hold it on. Gasket is available thru AGCO and several other sources. HTH Tracy
|
|
No greater gift than healthy grandkids!
|
|
Gatz in NE
Orange Level
Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043
|
Post Options
Thanks(1)
Quote Reply
Posted: 23 Nov 2021 at 10:42pm |
here's a thread on gauge floats;
https://www.allischalmers.com/forum/d17-gas-gauge-float_topic116387.html

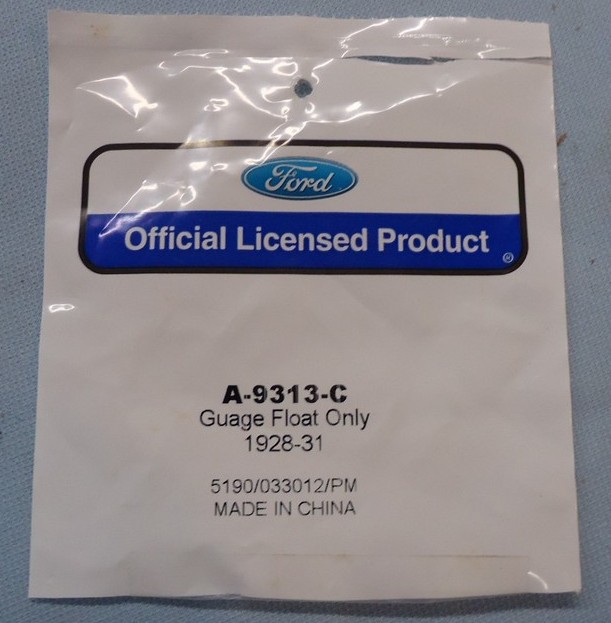

OR, a Model A float ; Ford #A-9313-C works very well.
It's what I used on my D17sIV

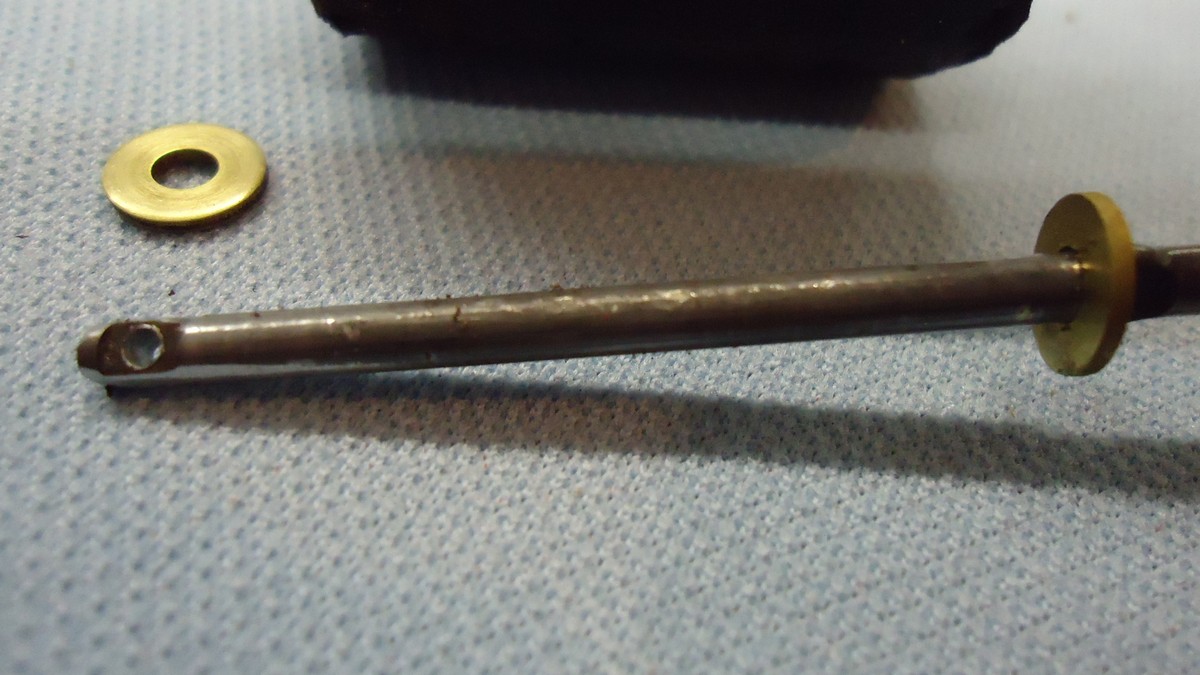

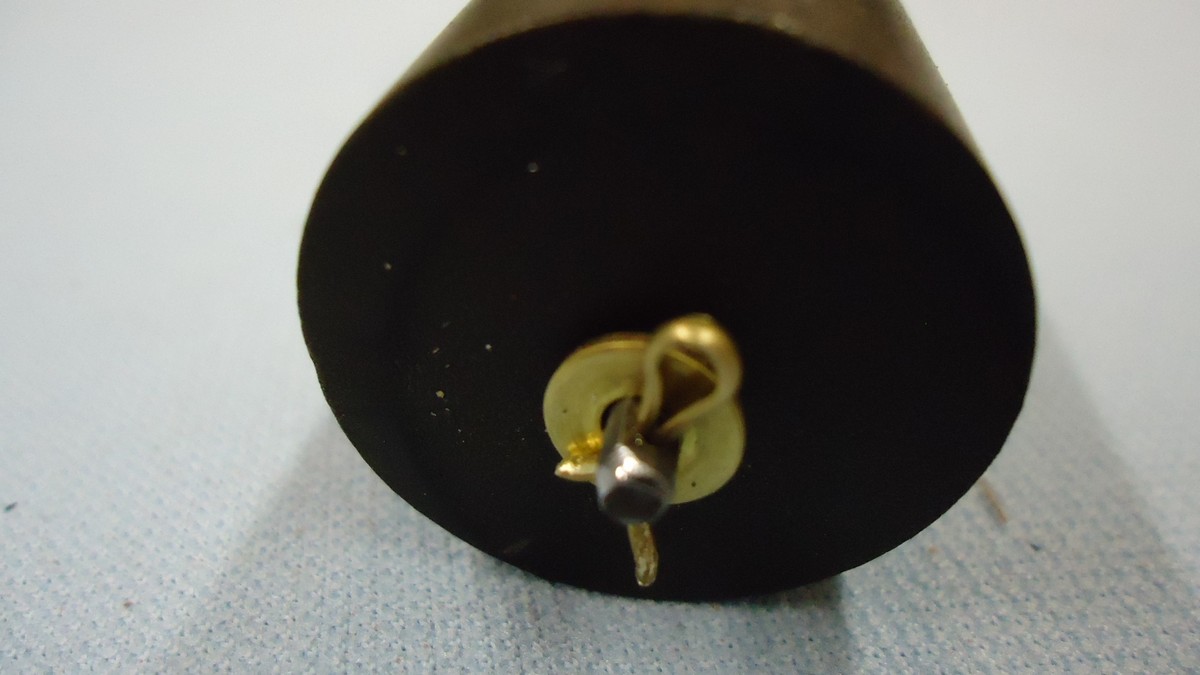

A bit of modifying is in order, but it can be done with ordinary tools and a drill. IIRC, the open end is swedged to retain the float. Just have to use a small hammer and "re-round" it, then file it down smooth 'til you can remove the float. Drill a small hole for a brass cotter key in the same area to keep the new float on; used 2) brass washers , one on either side of the new float.
If you don't like buying Chinese, buy from Norm as in the thread above.
For a gasket, I'd get some stock gasket material from an auto supply and cut one to fit. Apply a thin coat of Permatex #2 to both sides of the gasket. Trim if needed. Permatex #2 is the non-hardening type.
Edited by Gatz in NE - 23 Nov 2021 at 10:49pm
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 2991
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 6:22am |
|
I had the same issue on my D17 this summer. The movable gauge parts were pretty wore, so I bought new. The new gauge doesn't read correctly. 1/8-1/4 on the gauge is empty. I ran out of gas a couple weeks ago...
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4959
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 7:00am |
|
I've just used a sediment bowl gasket for the gauge. There are a couple different sizes and I don't remember which one fit, although it is just a standard size, nothing special.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
JLS retired
Bronze Level
Joined: 22 Apr 2021
Location: SE Missouri
Points: 42
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 10:15am |
|
sometimes you have to bend the wire arm just a little bit to make a guage read correctly when you replace parts, good luck, usually takes a couple of tries!
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 2991
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 10:22am |
|
That's a brilliant idea! I don't know why I didn't think of that!!
|
|
David(Stockbridge)MI
Orange Level
Joined: 15 Sep 2009
Location: Stockbridge MI
Points: 536
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 11:17am |
|
we sell the floats and the gaskets. djstractorparts.com
|
|
All "NEW" Web Site http://www.djstractorparts.com
2035,A,U,UC,WF unstyled,WF styled,WC High Crop (cane),RC,B,IB,C,CA,WD,WD45,G,D10,D12,D14,D15,D15 II,D17,D19,WC styled,WC unstyled H3 crawler
|
|
ShellJ
Bronze Level
Joined: 29 Oct 2021
Location: 64747
Points: 35
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Nov 2021 at 12:13pm |
|
Great pictures! I have small copper washers and steel Cotter pins on hand. But I'll try to find brass if that's going to hold up better.
As I mentioned, my float had already fallen off the rod and there are no washers left, must have disentegrated over the years. I will take a closer look at the rod. Seems like it just had flat spots, indentations, not flared out beyond the round shape (if that makes sense). Maybe the flare is so minimal that it's not obvious.
|
|
Gatz in NE
Orange Level
Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043
|
Post Options
Thanks(1)
Quote Reply
Posted: 24 Nov 2021 at 5:23pm |
|
no reason for brass….just what I had on hand at the time
|
|
