 Topic: Can you ID this?
Posted: 16 Oct 2011 at 8:38pm |

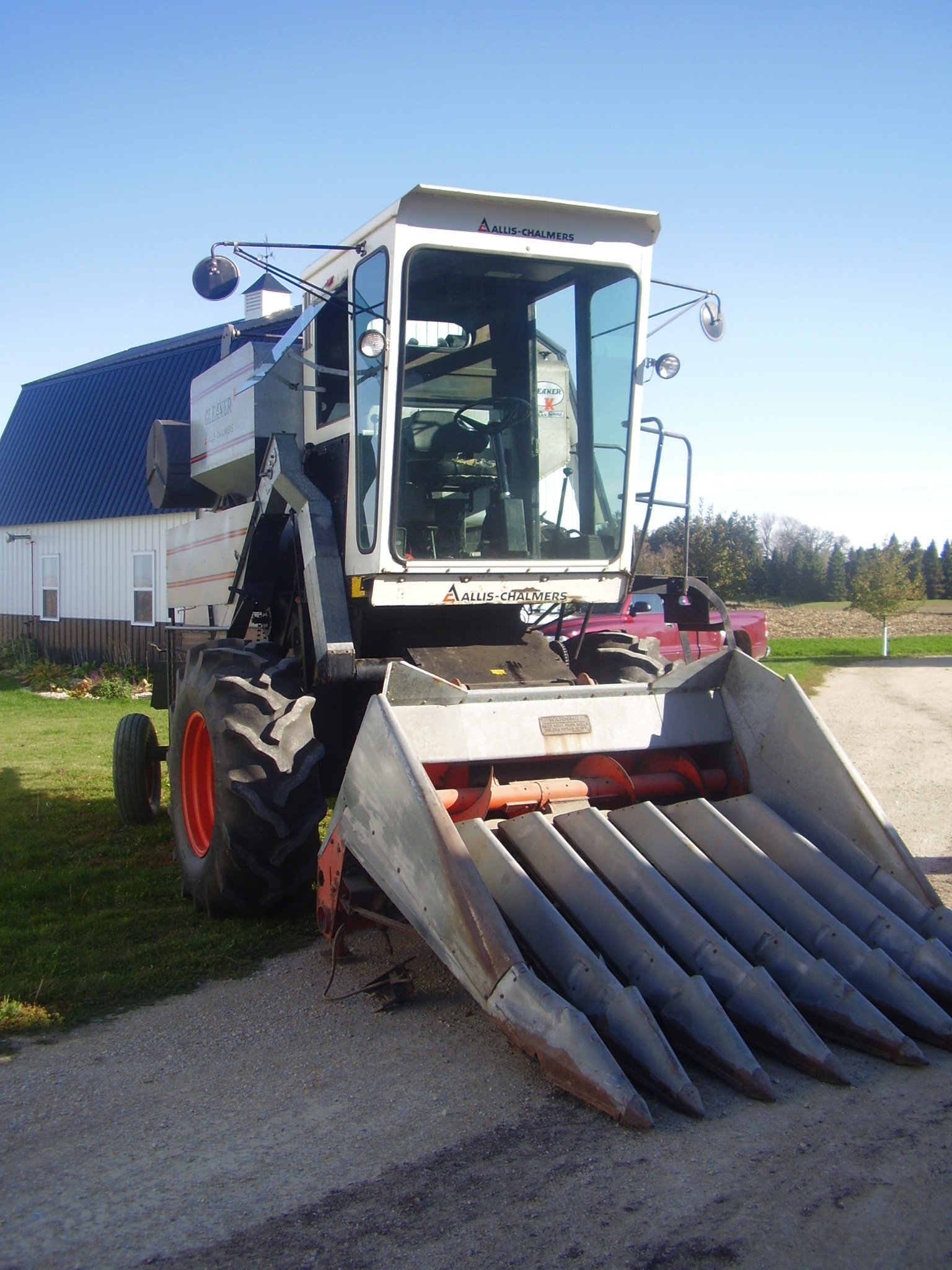

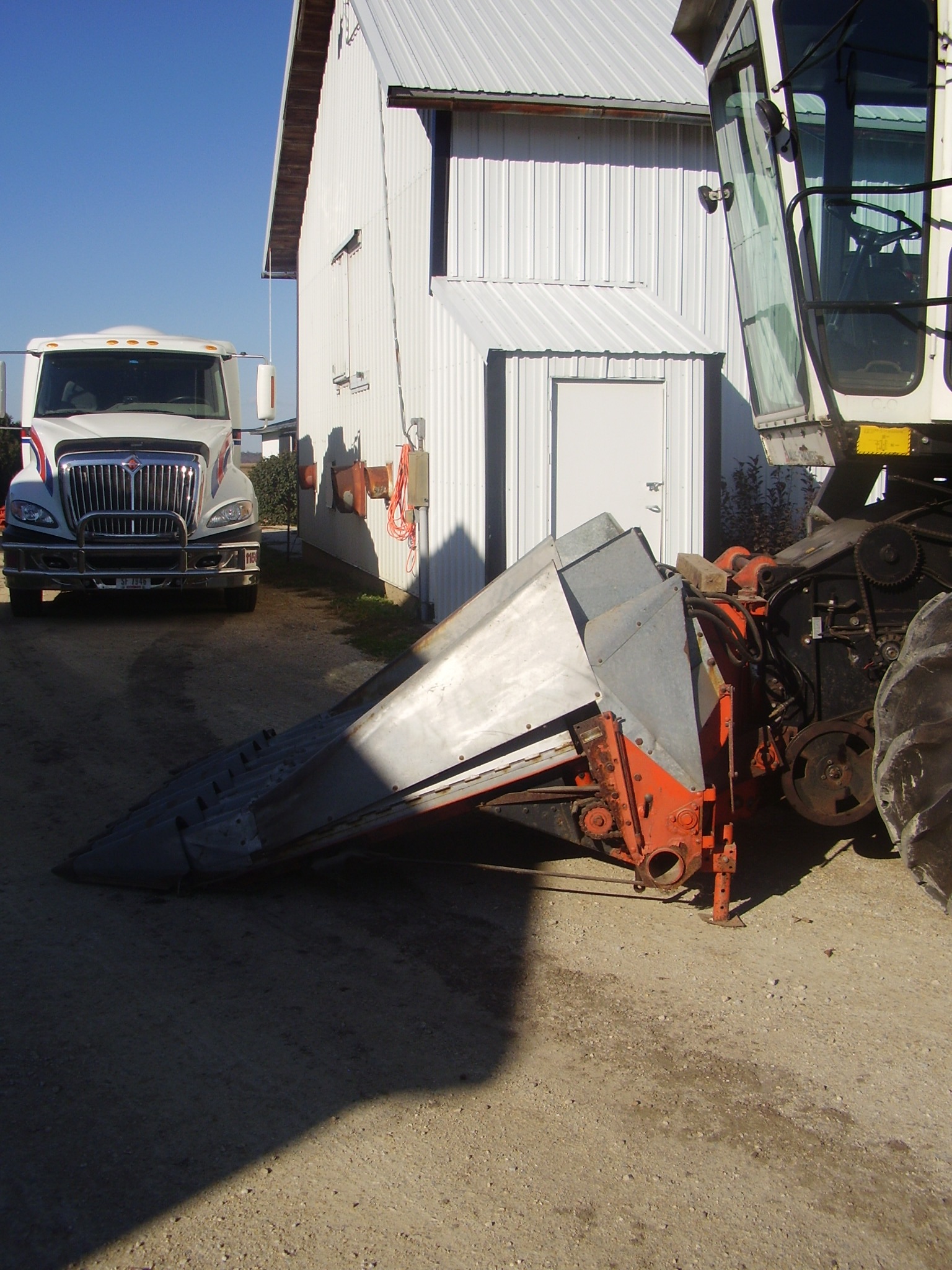

Can anyone guess what this is? Does anyone know what model this is?
|
 |
|
Sponsored Links
|
|
|
Rfdeere
Orange Level
Joined: 11 Sep 2009
Location: Idaville, IN
Points: 3283
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 8:52pm |
|
I assume that is the head you were telling me about when we talked earlier this summer ? That is very interesting.
|
|
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2060
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 8:58pm |
what that set for 5" rows holy crap!
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
Roddo
Orange Level
Joined: 16 Jul 2010
Location: Brant, Ontario
Points: 466
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 9:10pm |
Looks like a row crop head. They look a lot like a corn head, but lack snapping rolls and deck plates in place of a gathering belt and knives. They were once popular for beans, sunflowers and the like. Supposedly quite good at what they did, but never really caught on. Here is a similar model brought to you by Deere. http://www.tractorhouse.com/listingsdetail/detail.aspx?OHID=6476601&
Edited by Roddo - 16 Oct 2011 at 9:12pm
|
|
daughter#1
Silver Level
Joined: 07 Apr 2010
Location: castalia iowa
Points: 110
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 9:13pm |
|
we bought a k a few months ago so i could put this exp. head on and try it. After getting it on have been able to look under it. The head has 7 ten inch rows and a snapping roll on only one row (the far right side), a local case mechanic was just looking at it with me,and it has left both of us scratching our heads, hope to try it soon to see what happens.
|
|
John (C-IL)
Orange Level
Joined: 11 Sep 2009
Location: Illinois
Points: 1654
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 9:50pm |
Back in the day when guys were just starting to think about narrow row corn using only one snapping roll was the way that it was done. Since then with the advent of 20 inch rows the OEM engineers have come up with better solutions.
40 years ago one of the seed companies experimented with solid seeded corn, a 10 inch head would be one way to deal with that.
|
|
SHAMELESS
Orange Level
Joined: 13 Sep 2009
Location: EAST NE
Points: 29486
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 10:11pm |
|
with the mods shown in the pic, appears someone has moved "in" from a larger head! that'll make that "K" grunt! but it'll handle it in 1st gear in 100 bu corn! may hafta run that truck along side to keep unloading!! show us another pic...from the front! and maybe outta the cab winder!
|
|
daughter#1
Silver Level
Joined: 07 Apr 2010
Location: castalia iowa
Points: 110
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 10:18pm |
the head was made back when allis was experimenting with narrow rows,dekalb had a number that had small ears, have been told it worked great.
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2060
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 10:26pm |
|
Man that is somthin!
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
SHAMELESS
Orange Level
Joined: 13 Sep 2009
Location: EAST NE
Points: 29486
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Oct 2011 at 11:05pm |
|
yep...that looks just like my ole lady's....oooops...i mean my loving wifes..."K" combine!!
|
|
Rfdeere
Orange Level
Joined: 11 Sep 2009
Location: Idaville, IN
Points: 3283
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2011 at 12:01am |
|
Kelly, does the head have a serial number plate ?
|
|
|
|
daughter#1
Silver Level
Joined: 07 Apr 2010
Location: castalia iowa
Points: 110
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2011 at 5:28am |
|
yes it does Laporte
|
|
BRYAN H
Bronze Level
Joined: 13 Oct 2011
Location: DEFOREST
Points: 125
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2011 at 7:29am |
|
THIS COULD BE A SUN FLOWER HEAD.
|
|
Joe Graunke
Orange Level
Joined: 14 Sep 2009
Location: Clayton WI
Points: 659
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2011 at 12:36pm |
|
That head was able to harvest any row with of corn if u had 20,30,or40 inch corn
Thats a prototype head, Allis built 5 allcrop heads in the 70 those went to scrap.
|
|
Rfdeere
Orange Level
Joined: 11 Sep 2009
Location: Idaville, IN
Points: 3283
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Oct 2011 at 1:51pm |
 Joe Graunke wrote:
That head was able to harvest any row with of corn if u had 20,30,or40 inch corn
Thats a prototype head, Allis built 5 allcrop heads in the 70 those went to scrap. |
So, this is the only one left ?
|
|
|
|
