Build a Synchro rectifier for Onan CCK??
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Heliarc View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 23 Jun 2019
Location: Shickshinny PA
Points: 42 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Heliarc Quote  Post ReplyReply Direct Link To This Post Topic: Build a Synchro rectifier for Onan CCK??
    Posted: 9 hours 28 minutes ago at 7:48am

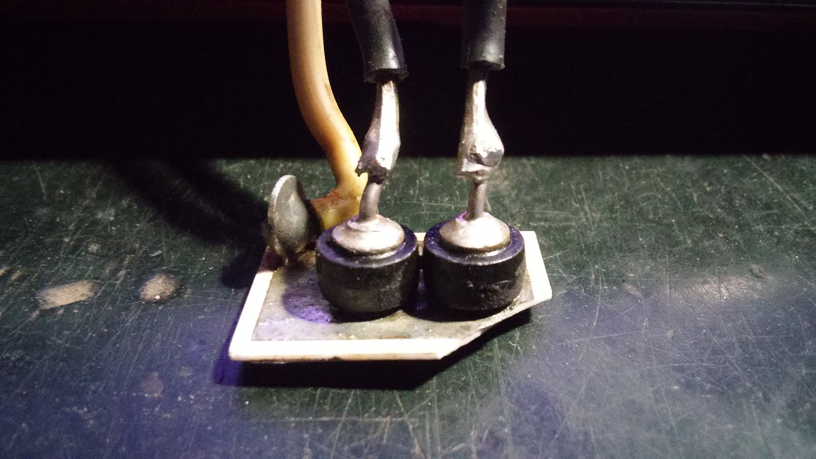

I opened up the old rectifier from an Onan. It was epoxy potted. I was able to put it in boiling water and carefully pick the epoxy away. Not sure what I'm looking at exactly. I figure the white wire is an output and the two black wires are inputs. Black wires (AC) go into two diodes, then out (DC) through the white wire? I figure a guy that knows anything about electronics could build this no problem and for only a few dollars. If anyone on here knows just what this stuff is I'd love to know as well.
Back to Top
Sponsored Links


Back to Top
Codger View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Dec 2020
Location: Utopia
Points: 2329 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Codger Quote  Post ReplyReply Direct Link To This Post Posted: 6 hours 53 minutes ago at 10:23am
You have a half wave rectifier there. Two diodes mounted to a metallic plate which serves as a parallel anode connection, and heat sink to pull the heat away from the diodes. Assembly should be mounted in the airstream of the flywheel cooling fan.  Replace both diodes with 20A units paying attention to the direction. When you impress more positive potential upon the cathode than the anode, the diode conducts rectifying the output through the white wire into a very noisy output DC voltage; good enough to recharge a starting battery.
That's All Folks!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86074 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 4 hours 19 minutes ago at 12:57pm

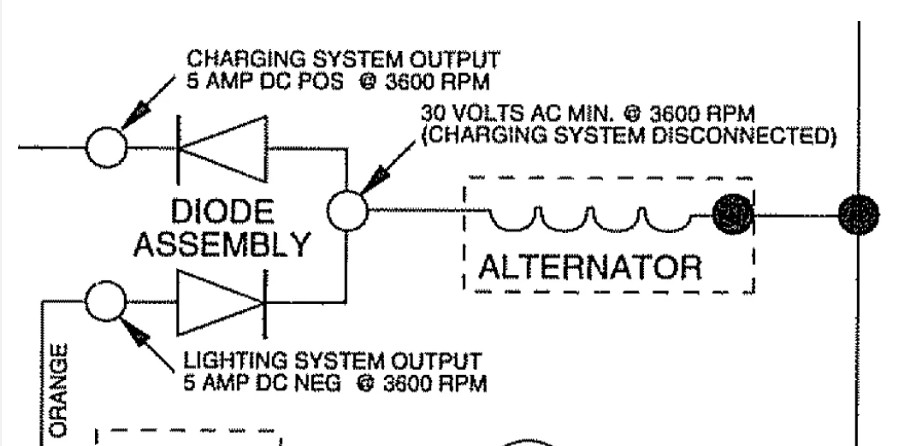

the ones i am familiar with are on the old BRIGGS engines.. ONE WIRE from the alternator goes into the two diodes... One diode changes to DC to charge the battery.. The other DIODE changes to DC to feed the head lights... Head lights dont work off the battery...
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86074 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 3 hours 58 minutes ago at 1:18pm

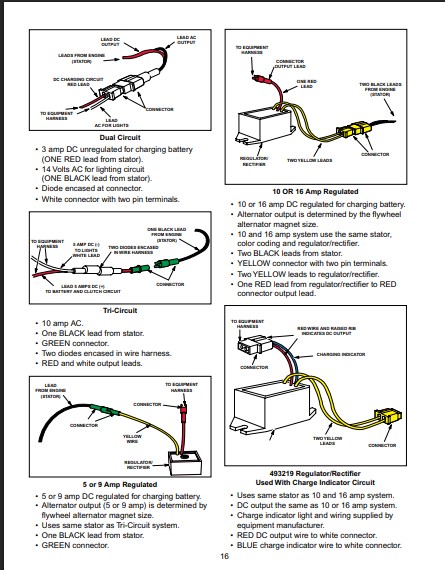

have also seen  Two alternator wire in and ONE 12v DC out put...




Edited by steve(ill) - 3 hours 42 minutes ago at 1:34pm
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86074 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 3 hours 41 minutes ago at 1:35pm
several variations over the years and depends on size of engine / stator..
