 Topic: Anyone seen one of these,,,,?
Posted: 12 Oct 2022 at 10:25am |

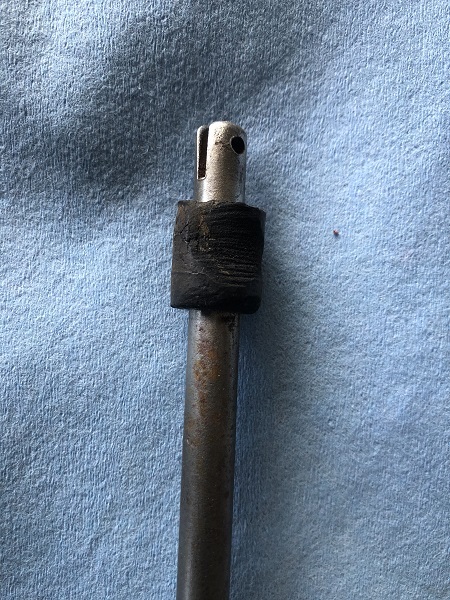

I was in town last Saturday and drove by a big yard sale that had that "MAGIC " word,,,TOOLS,,so pulled in and there were lots of toolsbut prices were a tad too high. Altho, I did but this tool because my Dad used to have one and I put many a mile grinding valves on the one he had,,,,  This one works very well and was obviously well taken care of. The shaft turns about half way, then reverses about same distance and gears inside are nice and firm. What is missing on this one is the rubber suction cuo thay grabs onto the valve and I looked on Ebay and amazon but aib't found one or a supplier for one, Does anybody know where I might find one,,,?
|
 |
|
Sponsored Links
|
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6464
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Oct 2022 at 10:38am |
|
You may have to buy an inexpensive one and modify the suction cup to work on your lucky find.
|
|
Just an old country boy saved by the grace of God.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87563
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Oct 2022 at 12:46pm |
Joe, think of Wal Mart and others that sell them little buggers that stick to mirrors, shower stalls, walls.... i bet one of them would ADAPT to that end rod.....search "rubber suction cup"
Edited by steve(ill) - 12 Oct 2022 at 12:47pm
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87563
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Oct 2022 at 12:51pm |
AMAZON------------ "valve grinder suction cup"
Edited by steve(ill) - 12 Oct 2022 at 12:52pm
|
|
Like them all, but love the "B"s.
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6464
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Oct 2022 at 3:37pm |
 steve(ill) wrote:
AMAZON------------ "valve grinder suction cup"
|
Thanks, Steve. That is exactly what I had in mind.
|
|
Just an old country boy saved by the grace of God.
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3915
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Oct 2022 at 11:57pm |
|
I've got a couple of those. Very good for lapping in valves. Mine have several different adapters including suction cups for different style valve heads.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13692
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 8:55am |
Hey Phil,,whst luck,,! Does your tool have a brand name on it? This one is of high quality steel with really close dems but nary a name or any writing on it,,can't believe it from china,,?? I was gonna take the end cap off to look inside but will have to remove the hand crank to get a look inside,and rather not take apart,,,yet.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5085
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 9:19am |
|
Many valves in older engines had 2 holes in them that mated to a 2 point prong of the valve lapper, Before good rubber was available for suction cups.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3915
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 10:01am |
|
I'll have a look, Joe and see if I can find any ID.
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33850
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 1:55pm |
|
Lapping valves is almost a lost art these days.
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3915
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 10:21pm |

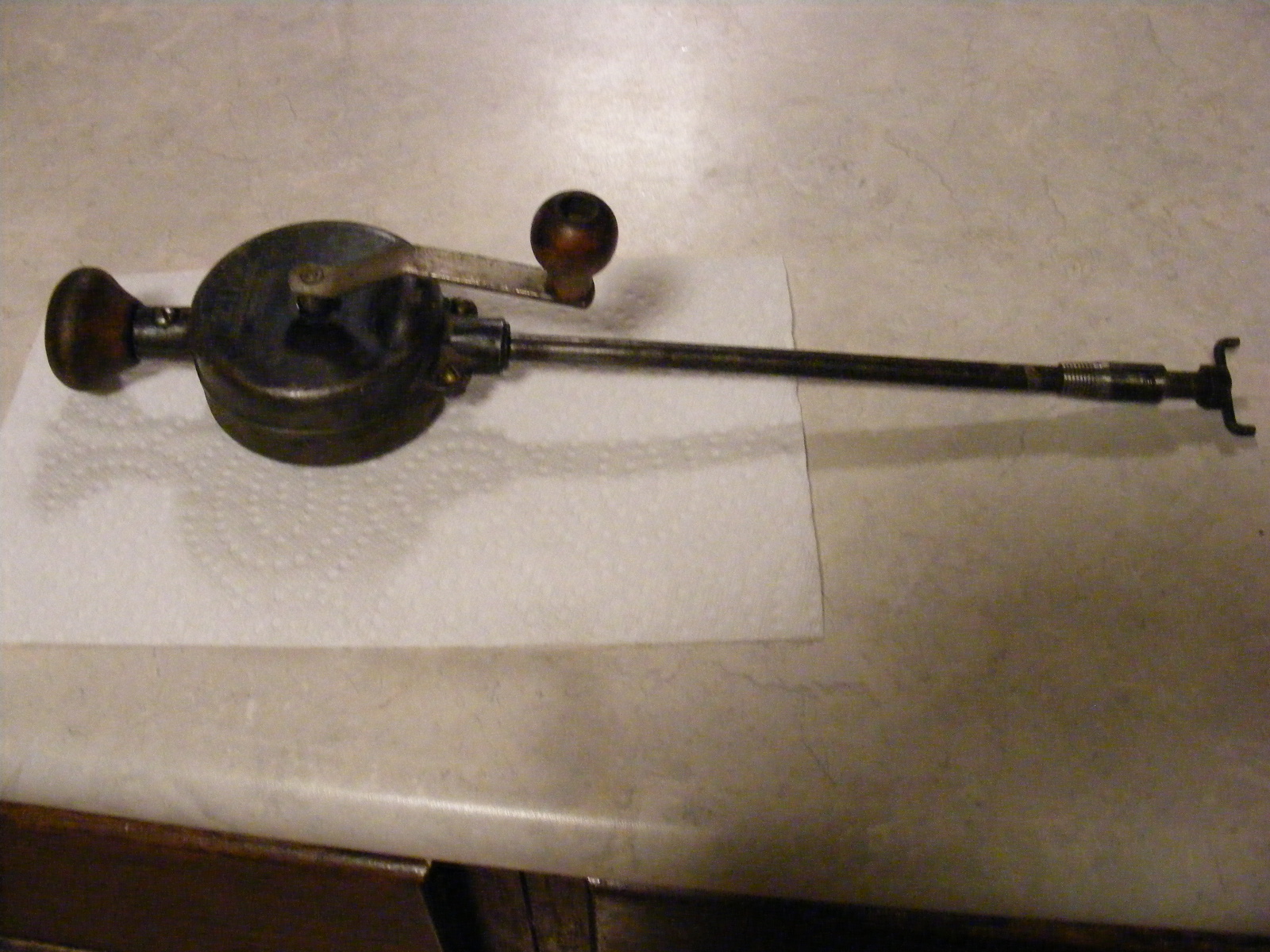

Here are some pics, Joe This is the one I use the most. It has several valve driver tips that can be used. It is marked Zim Manufacturing Co., Chicago.
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3915
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 10:26pm |

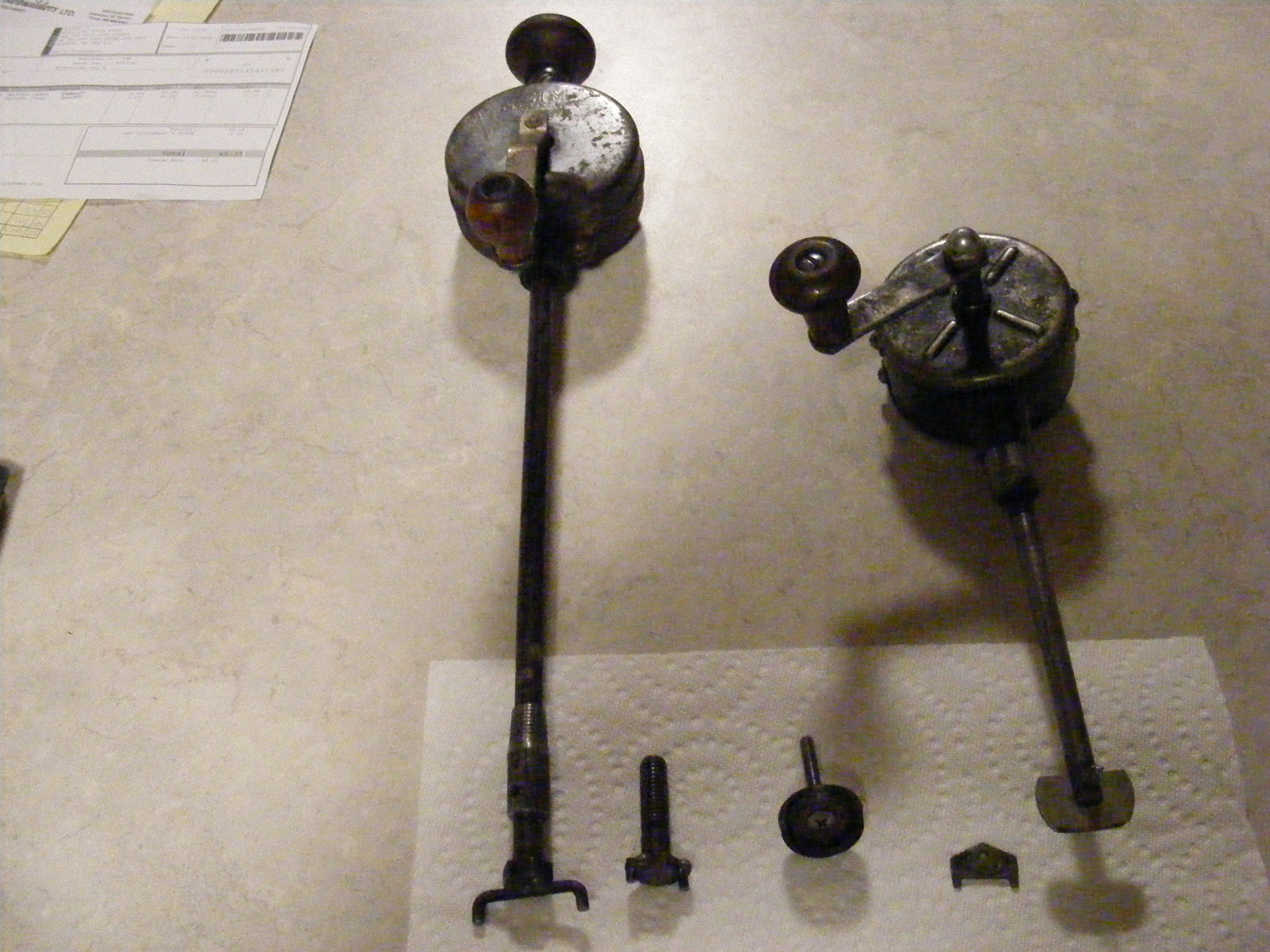

Here are both of the ones I have. The shorter one has no markings of any kind on it. There are some of the driver tips that I have for them. Smaller one has the tip for lapping Twin City tractor valves.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13692
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Oct 2022 at 11:28pm |
HEy THANKS Phil,,that one does look like mine, SO I googles ZiM Mfg co and there is a website but also says compant "Permanently Closed" But,,,But thas OK as Looking at what ole Steve and Hubert posted gave ne a great idea.,,,,,INSTEAD of trying to match a 50 year old tool,,I think I'll order what Steve and Hubert suggested and just cut the end off and machine an "ADAPTER" to marry the end of the grinder to the new end of the wooden hand grinder which has 4 or 5 different size rubber suction cups,,,,,, (I was just lookin for an excuse to use my lathe)  What ya'll think bout that??
Something else,,,this one looks like new,,but NO NAME,,,,?? I didn't think china had been copyin our stuff way back then,,,,???
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87563
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Oct 2022 at 8:54am |
ALBERTSON manufactured a lot of them and sold to "others" with their name stamped into the crank handle.
|
|
Like them all, but love the "B"s.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13692
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Oct 2022 at 10:06am |

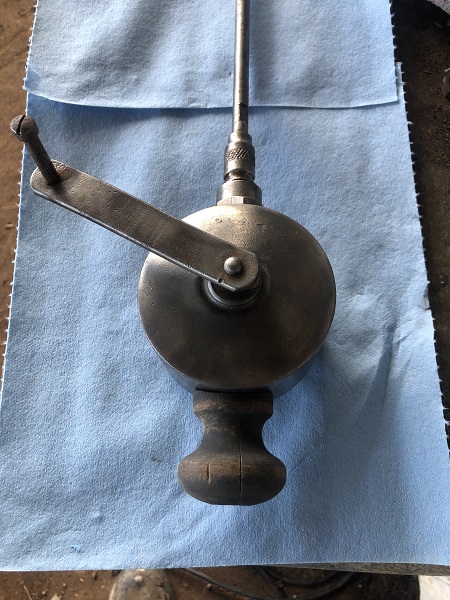

Hey Many Thanks,,, Steve!! I am really impressed with the machining quality of this one as the fit between the cover and the body is so close and the metal is of very high quality. I polished the body to an almost chrome look,,,, Hard to believe the 1917 patent date,,,,!! I don't really see the benefit of such a long shaft, Do you? The shaft on this one is 8" long and I noticed that one of the ones ole Phil has is a short and also a long shaft one. I kinda like a short shaft bout 4" for more stability while grinding,,,,,,?
|
|
Alberta Phil
Orange Level
Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3915
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Oct 2022 at 10:58am |
The long shafts were for grinding valves in headless engines. Back when these things were made, some engines had the head and block cast as one piece. The valves were recessed down in valve ports located in the top of the block in the combustion chamber. The ports were closed off with brass plugs that screwed into the block with sealing washers.

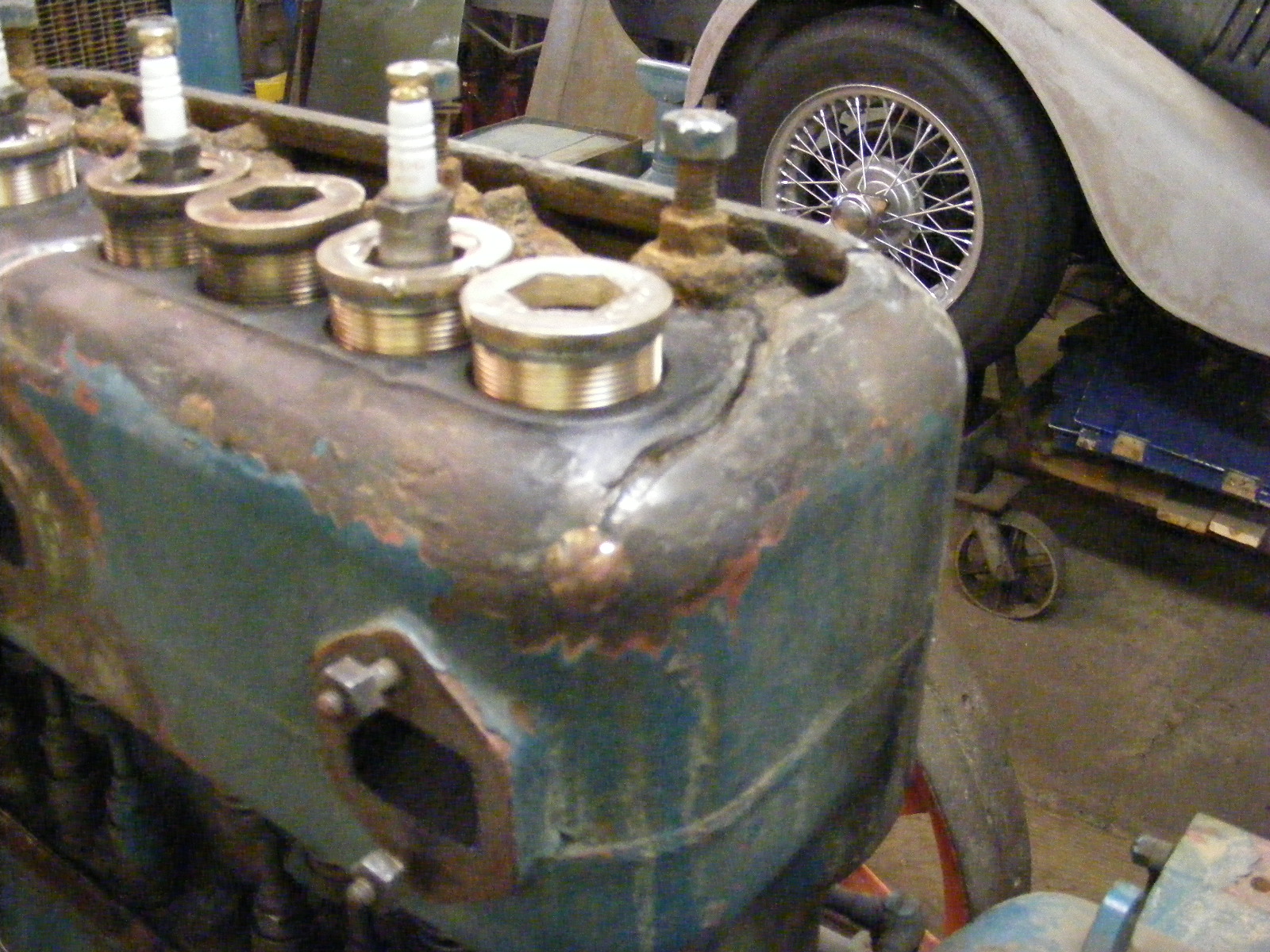

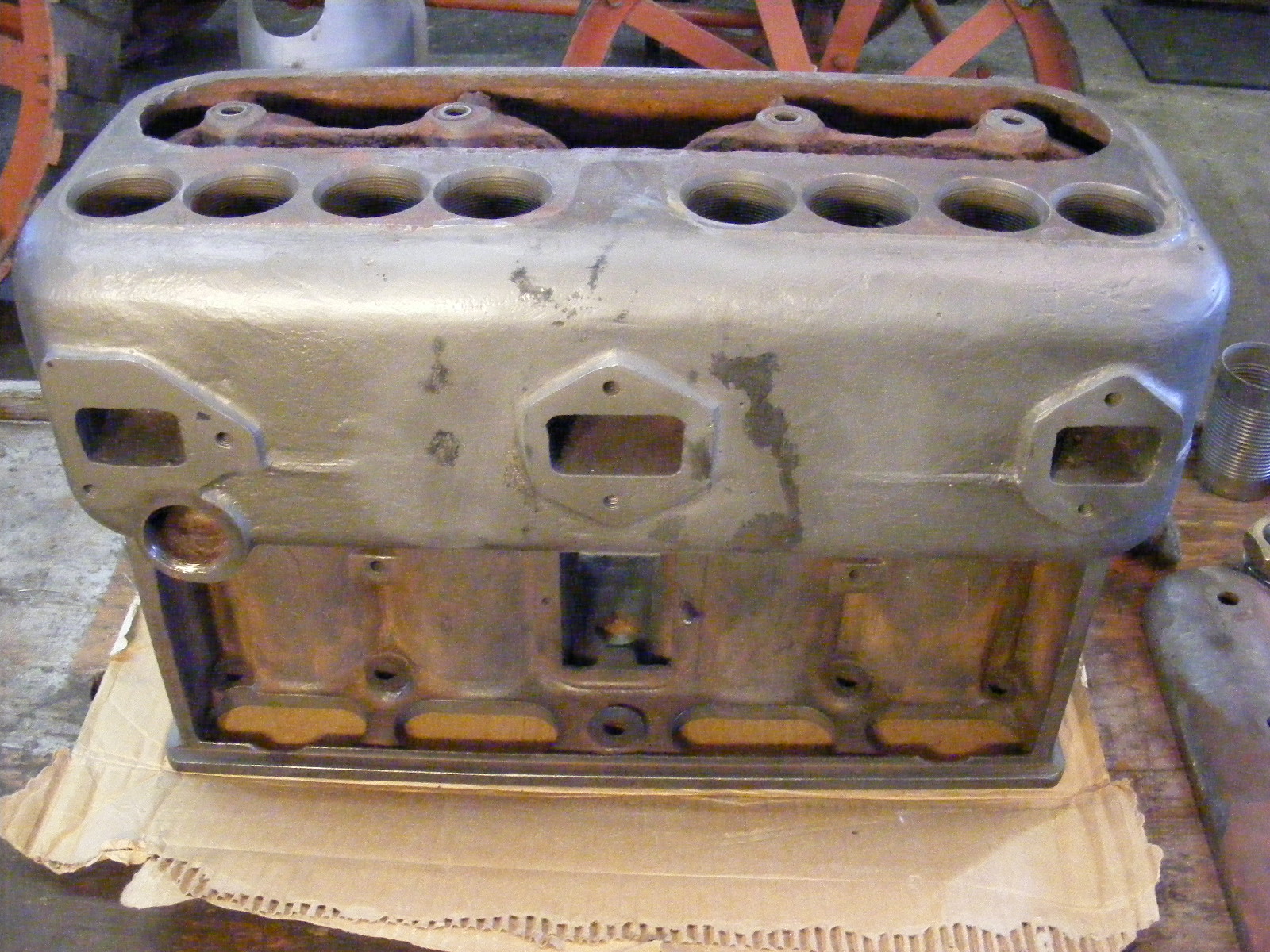

Also, some engines with overhead cams were also headless and you had to access the valves from the bottom of the cylinder bore! On most of these types of engines, the block casting is a separate unit and is bolted on to the crankcase. I have to work on these types of engines sometimes.   Here are a couple of pics of a headless design from a 1923 Fiat I did for a customer.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13692
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Oct 2022 at 9:54am |
Very interesting Phil,,I guess I've been lucky to not ever had to work on one of them,,,, That would be a bear to grind the valves like that, I wen ahead and ordered the wooden ones like ole Steve and Hubert linked, then machine an adapter to marry the shaft to the wood after I decide how long to cut the wood shafts, Many Thanks for all your help,,,!!!
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87563
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Oct 2022 at 12:55pm |
|
Joe, you might just eliminate the wood stick.. Turn a small adapter on the lathe with a small knob on the end that looks like the end of the wood stick, and just PUSH the rubber cup over the knob..... other end just slips into the groove of your grinder shaft and retain with a pin or cotter.
|
|
