Alice Chalmers D grader front end swap
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
LangdonStevenson View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 Jun 2023
Location: Australia
Points: 73 		Post Options Post Options   Thanks (0) Thanks(0)   Quote LangdonStevenson Quote  Post ReplyReply Direct Link To This Post Topic: Alice Chalmers D grader front end swap
    Posted: 15 Jul 2023 at 7:55pm
The next major issue that my grader has after the hydraulic ram problems is the front wheels.  The bearings appear to be flogged out to the point that the wheels flop about of their own accord.  The front axle isn't set up for wheel lean, the bearing/axles must just be toast I think.

I have located a front end with wheel lean function and I am considering doing a swap of it.  Replace the existing front end with the new front end (my grader has the hydraulic piping in place so it shouldn't be too difficult to get that working.

My question is: how hard is it to pull the front end of these machines?  Obviously I'd have to block the front end up etc, but once that's done does anyone know if there are potential problems?
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81264 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2023 at 9:44pm
I have never done the grader, but it appears to be made very similar to most farm tractors.. As you said, the front wheels must be off the ground, then pull the PIN in the CENTER of the axle that connects to the tractor frame... Might be rusted in place or some damage / wear to the pin.. Might need some repair in that area.

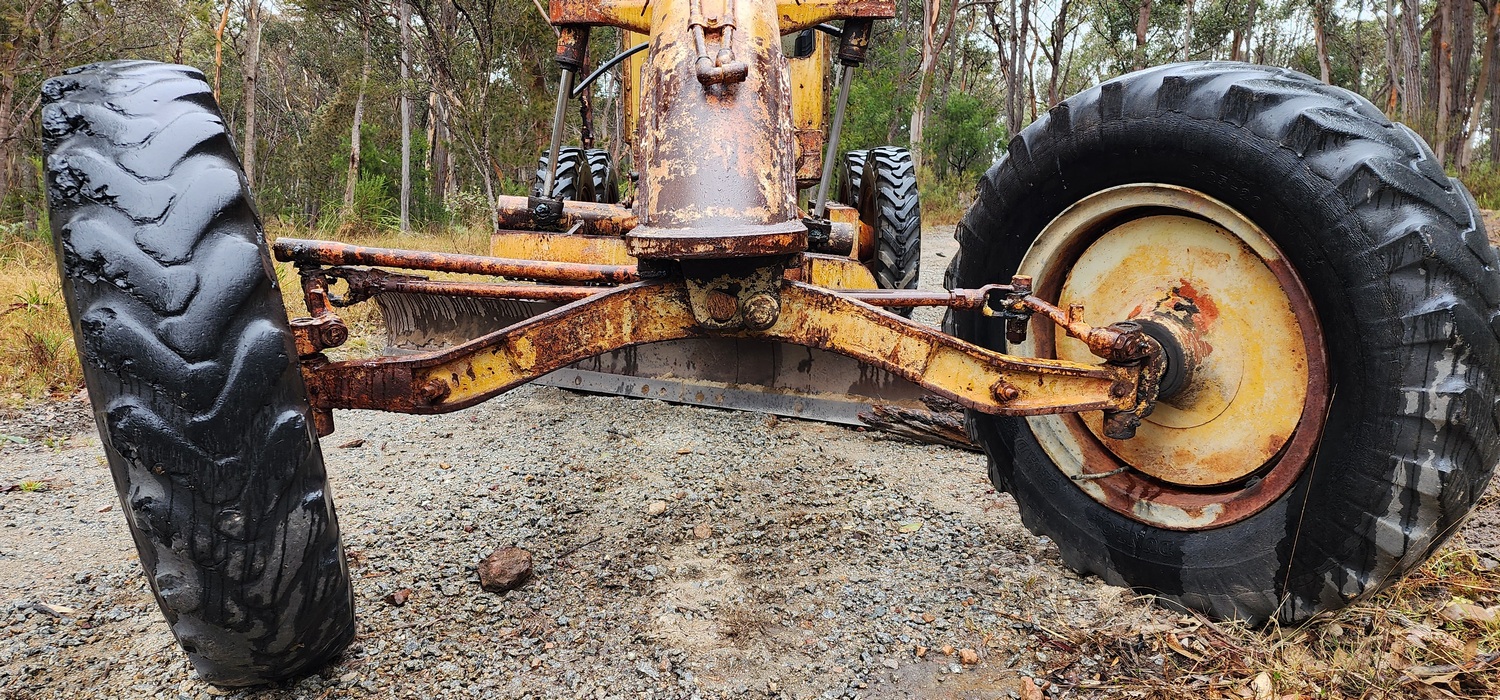

The photo shows the END OF THE AXLE at the tire. The king pin holding the steering knuckle to the axle appears very SHORT.. That would mean  that some WEAR in the BUSHING would contribute to a lot of TIRE LEAN... YOu could have wheel bearing damage also, but i would guess the BUSHING in the end of the AXLE is worn out.
