 Topic: 7020 Torque Specs
Posted: 17 Aug 2023 at 5:29pm |
|
Anybody have the torque specs for the rods and mains on a black belly 7020. Thanks
|
|
'59 D14 '68 170 Diesel '81 7020 40 All Crop
|
 |
|
Sponsored Links
|
|
|
nowaktj
Orange Level
Joined: 13 Dec 2009
Location: Elk River, MN
Points: 735
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Sep 2025 at 1:05pm |

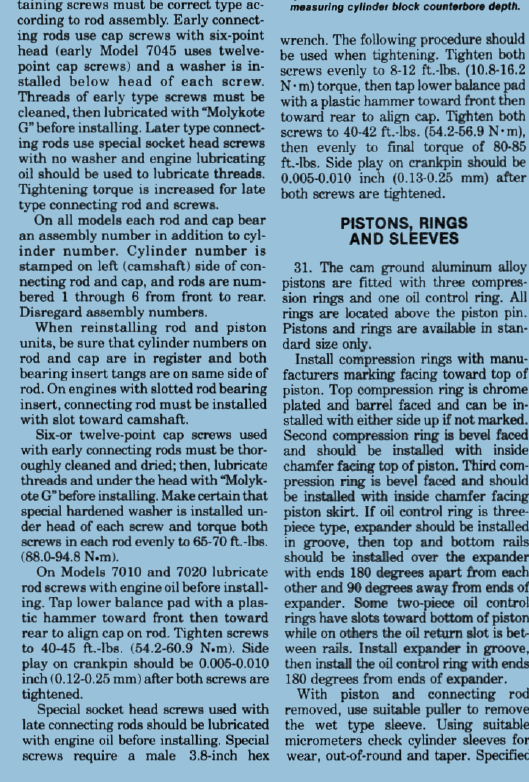

This is what the service manual states but is it accurate? I am also working on a 7020 engine (Out of a M2 combine).
Edited by nowaktj - 24 Sep 2025 at 1:06pm
|
|
D19D, D17D, WD, WC, Snobee, #83 Plow, SC Blade, 14' disk, 400 series planter, B , Terra Tiger, M Dozer w/Baker Blade, TL-12, 42S Grader, G
|
|
nowaktj
Orange Level
Joined: 13 Dec 2009
Location: Elk River, MN
Points: 735
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Sep 2025 at 1:12pm |
I bought new rod bolts from AGCO. I looked at the head of the bolts and they are stamped with "EMP" and "170M".
|
|
D19D, D17D, WD, WC, Snobee, #83 Plow, SC Blade, 14' disk, 400 series planter, B , Terra Tiger, M Dozer w/Baker Blade, TL-12, 42S Grader, G
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 22136
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Sep 2025 at 1:41pm |
|
80-85 ft lbs for 301 rod bolts is toooo much !! Must be an I & T book ?? 45 ft lbs is A-C spec.
Edited by DrAllis - 24 Sep 2025 at 8:26pm
|
|
joe
Bronze Level
Joined: 30 Nov 2009
Location: SW Ontario
Points: 167
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Sep 2025 at 12:06pm |
AGCO shop manual states the main bearing cap as being a Grade 8 bolt to be torqued to 135 ft lbs. The conn rod bolts are 3/8-24 , Grade 100, torqued to 45 ft lbs.
|
|
nowaktj
Orange Level
Joined: 13 Dec 2009
Location: Elk River, MN
Points: 735
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Sep 2025 at 11:30am |

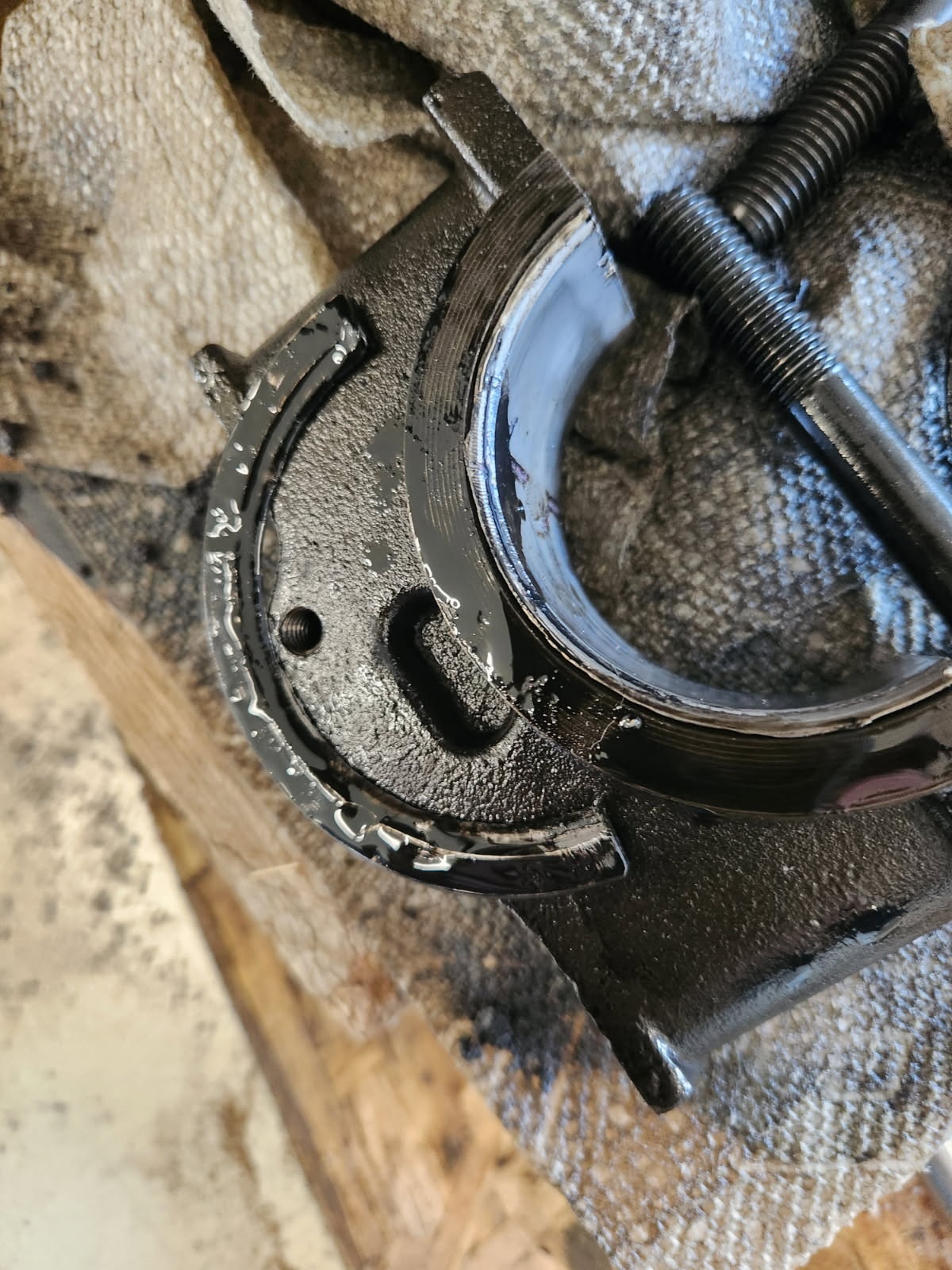

This engine, out of a M2 combine, I plan on putting into a 7020. I noticed excessive crank end play so pulled the pan to discover the clutch side of the #4 bearing has the shoulder wiped off of it.
What would have caused this? I plan on putting in new main bearings but if the crank is cut wrong or ??, I don't want to throw my money away.
|
|
D19D, D17D, WD, WC, Snobee, #83 Plow, SC Blade, 14' disk, 400 series planter, B , Terra Tiger, M Dozer w/Baker Blade, TL-12, 42S Grader, G
|
|
