7016 battery
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8241 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Topic: 7016 battery
    Posted: 21 Apr 2024 at 10:38pm
I have a 7016 Simplicity w/16hp Briggs. The original battery was an odd size that Ford used and is rather expensive. Could never find it as a sealed version so they always ooze out the caps,make a mess and don't last over 2 yrs. What's the answer? I have a 25hp Kohler in a zero that uses the little square 'lawnmower" battery and it's fine but the 7016 has the starter/generator system so I don't know if a "lawnmower'' battery would do. Any ideas?

I have a B1 with a 10hp Briggs and it uses the starter/generator and little battery and does great.


Edited by SteveM C/IL - 21 Apr 2024 at 10:40pm
Back to Top
Sponsored Links


Back to Top
Leadoff View Drop Down
Silver Level
Silver Level
Avatar

Joined: 14 Oct 2016
Location: Calgary
Points: 269 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Leadoff Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2024 at 11:01am
Steve M  C/IL

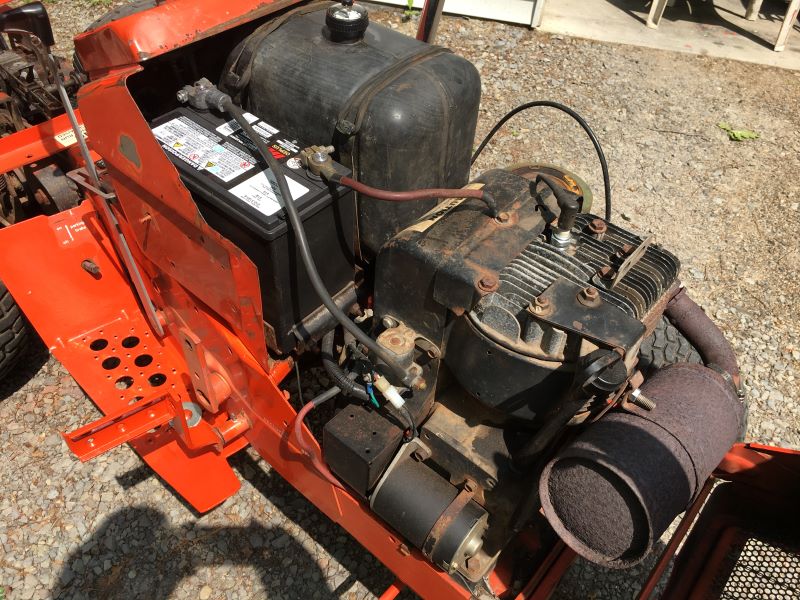

I have an Allis Chalmers 716H, with 51R 12 volt battery, CA 615 amps / CCA 500 amps. The tractor is the Allis Chalmers twin to your Simplicity 7016.  It is also one of the few that was shipped from the factory with a 16 HP Briggs and Stratton engine.  It does not have the belt driven starter/generator earlier models featured.  It is a later model (1978) and has a small 12 volt electric starter, and the battery charging system has an alternator stator assembly mounted inside the flywheel. The battery gets charges up just fine.
1963 D17D Series III. 1965 D15 Series II. 1965 D17 Series IV. 1975 185. 1978 716H. 1979 716H. 1965 780 Harvester/1R&DC. 1957 Model 73 SC 4 Furrow Plow
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8241 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 22 Apr 2024 at 11:08pm
I have a second 7016 (now parts) which has the starter and charging system like that. They put a dip stick in the block because of starter. Kinda hard to retro that. Don't remember if block has some extra bosses for the stator that my other one don't have. I do like your battery.
Starter / generator is a 74, separate starter is a 79


Edited by SteveM C/IL - 22 Apr 2024 at 11:11pm
