 Topic: 3 point question on 7000
Posted: 25 Feb 2019 at 6:29pm |

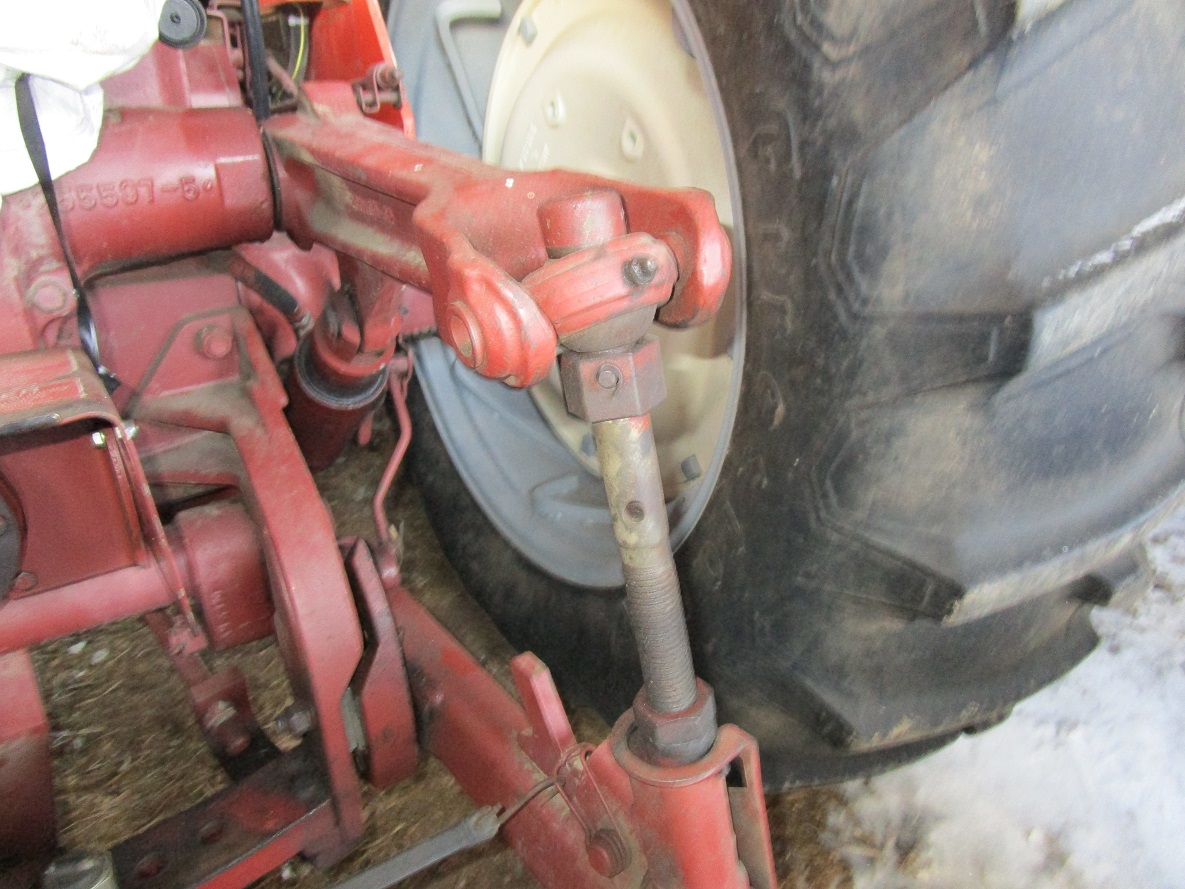

 This is how the 3 point was set up on my 7000. My manual shows the sliding nut on the bottom of the swivel. In the next pic I'm posting I put the nut on the lower side. What it used to hold it in place? A bolt? There was one in it but it was bent and almost sheared off. Any help appreciated.
|
 |
|
Sponsored Links
|
|
|
Ksdigger
Bronze Level
Joined: 28 Jan 2019
Location: Kansas
Points: 59
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Feb 2019 at 6:31pm |
 This is how I think it should be. Maybe both?
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1123
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Feb 2019 at 7:12pm |
|
I'll take a picture of mine tomorrow. I don't want to speculate. lol Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
KJCHRIS
Orange Level
Joined: 21 Dec 2015
Location: WC Iowa
Points: 954
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Feb 2019 at 7:45pm |
|
They used a hardened "picker pin" to hold in place. We took them out when using on 3 pt cultivator and bale carriers. This was on late 200 and 7000.
|
|
AC 200, CAH, AC185D bareback, AC 180D bareback, D17 III, WF. D17 Blackbar grill, NF. D15 SFW. Case 1175 CAH, Bobcat 543B,
|
|
KJCHRIS
Orange Level
Joined: 21 Dec 2015
Location: WC Iowa
Points: 954
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Feb 2019 at 7:48pm |
|
Correction, we moved them to lower hole to allow implement to move more. Your second picture has it installed as from OEM.
|
|
AC 200, CAH, AC185D bareback, AC 180D bareback, D17 III, WF. D17 Blackbar grill, NF. D15 SFW. Case 1175 CAH, Bobcat 543B,
|
|
Ksdigger
Bronze Level
Joined: 28 Jan 2019
Location: Kansas
Points: 59
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Feb 2019 at 7:54pm |
|
KJ, You are saying the second hole down was used as a float position?
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21795
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2019 at 7:26am |
|
That's the way it was designed. In the up position there was zero side to side float. In the lower position it allowed the hitch to float, especially needed with WIDE mounted implements.
|
|
Ksdigger
Bronze Level
Joined: 28 Jan 2019
Location: Kansas
Points: 59
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2019 at 8:27am |
|
Thanks guys for the help.
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1123
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2019 at 4:55pm |
I learned something from this post. Here is how they are set on my 7000. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Pete from IL
Silver Level
Joined: 29 Dec 2009
Location: Beecher IL.
Points: 311
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2019 at 6:08pm |
|
I have the spacer on top on my 7000. It gives you more 3 pt lift height. I needed that when I used to pull a front fold Deere planter. It got the planter units higher off the ground when in transport position.
|
|
